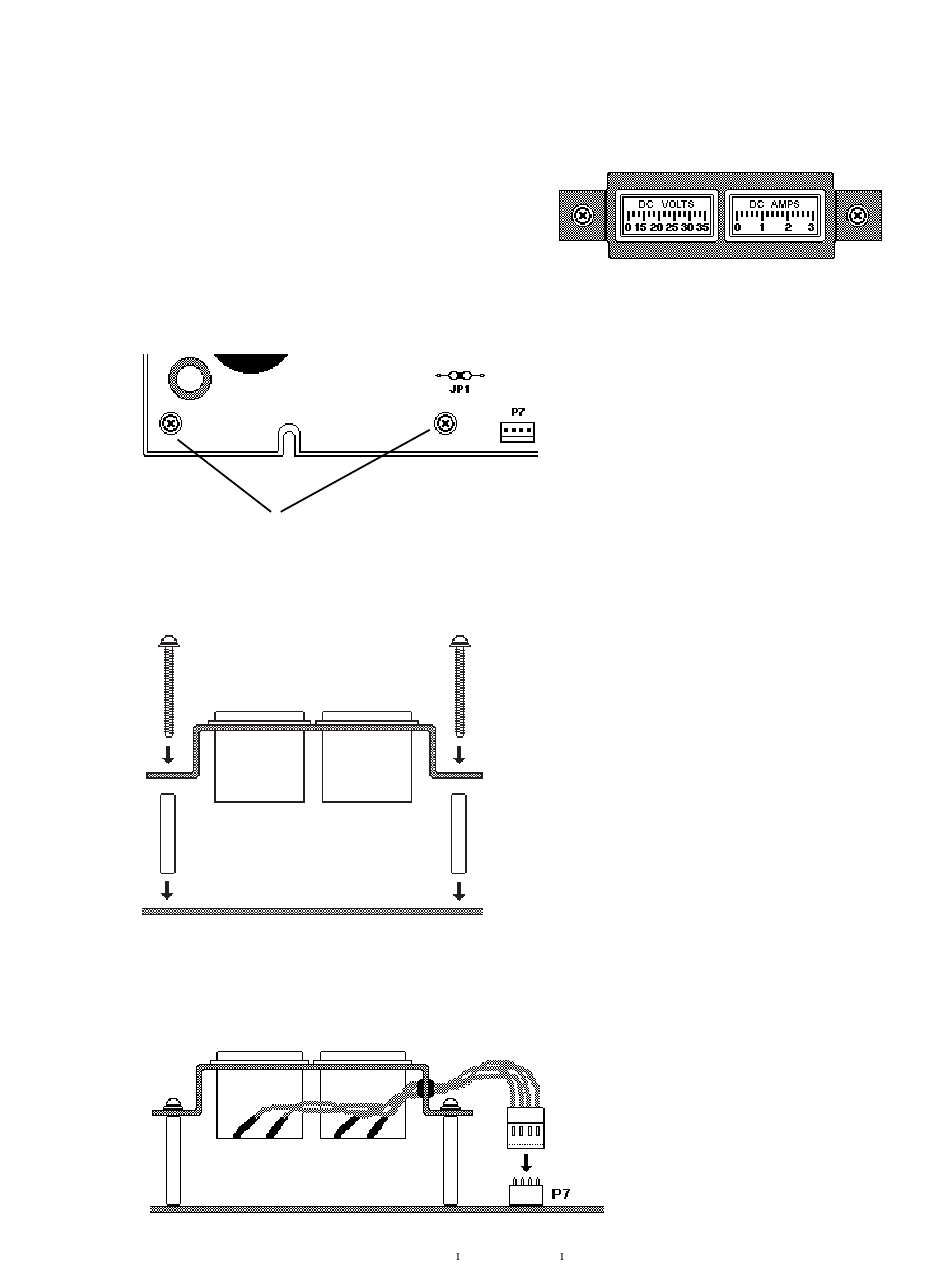

Figure 5-3: Installing an Optional Main Power Meter
The optional Main Power Meter (MPM-2) can be installed
on the Main Power Supply (MPS-24A only). One scale on
the MPM-2 provides an indication in volts of the voltage
across the batteries in the system. A second scale indicates
the battery charging current in amps.
Step 1
Remove the two screws in the bottom left-hand corner of the MPS-24A.
46
Step 2
Thread the two standoffs provided into the
holes vacated by the two screws just re-
moved. Place the MPM-2 assembly over the
standoffs and secure with the two original
screws
S5000 15583 Rev. 6/10/96 P/N 15583:
Step 3
Complete the installation of the MPM-2
by plugging the female connector on the
meter cable into Plug P7 on the MPS-
24A.
