Section Five:
The Power Supplies
CPU
(Bottom
View)
Power Ribbon
(71085)
Connects to
P3 on the MPS
MPS Bell Power Harness
(71093)
Main Power Harness
Blue to Bell Power (+)
(71086)
Black to Bell Power (-)
to P2 on the MPS

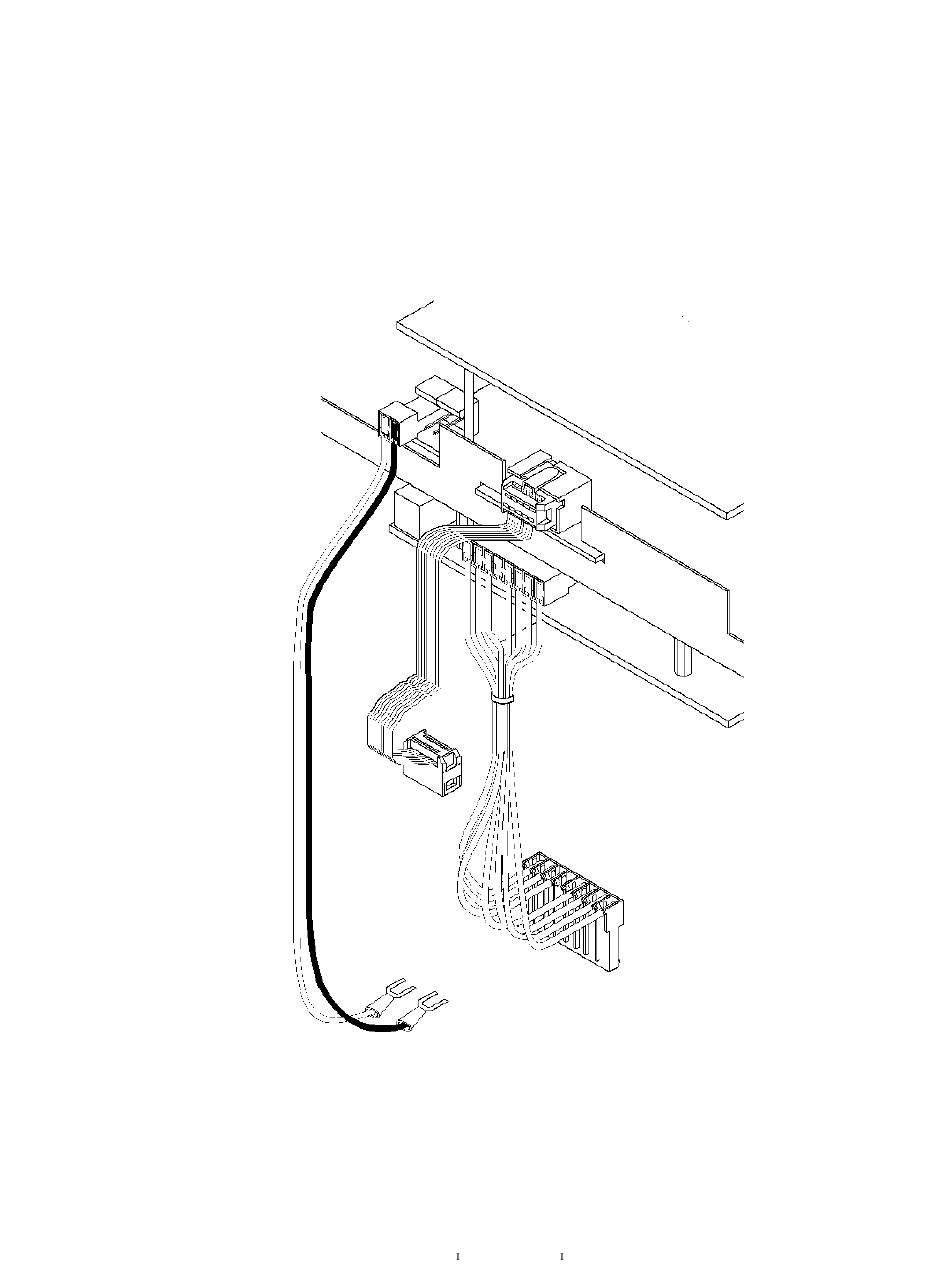

Three cables complete the electrical connection
between the CPU and the Main Power Supply.
42
S5000 15583 Rev.
6/10/96 P/N 15583:
