Auxiliary Bell
Power Harness
Black wire
Blue wire
For the first or only AVPS-24 in the system,
connect the AVPS-24 Trouble Cable to the
power supply (P5 on the MPS-24A; to P4
on the MPS-24B). Otherwise, connect as
illustrated below.
Earth Ground In
Connect to chassis or Earth
Ground Terminal on MPS.
Secondary Power
(24 VDC Batteries)
MPS-24A: TB2-1 (+) and TB2-2 (-)
MPS-24B: TB3-1 (+) and TB3-2 (-)
For multiple
Audio Visual
Power Supplies
To P5 on MPS-24A; or
to P4 on the MPS-24B.

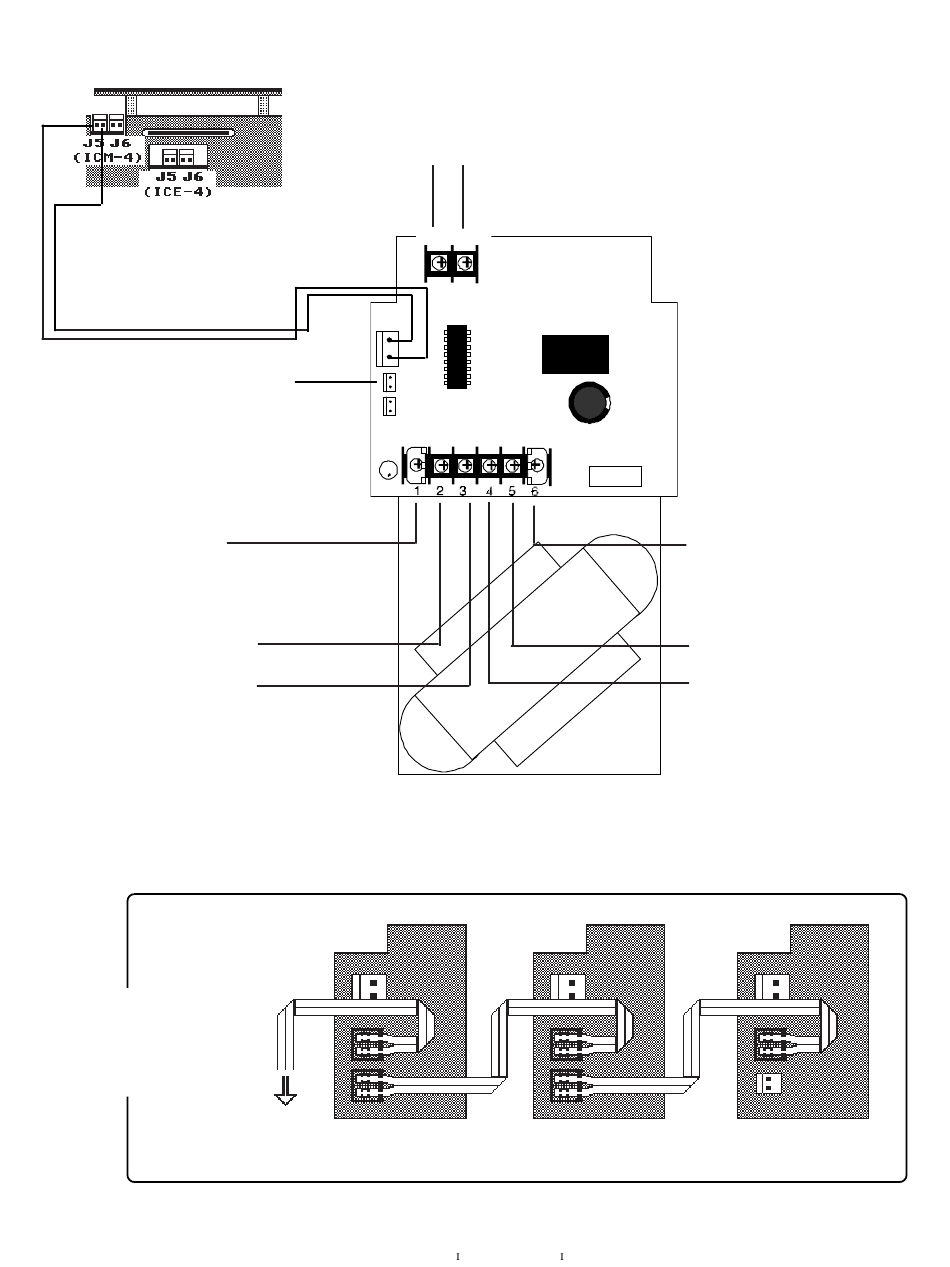

Figure 5-7: Field Wiring the Optional AVPS-24
50
P3
Trouble
LED
+
-
Connect to:
First AVPS-24
S5000 15583 Rev.
24 VDC Special Purpose Power
Unfiltered, unregulated, power-limited (3.0 amps max). Use the Aux-
iliary Bell Power Harness to provide power to indicating circuit mod-
ules (connect to J5 on ICM-4 or ICE-4). Use TB2 terminals for power
circuit run to CMX-1 Control Modules (AIM-200 required).
+ -
1 2
TB2
TB1
6/10/96 P/N 15583:
AC Power Requirements
The AC power requirement for
the AVPS-24 is 120 VAC, 50/60
Hz, 1.0 amps and for the AVPS-
24E is 220/240 VAC, 50/60 Hz,
0.5 amps.
Earth Ground Out
Connect to TB1 Terminal 1
on next AVPS-24.
Hot
Neutral
Primary Power
Connect to:
MPS-24A: TB1-4 (Neutral) and TB1-6 (Hot)
MPS-24B: TB1-3 (Neutral) and TB1-4 (Hot).
Last AVPS-24
