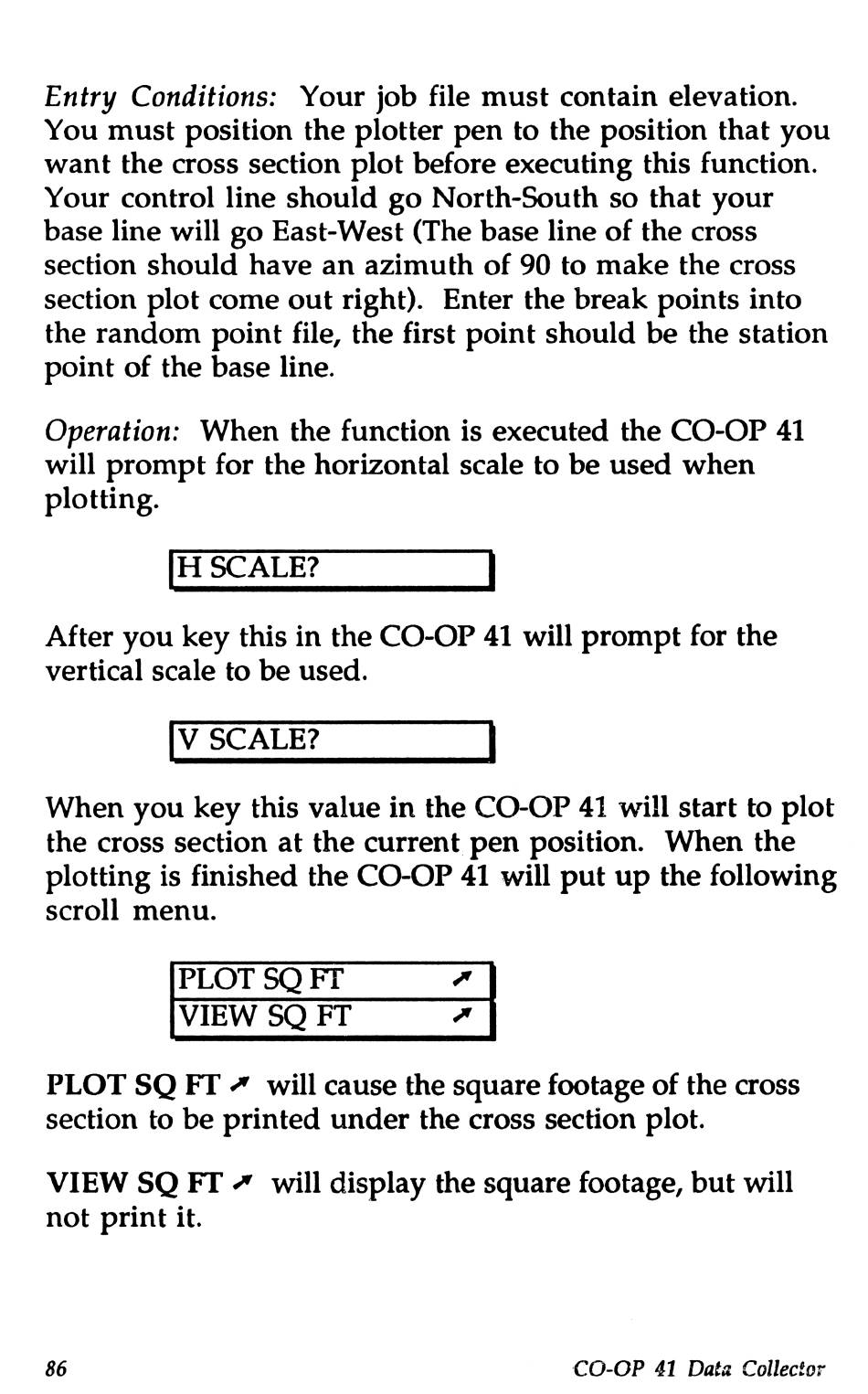

Entry Conditions: Your job file must contain elevation.
You must position the plotter pen to the position that you
want the cross section plot before executing this function.
Your control line should go North-South so that your
base line will go East-West (The base line of the cross
section should have an azimuth of 90 to make the cross
section plot come out right). Enter the break points into
the random point file, the first point should be the station
point of the base line.
Operation: When the function is executed the CO-OP 41
will prompt for the horizontal scale to be used when
plotting.
[H SCALE? |
After you key this in the CO-OP 41 will promptfor the
vertical scale to be used.
|V SCALE? |
When you key this value in the CO-OP 41 will start to plot
the cross section at the current pen position. When the
plotting is finished the CO-OP 41 will put up the following
scroll menu.
PLOT SQ FT =
VIEW SQ FT -
PLOT SQ FT ~ will cause the square footage of the cross
section to be printed under the cross section plot.
VIEW SQ FT ~ will display the square footage, but will
not printit.
86 CO-OP 41 Data Collector
