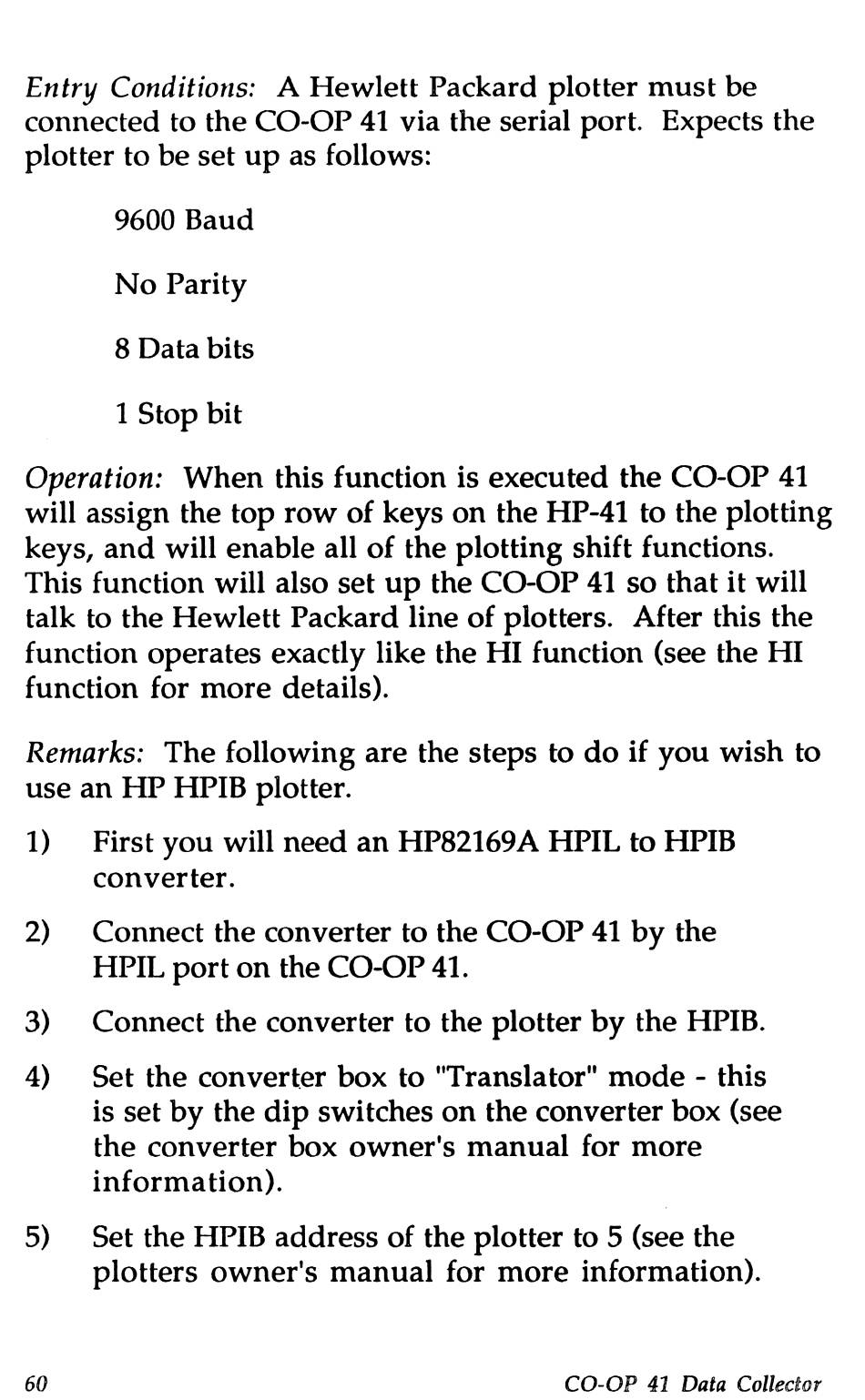

Tripod Data Systems CO-OP 41 User Manual page 68

Entry Conditions: A Hewlett Packard plotter must be
connected to the CO-OP 41 via the serial port. Expects the
plotter to be set up as follows:
9600 Baud
No Parity
8 Data bits
1 Stop bit
Operation: When this function is executed the CO-OP 41
will assign the top row of keys on the HP-41 to the plotting
keys, and will enable all of the plotting shift functions.
This function will also set up the CO-OP 41 so that it will
talk to the Hewlett Packard line of plotters. After this the
function operates exactly like the HI function (see the HI
function for more details).
Remarks: The following are the steps to do if you wish to
use an HP HPIB plotter.
1) First you will need an HP82169A HPIL to HPIB
converter.
2) Connect the converter to the CO-OP 41 by the
HPIL port on the CO-OP 41.
3) Connect the converter to the plotter by the HPIB.
4) Set the converter box to "Translator" mode - this
is set by the dip switches on the converter box (see
the converter box owner's manual for more
information).
5) Set the HPIB address of the plotter to 5 (see the
plotters owner's manual for more information).
60 CO-OP 41 Data Collector
