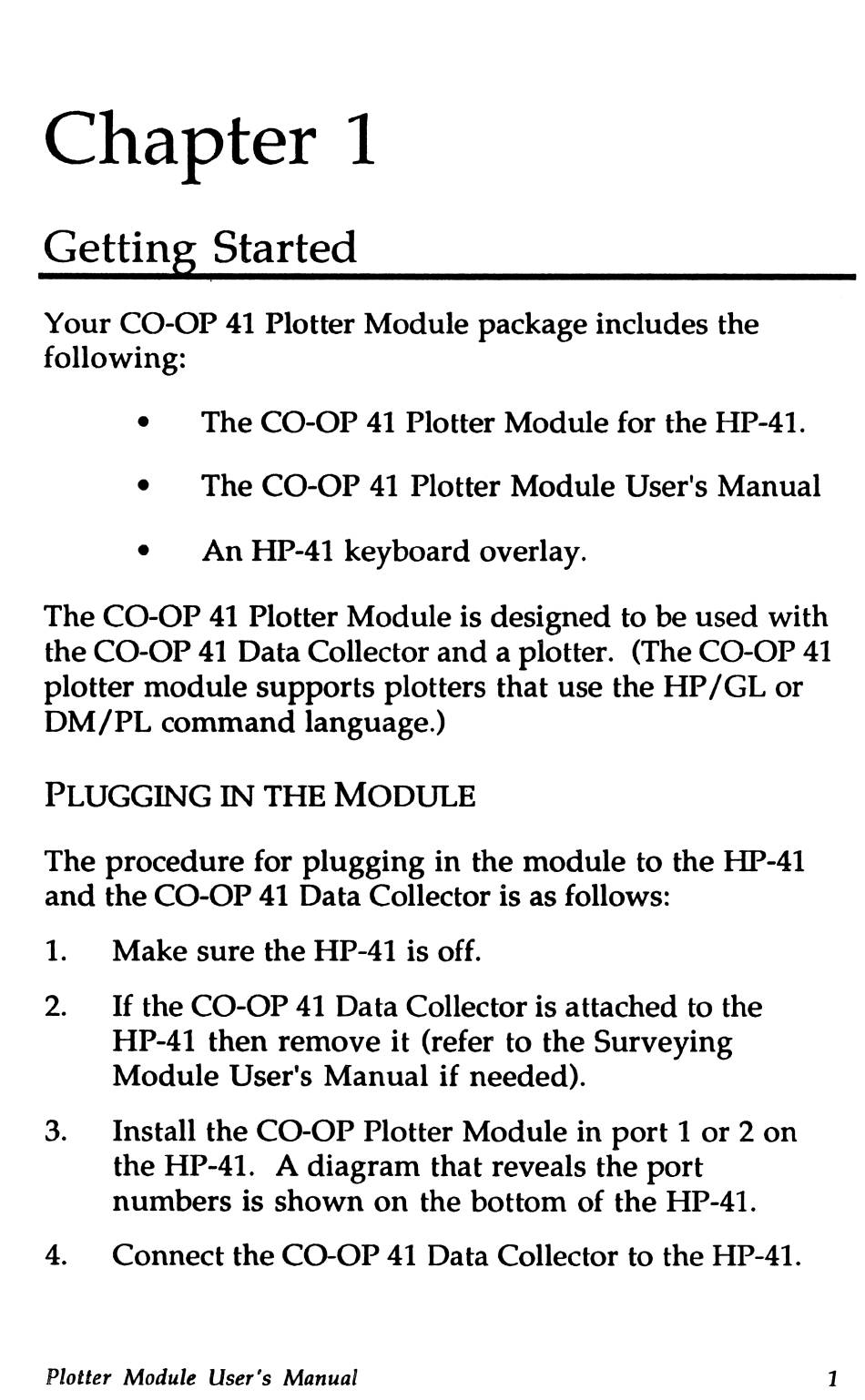

Chapter 1
Getting Started
Your CO-OP 41 Plotter Module package includes the
following:
oe The CO-OP 41 Plotter Module for the HP-41.
e¢ The CO-OP 41 Plotter Module User's Manual
* An HP-41 keyboard overlay.
The CO-OP 41 Plotter Module is designed to be used with
the CO-OP 41 Data Collector and a plotter. (The CO-OP 41
plotter module supports plotters that use the HP/GL or
DM/PL command language.)
PLUGGING IN THE MODULE
The procedure for plugging in the module to the HP-41
and the CO-OP 41 Data Collectoris as follows:
1. Make sure the HP-41 is off.
2. If the CO-OP 41 Data Collector is attached to the
HP-41 then remove it (refer to the Surveying
Module User's Manual if needed).
3. Install the CO-OP Plotter Module in port 1 or 2 on
the HP-41. A diagram that reveals the port
numbers is shown on the bottom of the HP-41.
4. Connect the CO-OP 41 Data Collector to the HP-41.
Plotter Module User's Manual 1
