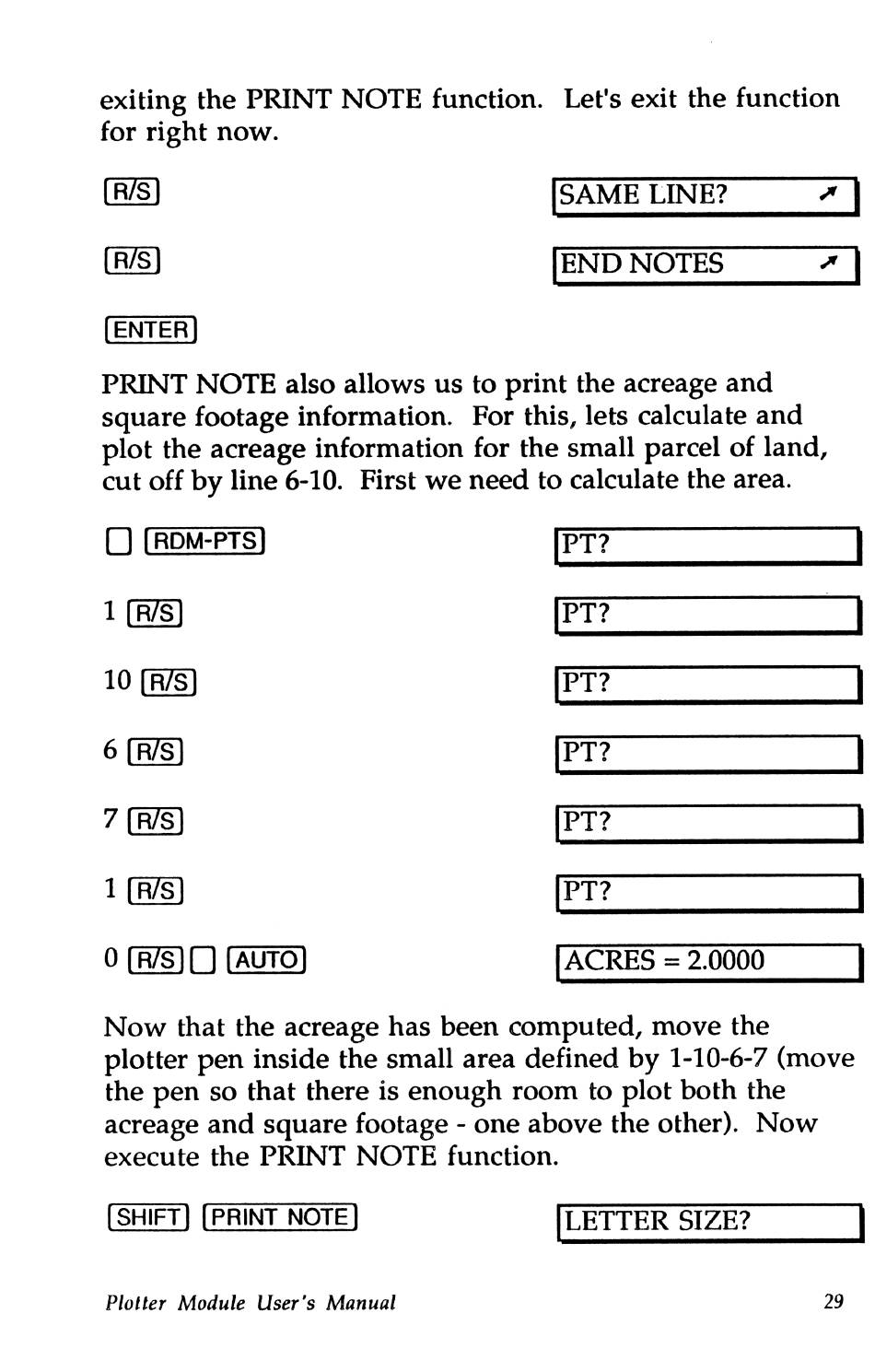

Tripod Data Systems CO-OP 41 User Manual page 37

exiting the PRINT NOTE function. Let's exit the function
for right now.
[SAME LINE? 7]
[END NOTES ~]
PRINT NOTE also allows us to print the acreage and
square footage information. For this,lets calculate and
plot the acreage information for the small parcel of land,
cut off by line 6-10. First we need to calculate the area.
0 [PT?
1
[PT?
]
10
[PT?
6
[PT?
7
[PT?
|
1
[PT?
0
Bs)
[ACRES = 2.0000
Now that the acreage has been computed, move the
plotter pen inside the small area defined by 1-10-6-7 (move
the pen so that there is enough room to plot both the
acreage and square footage - one above the other). Now
execute the PRINT NOTE function.
[SHIFT] (PRINT NOTE] [LETTER SIZE? |
Plotter Module User's Manual 29
