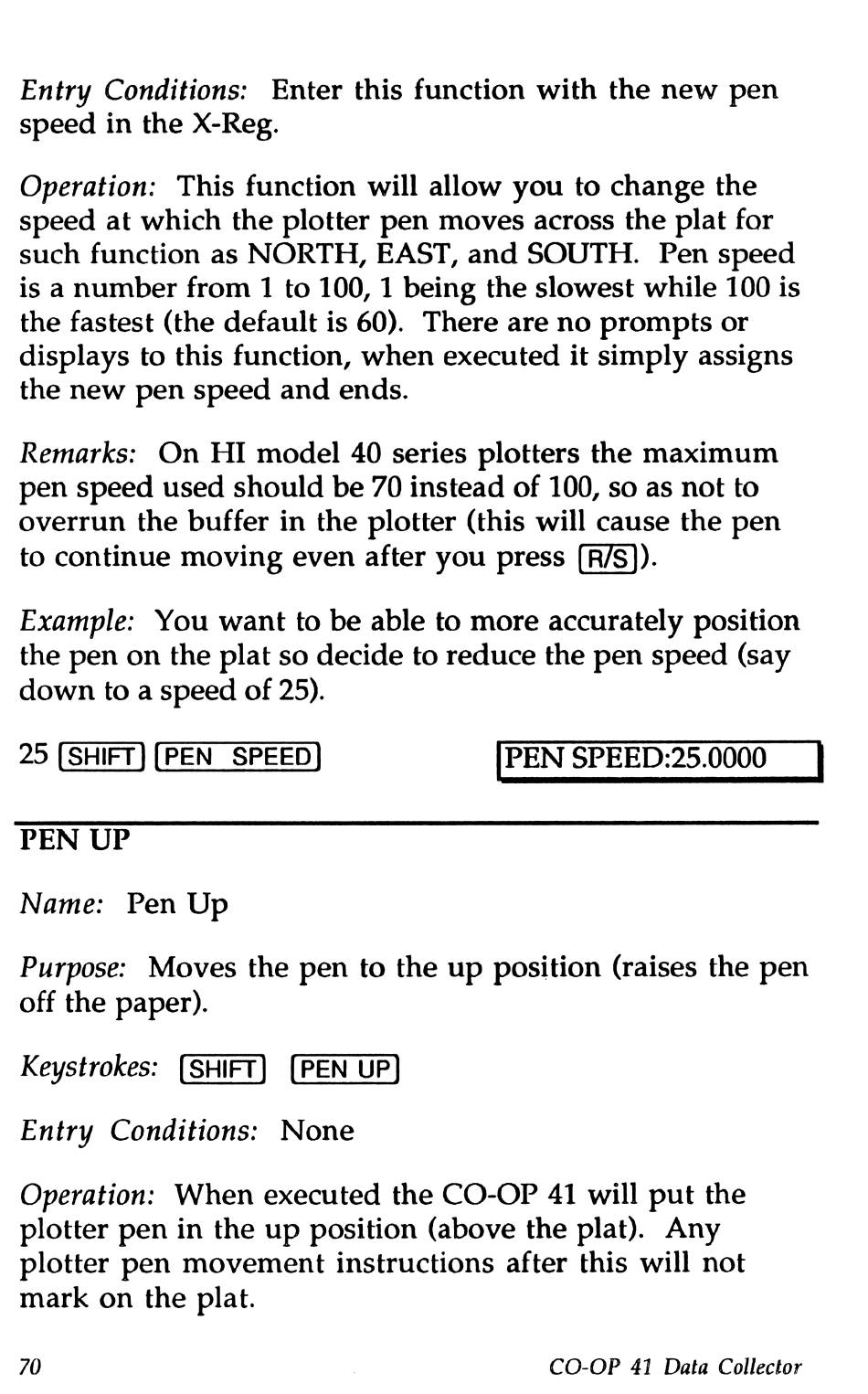

Entry Conditions: Enter this function with the new pen
speed in the X-Reg.
Operation: This function will allow you to change the
speed at which the plotter pen moves across the plat for
such function as NORTH, EAST, and SOUTH. Pen speed
is a number from 1 to 100, 1 being the slowest while 100 is
the fastest (the default is 60). There are no prompts or
displays to this function, when executed it simply assigns
the new pen speed and ends.
Remarks: On HI model 40 series plotters the maximum
pen speed used should be 70 instead of 100, so as not to
overrun the buffer in the plotter (this will cause the pen
to continue moving even after you press (R/S)).
Example: You want to be able to more accurately position
the pen on the plat so decide to reduce the pen speed (say
down to a speed of 25).
25 (SHIFT) [PEN SPEED) [PEN SPEED:25.0000 |
PEN UP
Name: Pen Up
Purpose: Moves the pen to the up position (raises the pen
off the paper).
Keystrokes: [SHIFT] (PEN UP
Entry Conditions: None
Operation: When executed the CO-OP 41 will put the
plotter pen in the up position (above the plat). Any
plotter pen movement instructions after this will not
mark on the plat.
70 CO-OP 41 Data Collector
