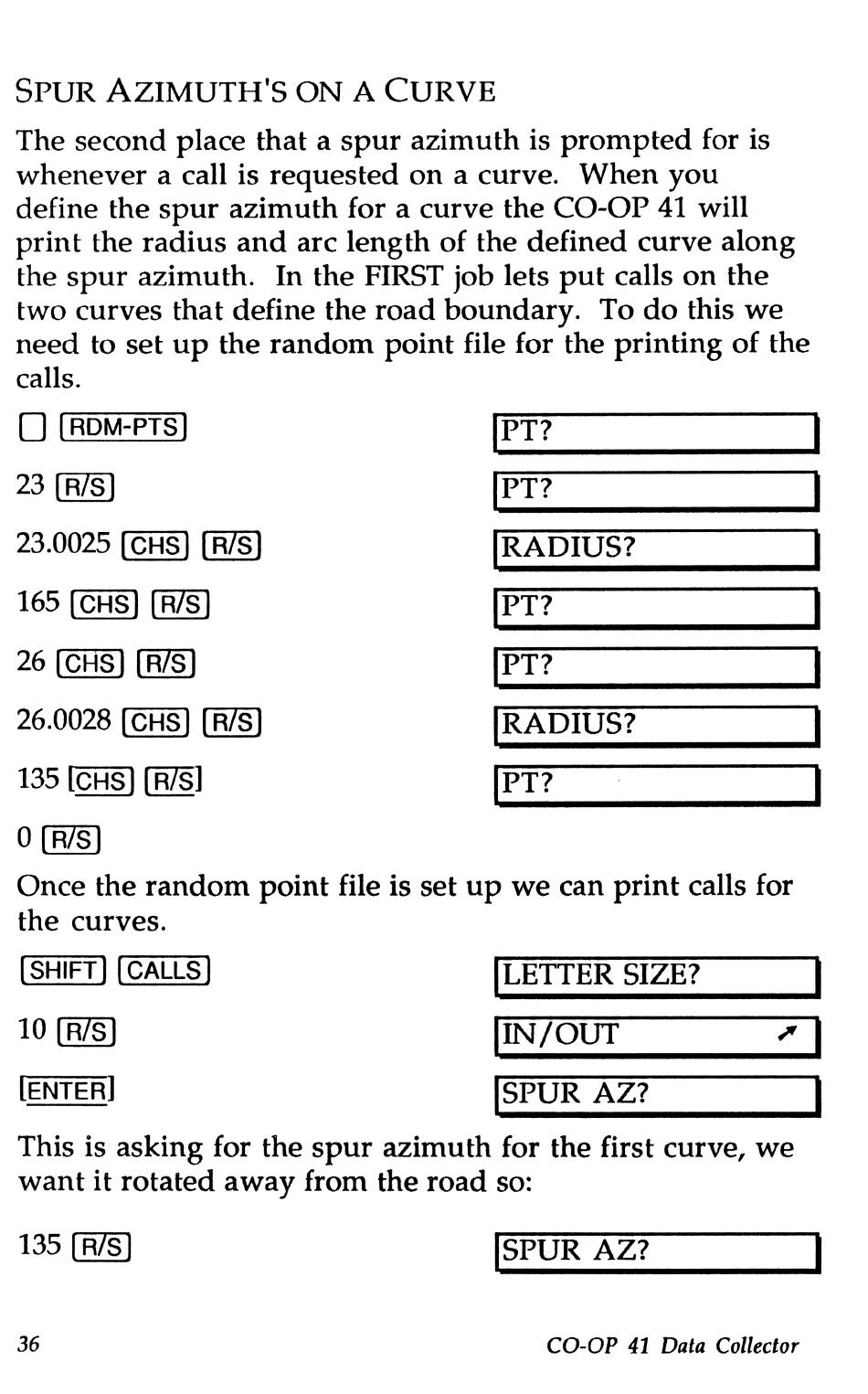

SPUR AZIMUTH'S ON A CURVE
The second place that a spur azimuth is prompted for is
whenever a call is requested on a curve. When you
define the spur azimuth for a curve the CO-OP 41 will
print the radius and arc length of the defined curve along
the spur azimuth. In the FIRST job lets put calls on the
two curves that define the road boundary. To do this we
need to set up the random pointfile for the printing of the
calls.
0 [PT? |
23
[PT?
|
23.0025 [RADIUS? 1
165
[PT?
|
26
[PT?
|
26.0028
[RADIUS?
|
135 [CHS] [R/S]
[PT?
|
0
Once the random pointfile is set up we can print calls for
the curves.
[LETTER SIZE?
10 [IN/OUT "1
[ENTER] [SPUR AZ? l
This is asking for the spur azimuth for the first curve, we
wantit rotated away from the road so:
135 [SPUR AZ? |
36 CO-OP 41 Data Collector
