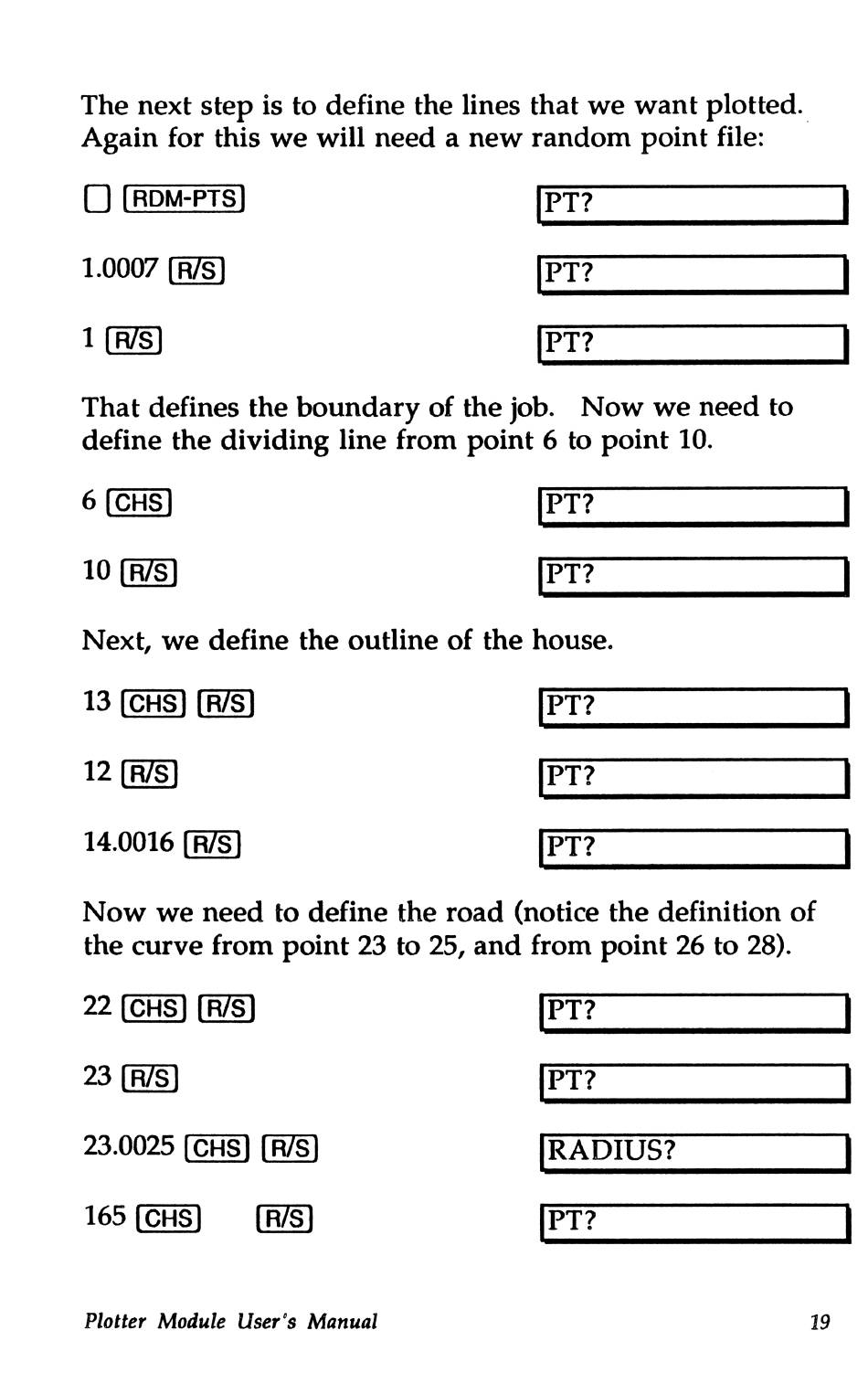

The next step is to define the lines that we want plotted.
Again for this we will need a new random pointfile:
0
1.0007
1 (RS)
That defines the boundary of the job. Now we need to
define the dividing line from point 6 to point 10.
6 [CHS]
10 (R/S)
[PT?
[PT?
[PT?
[PT?
[PT?
Next, we define the outline of the house.
13
12 (RIS)
14.0016
[P17
[PT?
[PT?
Now we need to define the road (notice the definition of
the curve from point 23 to 25, and from point 26 to 28).
22 [R/S]
23
23.0025
165
Plotter Module User's Manual
[PT?
[PT?
[RADIUS?
[PT?
19
