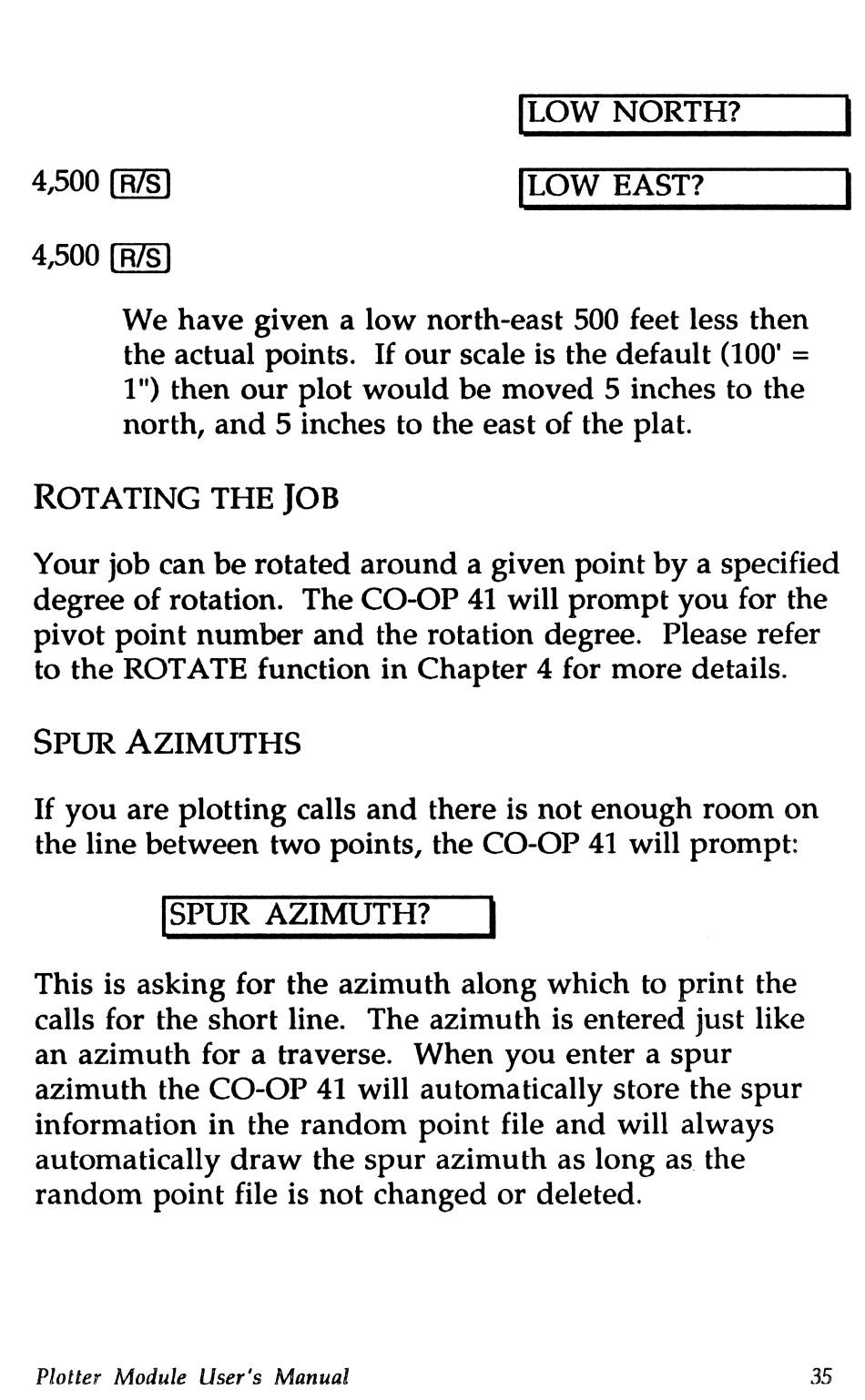

[LOW NORTH?
4,500
We have given a low north-east 500 feet less then
the actual points. If our scale is the default (100' =
1") then our plot would be moved 5 inches to the
north, and 5 inches to the east of the plat.
ROTATING THE JOB
Your job can be rotated around a given point by a specified
degree of rotation. The CO-OP 41 will prompt you for the
pivot point number and the rotation degree. Please refer
to the ROTATE function in Chapter 4 for more details.
SPUR AZIMUTHS
If you are plotting calls and there is not enough room on
the line between two points, the CO-OP 41 will prompt:
[SPUR AZIMUTH? |
This is asking for the azimuth along which to print the
calls for the short line. The azimuth is entered just like
an azimuth for a traverse. When you enter a spur
azimuth the CO-OP 41 will automatically store the spur
information in the random point file and will always
automatically draw the spur azimuth as long asthe
random point file is not changed or deleted.
Plotter Module User's Manual 35
