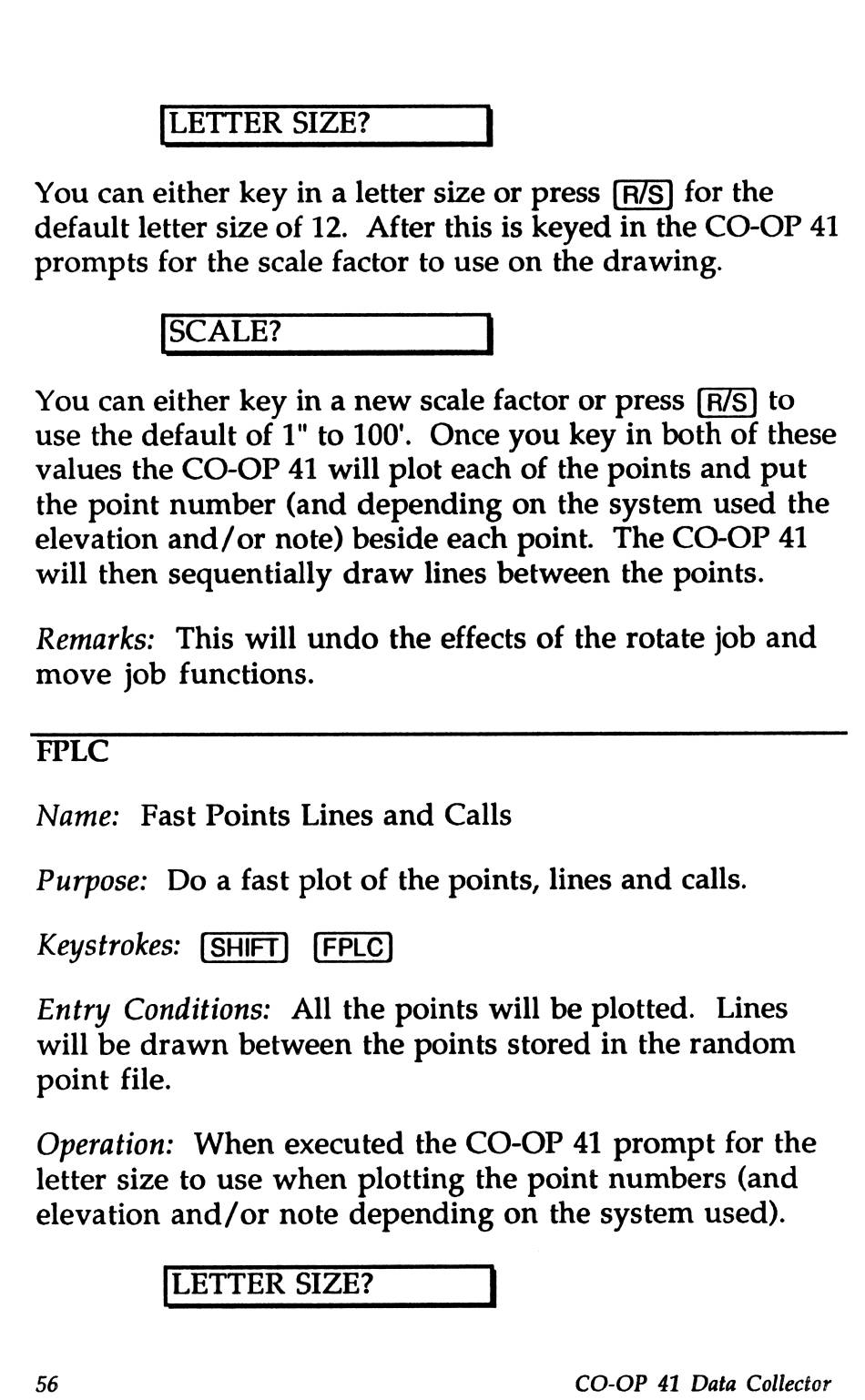

Tripod Data Systems CO-OP 41 User Manual page 64

[LETTER SIZE? |
You can either key in a letter size or press for the
default letter size of 12. After this is keyed in the CO-OP 41
prompts for the scale factor to use on the drawing.
[SCALE?
You can either key in a new scale factor or press to
use the default of 1" to 100'. Once you key in both of these
values the CO-OP 41 will plot each of the points and put
the point number (and depending on the system used the
elevation and/or note) beside each point. The CO-OP 41
will then sequentially draw lines between the points.
Remarks: This will undo the effects of the rotate job and
move job functions.
FPLC
Name: Fast Points Lines and Calls
Purpose: Do a fast plot of the points, lines and calls.
Keystrokes: [SHIFT] (FPLC
Entry Conditions: All the points will be plotted. Lines
will be drawn between the points stored in the random
point file.
Operation: When executed the CO-OP 41 prompt for the
letter size to use when plotting the point numbers (and
elevation and/or note depending on the system used).
[LETTER SIZE? |
56 CO-OP 41 Data Collector
