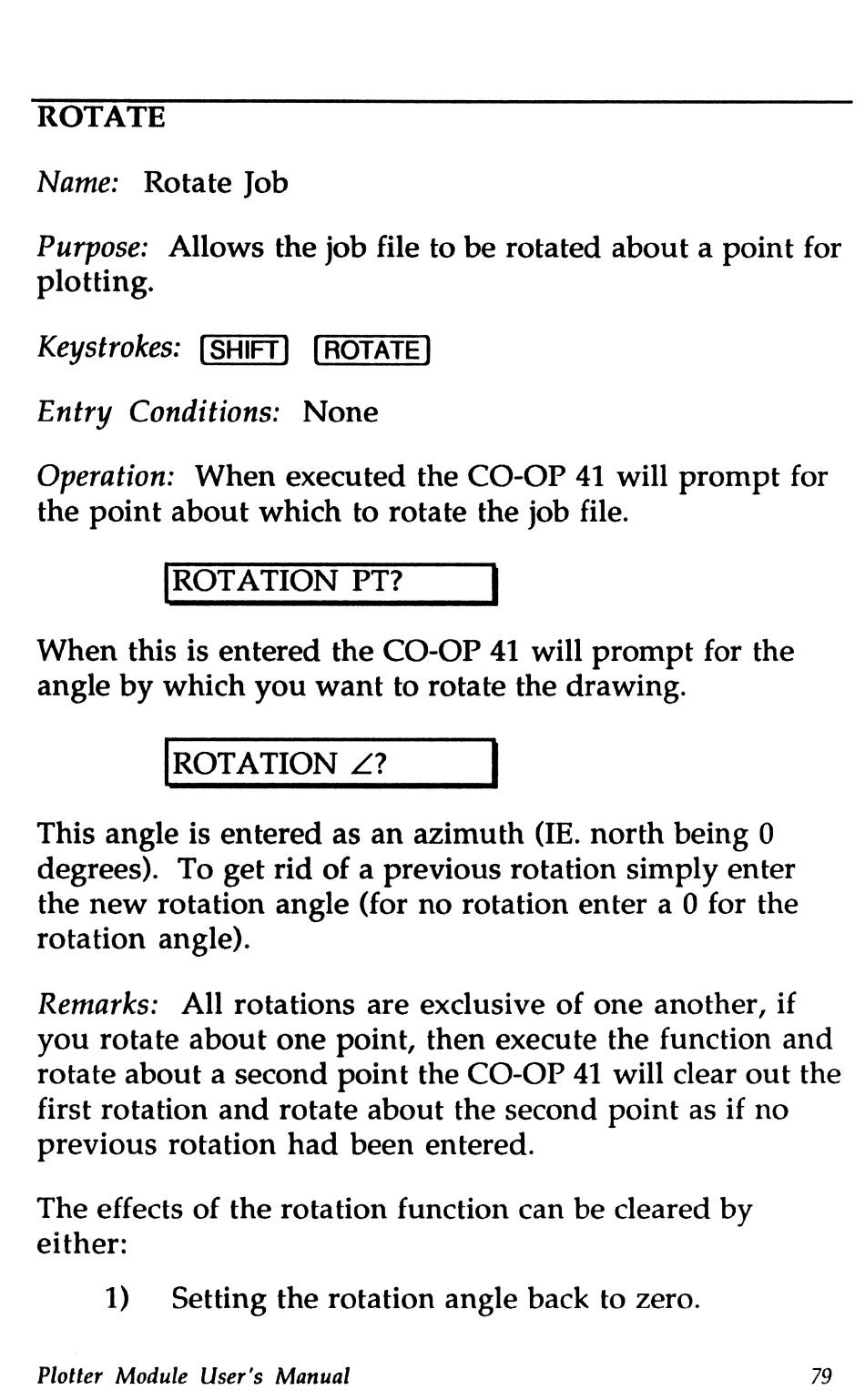

ROTATE
Name: Rotate Job
Purpose: Allows the job file to be rotated about a point for
plotting.
Keystrokes: [SHIFT] [ROTATE]
Entry Conditions: None
Operation: When executed the CO-OP 41 will prompt for
the point about which to rotate the job file.
[ROTATION PT? ]
When this is entered the CO-OP 41 will prompt for the
angle by which you want to rotate the drawing.
ROTATION /? |
This angle is entered as an azimuth (IE. north being 0
degrees). To get rid of a previous rotation simply enter
the new rotation angle (for no rotation enter a 0 for the
rotation angle).
Remarks: All rotations are exclusive of one another, if
you rotate about one point, then execute the function and
rotate about a second point the CO-OP 41 will clear out the
first rotation and rotate about the second point as if no
previous rotation had been entered.
The effects of the rotation function can be cleared by
either:
1) Setting the rotation angle back to zero.
