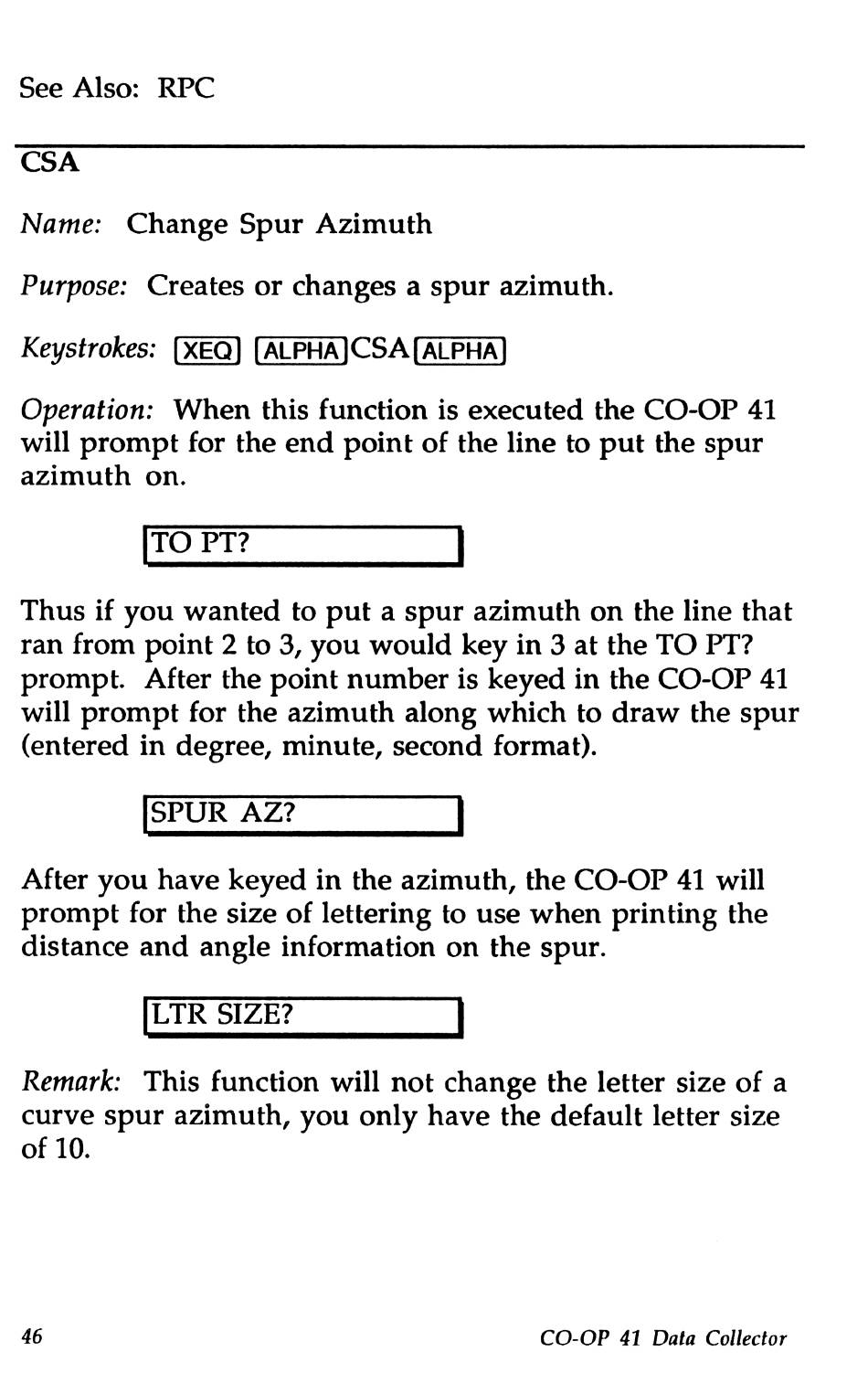

Tripod Data Systems CO-OP 41 User Manual page 54

See Also: RPC
CSA
Name: Change Spur Azimuth
Purpose: Creates or changes a spur azimuth.
Keystrokes: [ALPHA]CSA [ALPHA]
Operation: When this function is executed the CO-OP 41
will prompt for the end point of the line to put the spur
azimuth on.
[TO PT? |
Thus if you wanted to put a spur azimuth on the line that
ran from point 2 to 3, you would key in 3 at the TO PT?
prompt. After the point numberis keyed in the CO-OP 41
will prompt for the azimuth along which to draw the spur
(entered in degree, minute, second format).
[SPUR AZ?
After you have keyed in the azimuth, the CO-OP 41 will
prompt for the size of lettering to use when printing the
distance and angle information on the spur.
[LTR SIZE?
Remark: This function will not change the letter size of a
curve spur azimuth, you only have the default letter size
of 10.
46 CO-OP 41 Data Collector
