Introduction
This section covers the following:
•
About the ShareLink Pro 2500
• Features
About the ShareLink Pro 2500
The ShareLink Pro 2500 is a 4K dual screen wireless presentation system that enables anyone to present
wireless or wired content from their computers, tablets, or smartphones onto a display for easy collaboration.
It features streaming technology that supports simultaneous display of up to four content sources, including
an HDMI‑connected device. The HDMI input supports wired connections from any connected source in the
room. To support a wide range of environments, the ShareLink Pro 2500 has collaboration and moderator
modes that facilitate both open and restrictive environments.
The ShareLink Pro 2500 provides easy integration of AV and mobile devices into meeting, huddle,
collaboration, and presentation spaces.
Laptop
Facility/Room
Wireless Access Point
Smartphone
Tablet

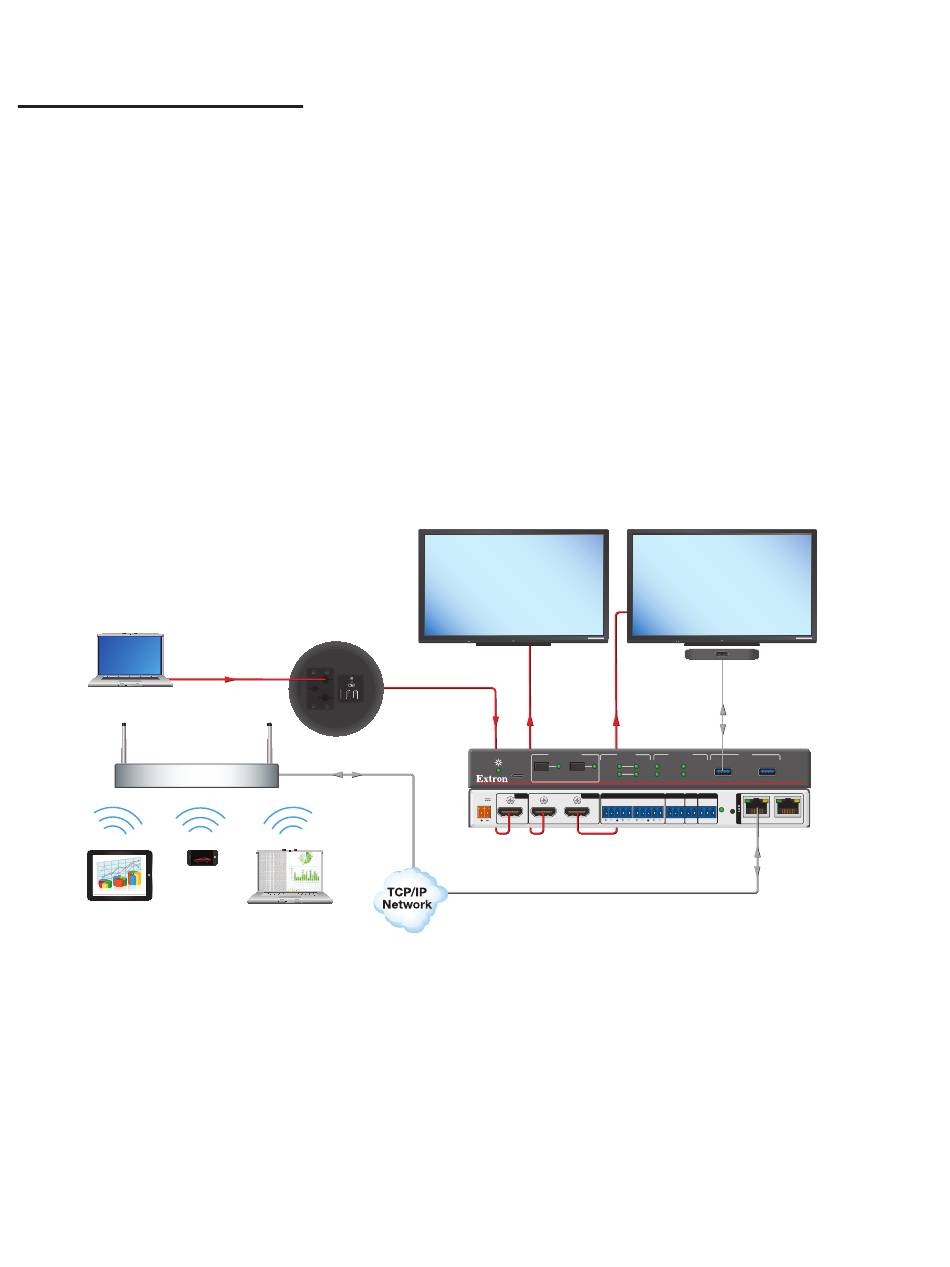

Figure 1. ShareLink Pro 2500 Application Diagram
Extron
Cable Cubby 100
Cable Access Enclosure
HDMI
Ethernet
Laptop
Display
MODEL 80
FLAT PANEL
HDMI HDMI/CEC
HDMI INPUT
CONFIG
WINDOW PASS-THROUGH
POWER INPUT OUTPUT
12V 1 2
--A MAX
HDMI HDMI/CEC HDMI/CEC
Extron
ShareLink Pro 2500
4K Dual Screen Wireless Presentation System
Display
MODEL 80
FLAT PANEL
VideoBar
(Camera/Mic/
Speakers)
HDMI/CEC USB
INPUT OUTPUT USB
HDMI DECODER SS 5G
1 2
900mA 900mA
SIGNAL HD WIN HD PASS
STANDBY
HDCP DECODER
SCREEN
ShareLink Pro 2500
AUDIO COM IR/S DIG I/O
LINE IN LINE OUT
RESET
L R L R
A/PoE+
Tx Rx G S G 1 2 G
Ethernet
