Installation Notes for PMK 450 (70-68-03)
The Extron PMK 450 Projector
Mounting Kit can accommodate
multiple Extron products of one
eighth, quarter, or half rack sizes
with power supplies.

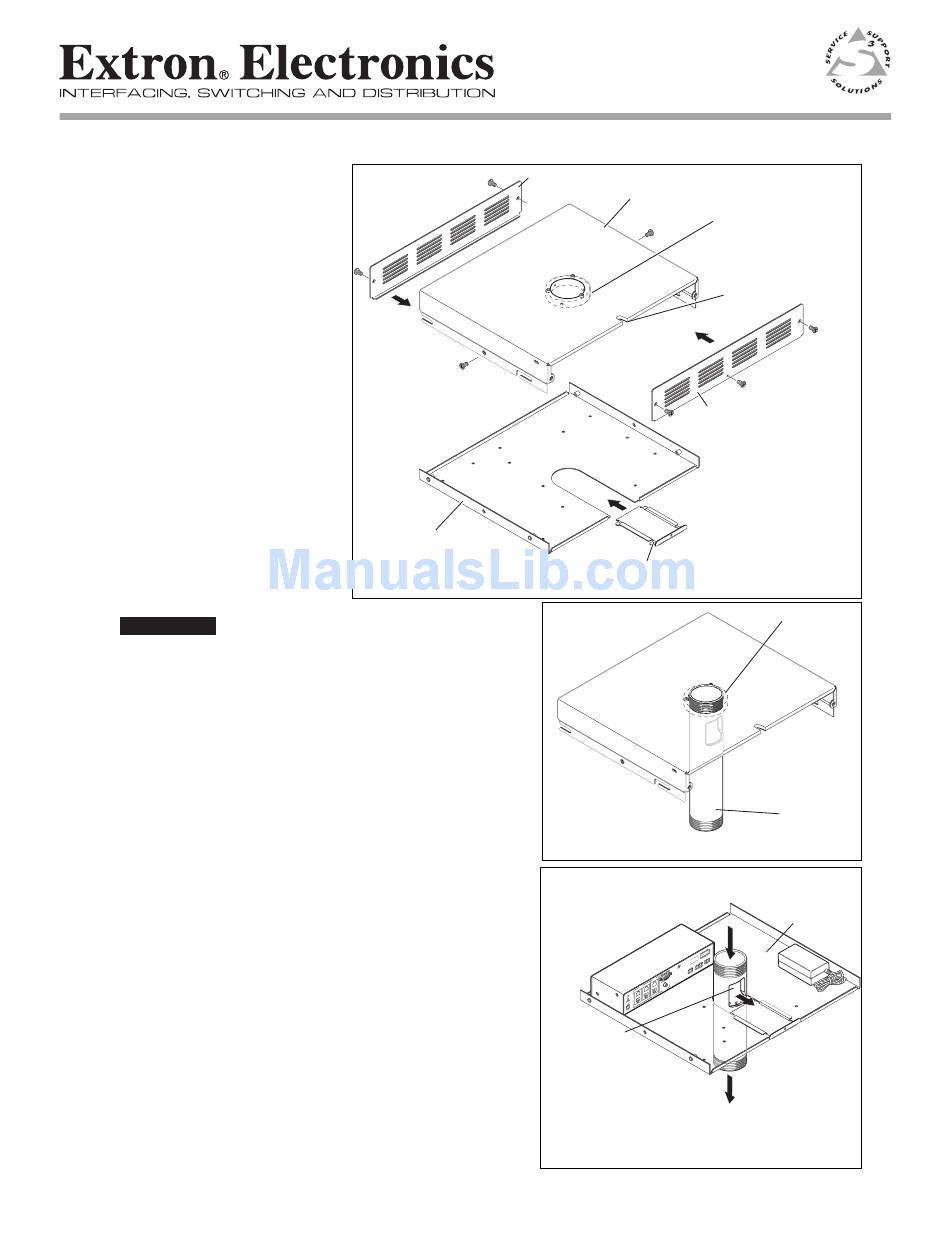

The components of the PMK 450
kit are shown in Figure 1. Also
included are:
• Set-screw hex wrench (1)
• Security screw hex wrench
(1)
• Velcro™ Pads for securing
power supply (2)
• 4-40 Screws for mounting
devices (6)

Installation

CAUTION
Maximum load for the PMK 450 is 15 lb (6.8 kg).
1. Unscrew the front and rear plates and the security
screws from the sides. Slide the top and bottom
plates apart. The filler plate is attached to the rear
plate and should not be removed.
2. Ensure that the mounting pipe is installed with
the cable access hole facing the rear, away from the
projector screen.
3. Loosen the four pipe collar set screws to allow the
top plate to move freely along the pole.
4. Slide the top plate up the pipe until the pipe collar is
positioned just above the cable access hole (Figure 2).
Ensure the rear of the top plate is facing to the rear, in
the same direction as the cable access hole in the pipe.
5. Level the top plate and secure it by fully tightening
the set screws. At least three screws must come in
contact with the pipe.
6. Route the cables so that they exit the pipe via the
cable access hole (Figure 3).
7. Using the supplied 4-40 screws, secure the devices
to the bottom plate. Figure 3 shows the PVS 204
screwed to the plate with a power supply attached by
the supplied Velcro pads.
8. Attach cables to the device(s) and pull excess cable
back into the ceiling. Feed the output cables to the
projector via the cable access hole and the bottom of
the pipe.
Front Plate (1)
Security Screws (2)
Bottom Plate (1)
Figure 1 — Contents of PMK 450 kit
PMK 450 Projector Mounting Kit • Installation Notes
Top Plate (1)
Pipe Collar (1) with
Set Screws (4)
Rear Plate (1)
Filler Plate (1)
FRONT
Figure 2 — Mount top plate on pole
Cable Input from
Sources (AV control)
FRONT
UT S ms
TP Oh
OU 4/8
IFI ED
PL
AM
R
OU ND VO L
T GR T TS! L DC
DO NO SH OR TPU
OR R OU C/ IR V
17T T EA KE 2 ML 12
TED EO SP -23
LIS /VID S RS Rx IR V E
AU DIO RA TU Tx 10 L/M UT
US AP PA VO
® C
B
A
B X IN
RG X/ MI
O AU
U
O T
VI DE P
3A U
T
S
2A
B
RG
1A O
VI DE
3B
I
N
P
2B
U
T
W ER S
PO 1B
V X
12 MA
3A
Cable Access
Hole
Figure 3 — Route cables
AC Power Cord
Access Slot
Plate
Screws (4)
Pipe Collar &
Set Screws
REAR
Extron PMP
Bottom Plate
REAR
Cable Output
to Projector
