Front Panel Features and Cabling
CONFIG
A A B B

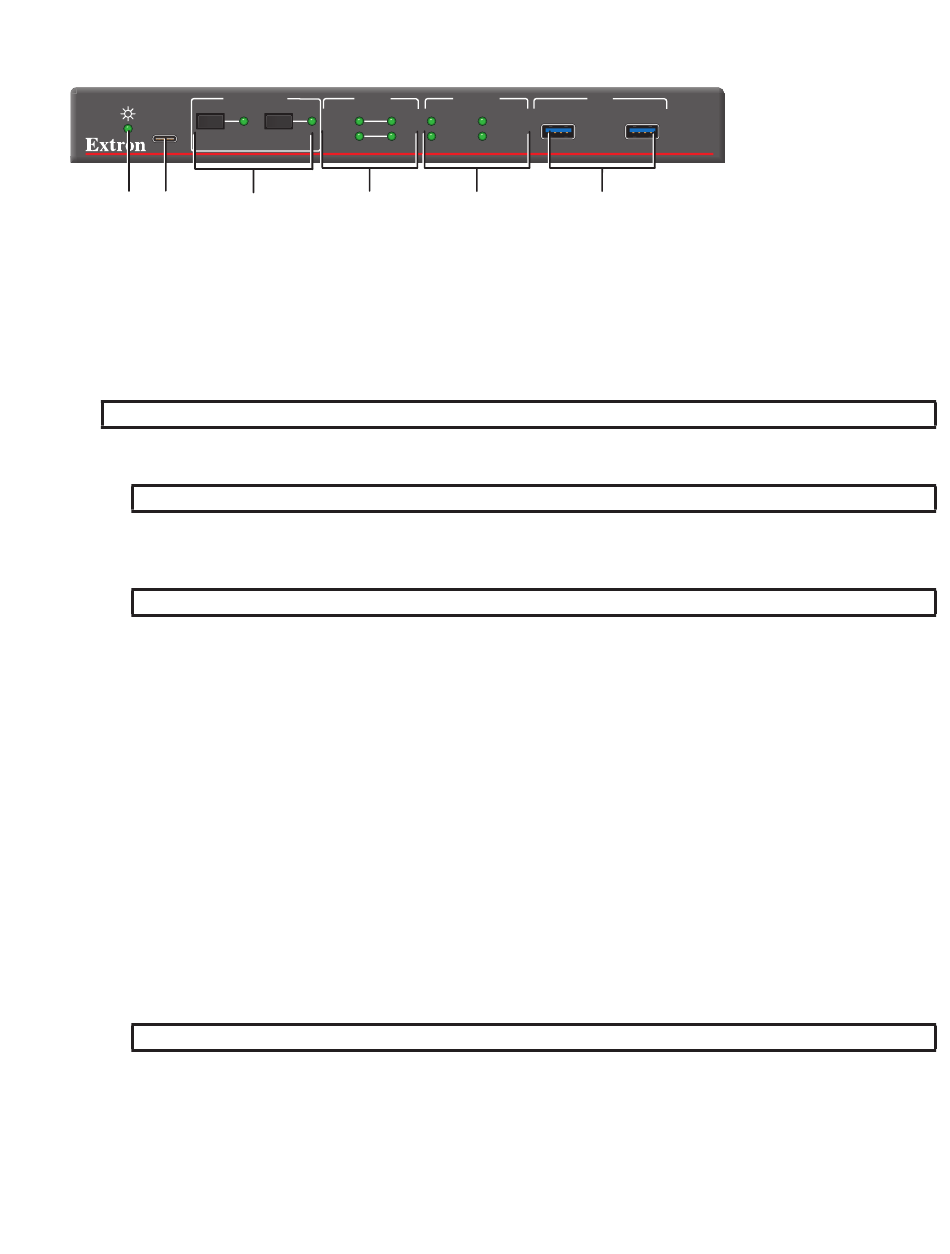

Figure 5. Front Panel
Power LED indicator — Lights green when the unit is powered on.
A
Configuration port — Connect a PC to this front panel USB‑C connector to configure the ShareLink Pro. The
B
port uses IP over USB technology. The IP address is always 203.0.113.22 and CANNOT be changed. This
port is also discoverable via Extron Toolbelt and Extron PCS software.
HDMI input selection buttons — Use these buttons to select between HDMI window mode and pass‑through
C
mode. These modes determine how the HDMI input is presented on the output (see below for details).
NOTE:
Selection of one mode deselects the other mode.
•
HDMI WINDOW button – Activates HDMI window mode, which displays the HDMI input source in addition
to or alongside any content currently being shared by client devices.
NOTE: Maximum input resolution for this mode is 4K @ 30 Hz.
•
HDMI PASS-THROUGH button – Activates HDMI pass‑through mode, which routes the HDMI input signal
directly to the HDMI output unaltered. In this mode, neither the status bar nor decoder input streams are
shown on the output.
NOTE: Maximum output resolution for this mode is 4K @ 60 Hz.
Input LED indicators:
D
• HDMI Signal LED – Lights green when an HDMI signal is detected.
• Decoder Signal LED – Lights green when one stream is detected. Flashes green when more than one
stream is detected at the same time.
• HDMI HDCP LED – Lights green when the HDMI input signal is encrypted. Turns off when the HDMI input
signal is not encrypted or when HDCP authorization is disabled.
• Decoder HDCP LED – Lights green when the decoder source signal is encrypted. Turns off when the
decoder source signal is not encrypted or when HDCP authorization is disabled.
Output LED indicators — These LEDs light green when the source signals are present and active on the
E
output.
•
HD Win – Lights green when the HDMI source is active on the output in HDMI window mode. Lights amber
if HDMI pass‑through mode is activated after originally being in window mode.
•
Decoder – Lights green when at least one stream is active on the output. Lights amber if HDMI
pass‑through mode is activated after at least one stream was active on the output.
•
Standby Screen – Lights green when the standby screen is active on the output. Lights amber if HDMI
pass‑through mode is activated while the ShareLink Pro output displays the standby screen.
NOTE: The standby screen images are displayed only when HDMI and decoder sources are not active.
•
HD Pass – Lights green when the HDMI source is active on the output in pass‑through mode.
USB port – Connect the Extron WFA 100 Wi‑Fi Miracast adapter to this port. This adapter enables anyone to
F
share content from a Windows 10 device without installing any software (see
WFA 100 Miracast Adapter
ConferenceShare (see the ConferenceShare User Guide at www.extron.com).
