Projector Mounts
PCM 240
Projector Drop Ceiling Mount
descriPtion
The Extron PCM 240 Projector Drop Ceiling Mount is a versatile ceiling plate designed as a
time- and cost-effective means of integrating a projector up to 50 pounds into small boardrooms
and classrooms with suspended ceilings. The 18-gauge steel (25.8" L x 8.00" W x 1.15" D)
mount can be quickly installed anywhere there is a suspended T-grid incorporating 2' x 2'
(60 cm x 60 cm) or 2' x 4' (60 cm x 120 cm) ceiling tiles. The PCM 240 includes knockout
openings for one single-space junction box and one double-space junction box —
RACO #8471 recommended — which provide integrated power access points or for use as
video connection/cable pass-throughs. One threaded pipe adapter (1.5" NPT) is provided for
mounting projector mount poles. A dual slot design for the pipe adapter maintains increased
rigidity while providing precise yet ample adjustment and positioning. The PCM 240 is designed
to be suspended from the structural ceiling above the suspended ceiling tile using the included
turnbuckles and 60' tie-wire safety cable or optional threaded rods - not included. Once
securely mounted, the PCM 240 can be fixed to the T-grid using the supplied PEM inserts and
screws. Available in white only.
Model
PCM 240
810
Version descriPtion
1.5" NPT Adapter Plate
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PCM 240
Projector Drop Ceiling Mount

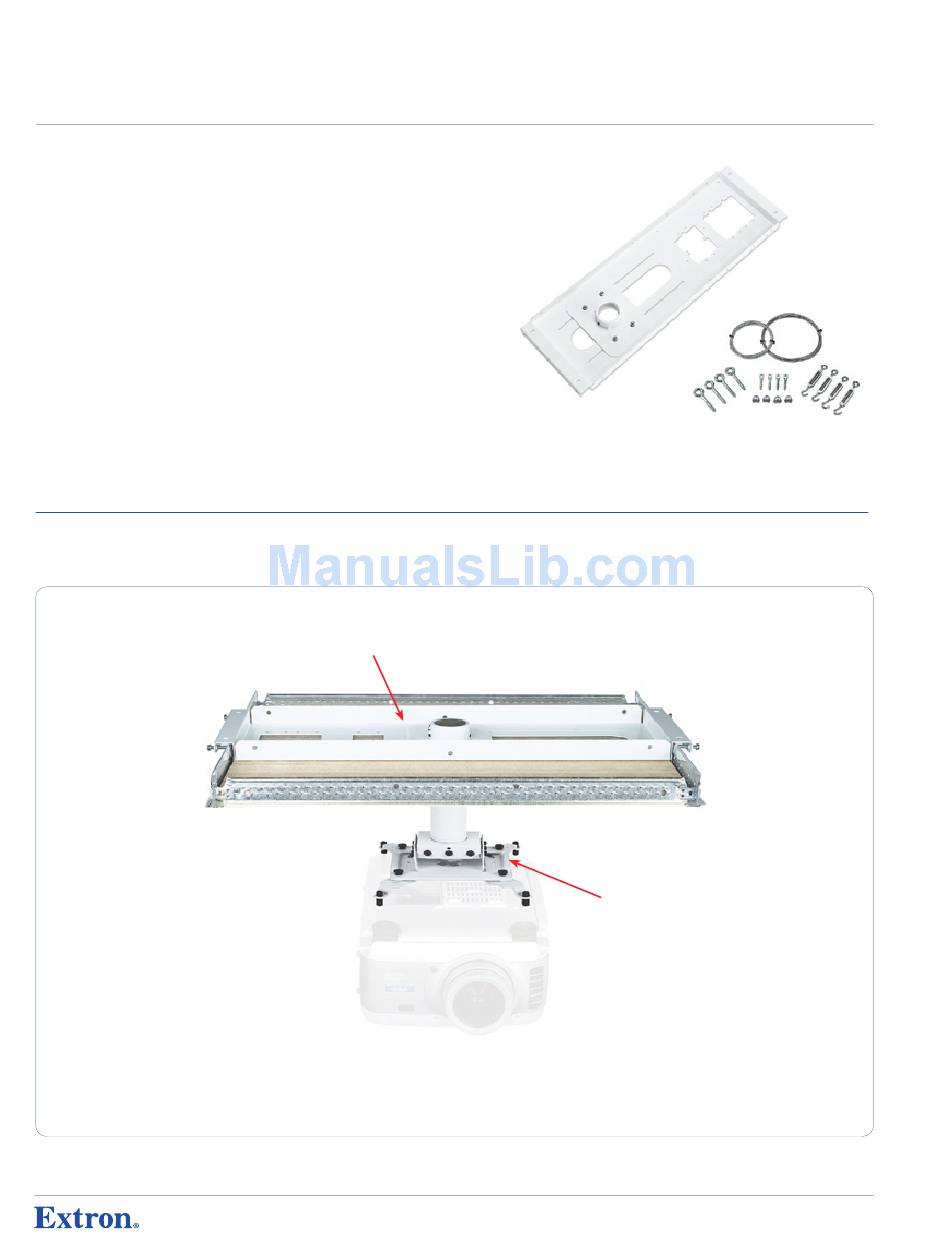

View from above ceiling
