USFM 100 Conversion Kit • Installation Guide
The Extron USFM 100 Conversion Kit converts the ultra short throw projector mount into a
stand-alone wall mounted enclosure. The kit includes a mounting bracket and cover plate to
replace the projector boom arm in the center section of the USFM 100. The necessary screws
and washers are included for easy installation.

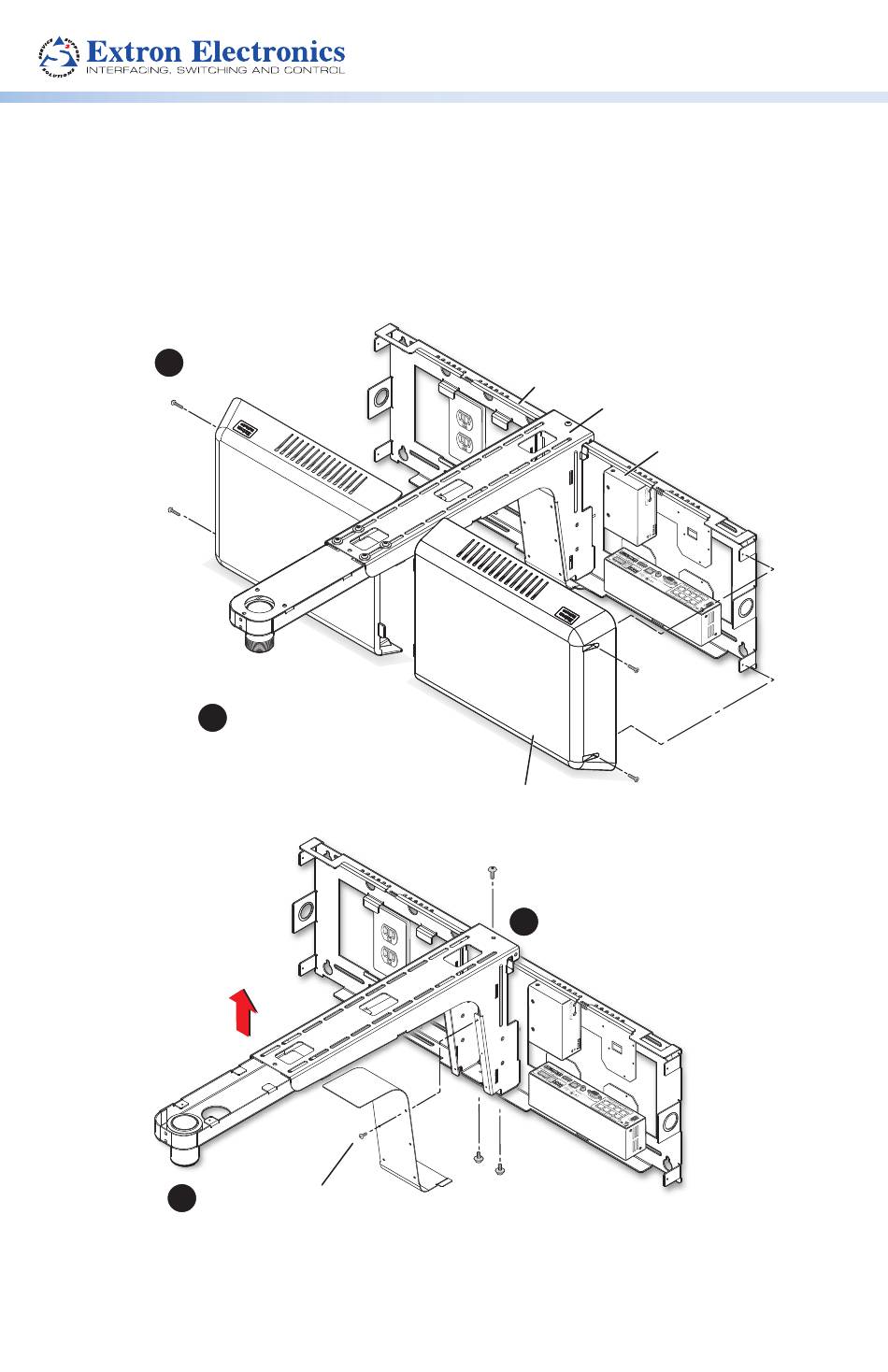

Remove Projector Boom Arm
1
Remove (4) screws
(retain for re-installation).
2
3
Slide the Plastic Enclosure Covers
away from Projector Boom Arm
and remove from Base Plate.
Unscrew (6) screws from
Projector Boom Arm Cover
and remove.
Base Plate
Projector Boom Arm
Optional Accessories
Plastic Enclosure
Cover
Hex Screw
4
Unscrew (3) screws from
Projector Boom Arm and
remove from Base Plate.
Phillips
Panhead Screws
