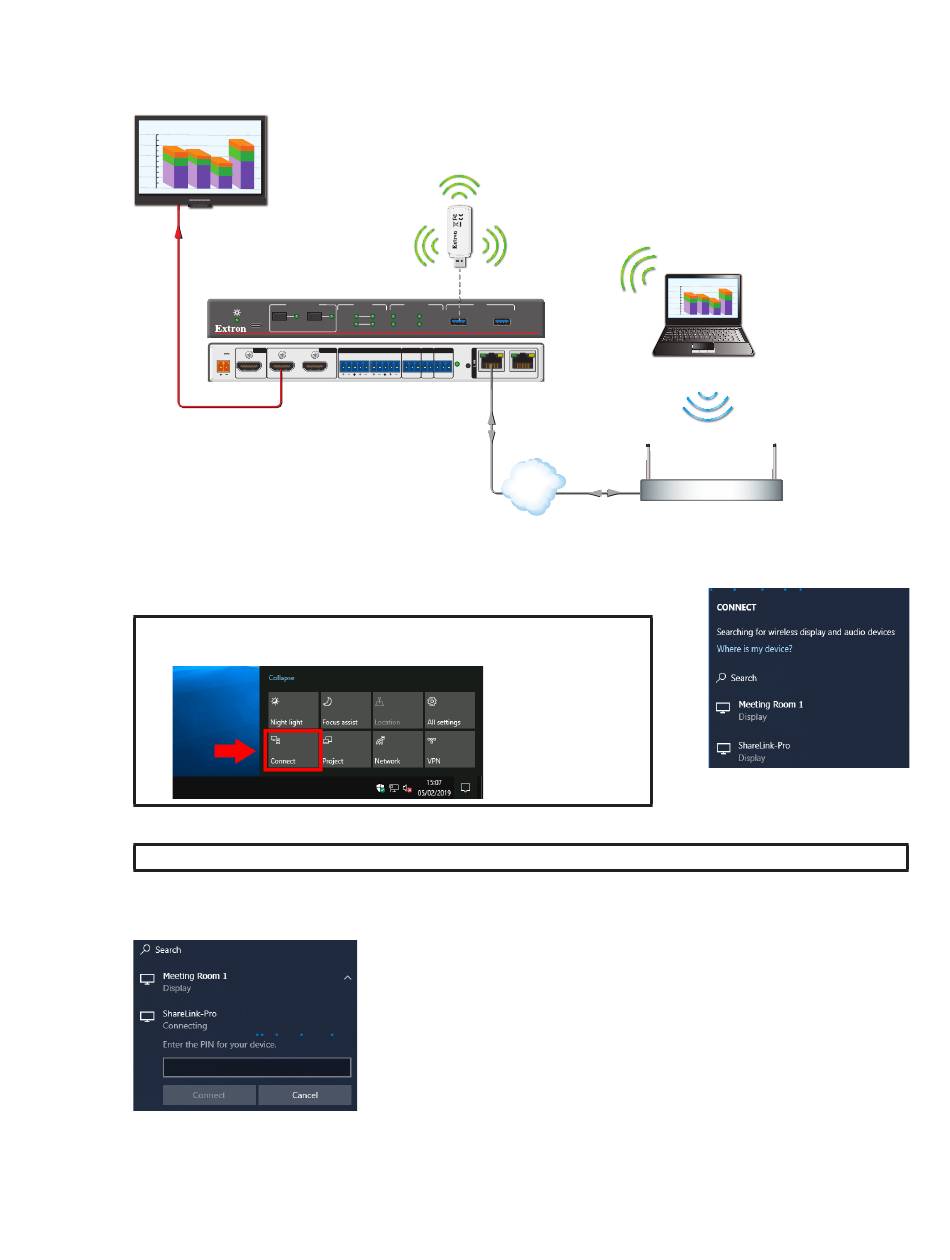

1. Connect the WFA 100 adapter to the ShareLink Pro front panel USB port (
Display
Regional Sales Regional Sales
150
SOUTH
WEST
120 EAST
NORTH
90
60
30
0
HDMI
Extron
ShareLink Pro 2500
CONFIG
WINDOW
POWER INPUT
12V
1
--A MAX
HDMI HDMI/CEC
2. Ensure that Wi‑Fi is enabled on the Windows 10 client device.
3. Press the <Windows + K> keyboard shortcut on the Windows 10 client device to open the Connect
panel, which appears at the right of the screen (
NOTE: Alternatively, click the Connect quick settings tile in
Action Center (shown below) to open this panel.
The Connect panel shows a list of Miracast capable devices.
NOTE: Wi‑Fi must be enabled in order to discover ShareLink Pro devices.
4. Select the desired Sharelink Pro unit from the list, and enter the display code if prompted (
the Standby Screen for the ShareLink Pro hostname and code).
3 3
1 1
WFA 100
HDMI INPUT INPUT OUTPUT
HDMI DECODER
1
900mA
SIGNAL HD WIN HD PASS
STANDBY
PASS-THROUGH HDCP DECODER
SCREEN
OUTPUT AUDIO COM IR/S DIG I/O
2
LINE IN LINE OUT
RESET
L R L R
HDMI/CEC Tx Rx G S G 1 2 G
USB
SS 5G
2
900mA
ShareLink Pro 2500
Laptop
A/PoE+ B
Ethernet
TCP/IP
Ethernet
Network
CORPORATE NETWORK
).
2
ShareLink Pro 2500 • Operation Using a Computer
).
