Transfer Chamber Evacuation (Purge) and Fill –
Operation Mode 3

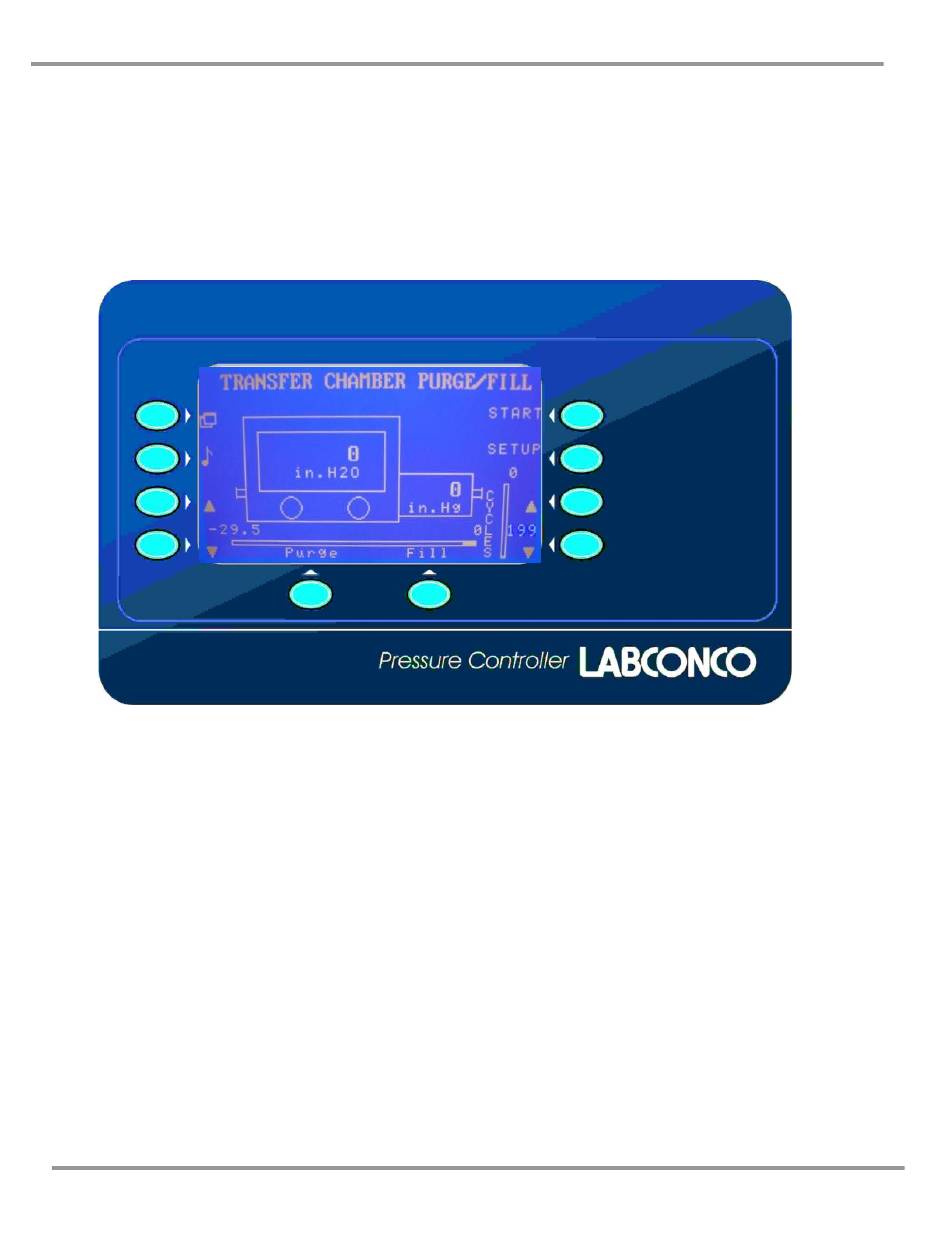

The Transfer Chamber Purge/Fill mode controls the pressure changes inside the
transfer chamber. Pressure in the transfer chamber will be displayed inside the transfer
chamber icon on the display screen. This operation mode controls the gas inlet and gas
outlet solenoid valves connected to the transfer chamber.
Mode Key
Mute/Alarm
Increase
Lower Limit
Decrease
Lower Limit
The user may select up to 199 "Purge/Fill" cycles by adjusting the cycles increase and
decrease arrow keys. The user can select the level of pressure inside the transfer chamber
during each purge between 0 and -29.5 inches of Mercury/Hg [0 -999 mBars] by
adjusting the lower limit keys. Once the lower pressure limit and number of cycles have
been selected, press the key adjacent to "Start," and the automated purge and fill process
will begin and continue for the number of cycles selected. Each cycle will be displayed
during the process. To cancel the automated purge and fill process, press the key adjacent
to "Stop" and the process will be stopped.
