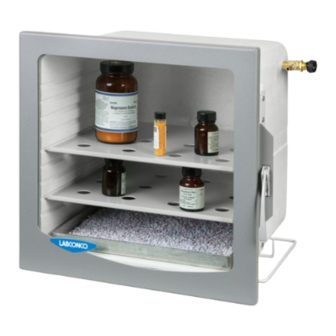

Vacuum desiccator cabinet

Advertisement

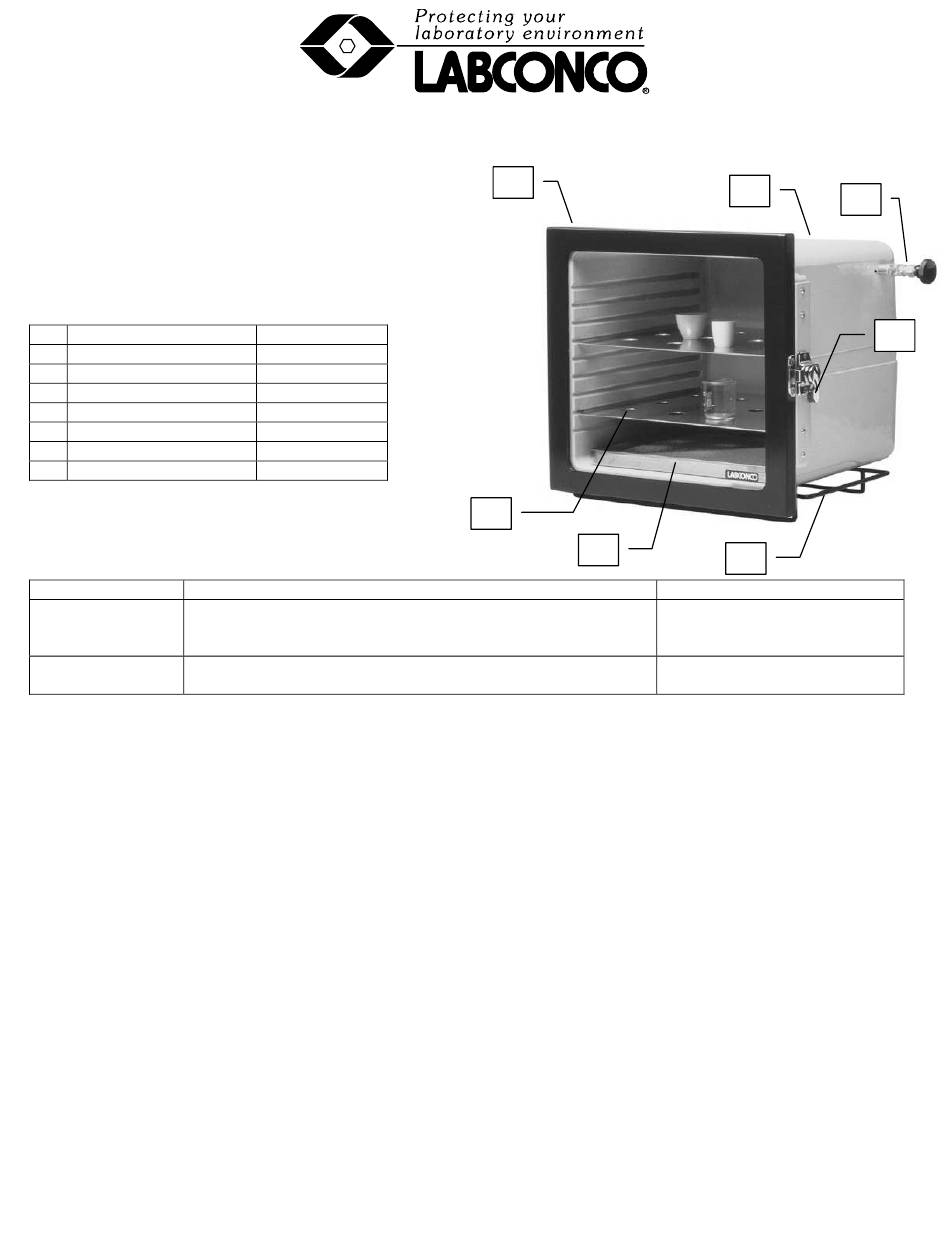

LABCONCO CORPORATION 8811 Prospect Ave, Kansas City, MO 64132
(816) 333-8811, Fax (816) 363-0130, (800) 821-5525, www.labconco.com
Vacuum Desiccator Cabinet
Model No. 5530000

Replacement Parts

Description
1
Cabinet Housing
2
Door Assembly
3
Door Lock
4
Sample Shelf
5
Valve Assembly
6
Support Stand
7
Desiccant Pan

Accessories

Catalog Number
Description
5535700
Vacuum Tubing Kit, includes 1/4" ID and 1/2" ID vacuum tubing,
each 48" long; 2 each 1/4" and 1/2" tubing clamps; 1/4" to 1/2"
barbed reducer.
5530600
Stacking Rack, epoxy-coated steel, glacier white in color

Installation and Maintenance

Your Desiccator should be inspected thoroughly prior to usage. Any damage that may have occurred in transit should be reported
immediately. The Desiccator should be located adjacent to a vacuum source, should it be required. Adequate counter space is
required to facilitate the opening and closing of the door.
1. Place cabinet on the supplied support stand. Holes are provided in the cabinet to position the rack correctly.
2. Attach 1/4" ID vacuum hose to the fitting on the valve if vacuum is required for your specific application.
3. The cabinet may be used with or without vacuum grease on the door gasket surface. If a lower vacuum is anticipated over a
long period of time, a light coating of grease is recommended.
4. Load the stainless steel pan that has been provided with a commercially available desiccant material.
5. Apply or release vacuum to the cabinet by opening or closing the vacuum valve.
The fiberglass-molded cabinet can be washed with detergent and warm water. DO NOT use harsh detergents or scouring powders on
the fiberglass surfaces. The window is tempered safety glass and care should be taken to avoid scratching and/or damaging this
surface.
1. The door gasket should be kept clean to assure a good seal. If vacuum grease is used on the gasket, it should be removed
occasionally with a soft dry cloth and reapplied.
2. The Desiccator cabinet is shipped completely assembled. Should the door need adjustment, the following procedure should
be followed:
a.
With door closed and latched, loosen screws holding door hinges and latches to the cabinet body.
b. If a vacuum source is available, apply any level of vacuum to cabinet. The vacuum will hold the door in place and
compress the gasket.
c.
If vacuum source is not available, adjust the door such that the face of the glass compresses the gasket slightly and
retighten screws.
Labconco Instruction Sheet 5534600, Rev. G, ECO D841
Part Number
5529000
5529600
1982200
5533400
5532900
5529100
5532100
2
4
7
Use
Used to connect Desiccator
Cabinet to vacuum pump.
Provides for the stacking of two
Desiccator Cabinets.
1
5
3
6
1 of 2
