Labconco Protector 50600 User Manual page 40

Chapter 5: Using Your Glove Box
Main Modes of Operation

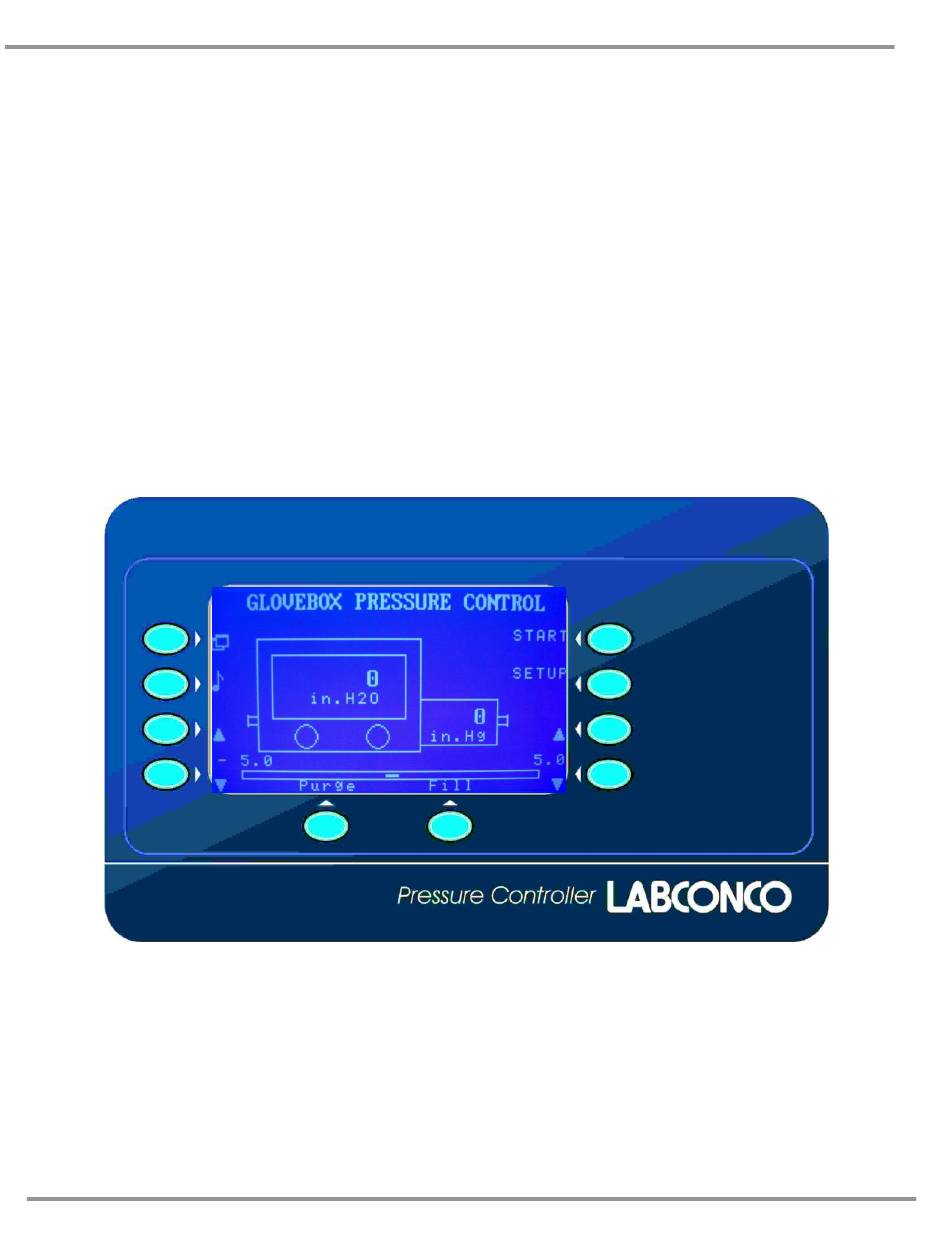

The Labconco Glove Box Pressure Controller display has four main screens that
provide access to the 4 modes of operation listed below.
Press the MODE key at the upper-left hand corner of the display screen to switch
between each of these four operation modes. Please be aware that if one of the
glove box modes is running/started, other glove box operation modes cannot be
used. For example, if the Glove Box Pressure Control mode has started (using the
start key), the menu page for the Glove Box Purge/Fill mode cannot be used – this
prevents operational control conflicts from occurring at the same time.
Mode Key
Mute/Alarm
Increase
Lower Limit
Decrease
Lower Limit
36
1.) Glove Box Pressure Control Mode
2.) Glove Box Purge and Fill Mode
3.) Transfer Chamber Purge and Fill Mode
4.) Setup Mode
Manual
Purge
Manual
Fill
Product Service 1-800-522-7658
Start/Stop
Setup
Increase
Upper Limit
Decrease
Upper Limit
