Chapter 3: Getting Started

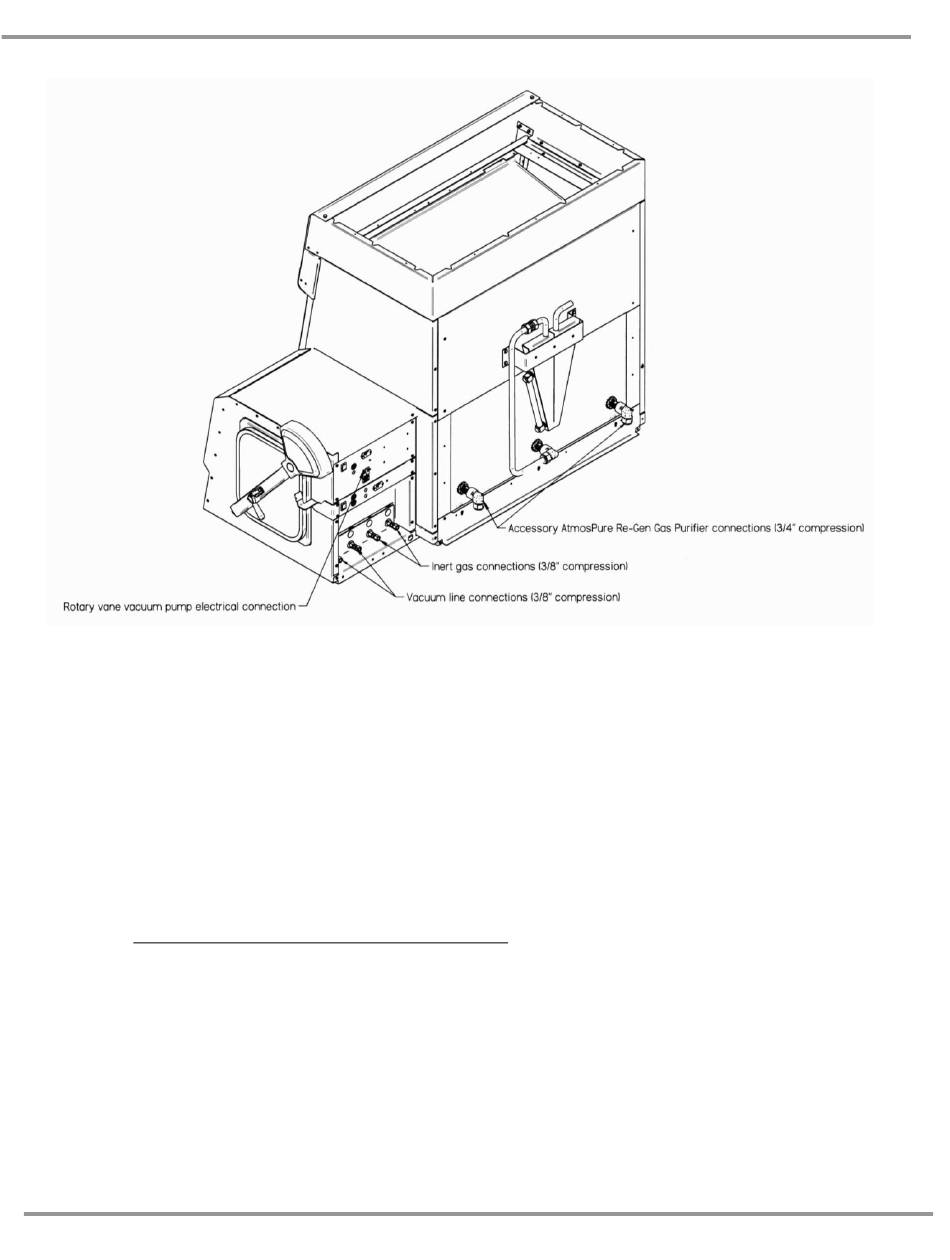

Figure 3-8
Rear View of Glove Box with manual control valves and the
plumbing connections
Validating the Glove Box
Each Protector Glove Box has been helium leak tested at the factory for integrity
-6
and found to have no leaks greater than 1 x 10 cc/sec while at a positive pressure
of 5 inches helium. Refer to Chapter 6, Initial Certification and Appendix G for
Helium Leak Test Method.
Overall Glove Box Main Chamber Leak Test
The Protector Controlled Atmosphere Glove Box has been tested with an oxygen
monitor detecting oxygen levels as low as 0.1 ppm; the rate of increase in oxygen
over time was determined in accordance with the ISO 10648-2 oxygen leak decay
test method. The results validate that the Protector Controlled Atmosphere Glove
Box meets Class 1 conditions for controlled atmosphere chambers. Figure 3-9 and
3-10 show test results of the oxygen permeation or oxygen level increase as a
function of time. Per ISO specifications, Class 1 controlled atmosphere chambers
-4
have a specified hourly leak rate of less than 5 x 10 (< 1.67 ppm/min) per Table 3-
1 listed at the end of Chapter 3 with performance results summarized in Chapter 1.
