Chapter 3: Getting Started
Installation of Gloves to the Glove Ports
With the thumbs up and in a right/left orientation, secure the gloves in place on the
glove ports by stretching the beaded glove cuff into the glove port groove nearest
the window. Install the separate 8" diameter O-ring over the gloves, into the outer
groove of the glove port surface. Stainless steel band clamps are provided for
securing the separate O-ring into the glove port groove. Replacement gloves and
parts are listed in Chapter 7.

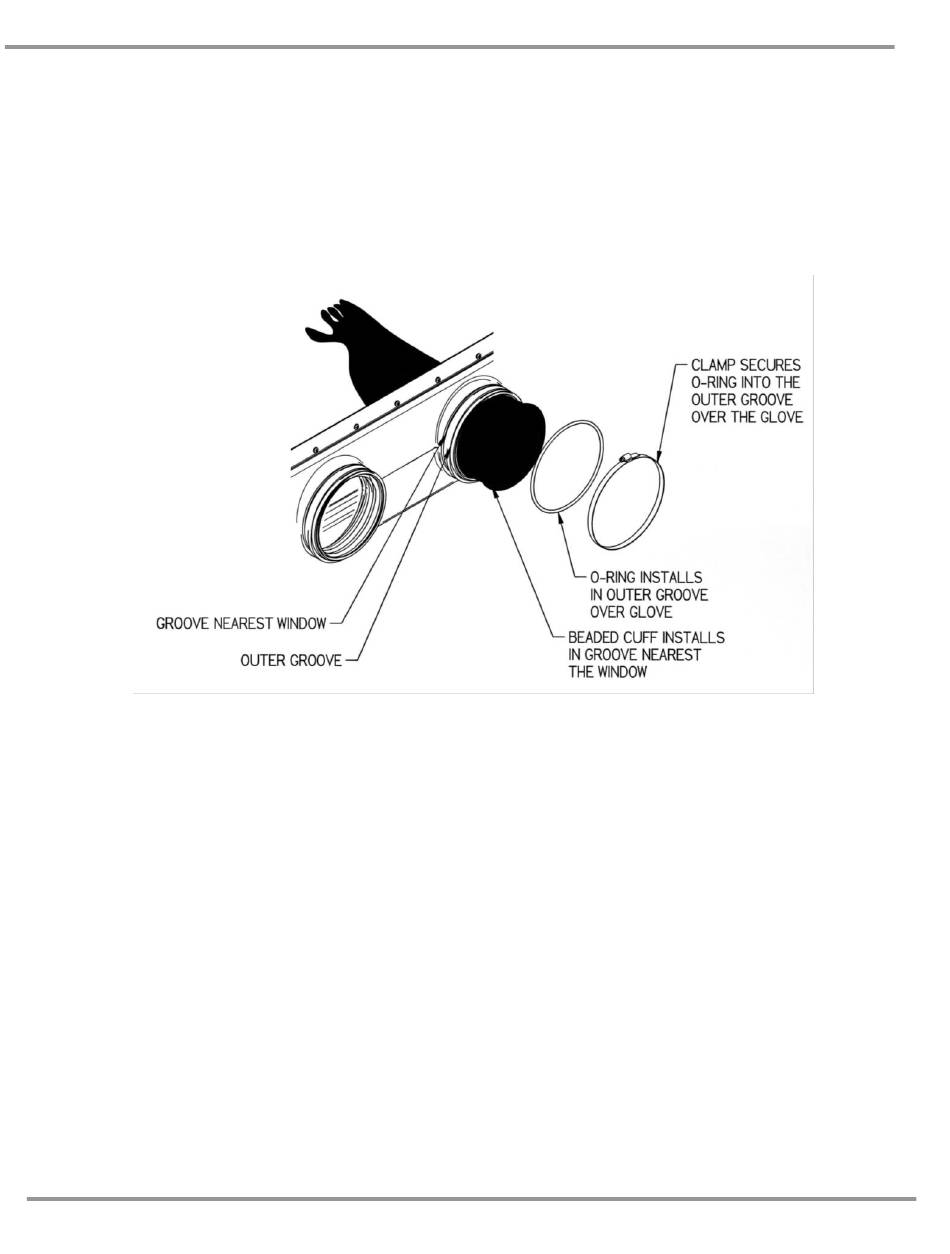

Figure 3-3
Glove Installation
Connecting the Electrical Supply Source to the
Glove Box
Connect the power cords supplied to both IEC electrical supply plugs located on
the back of the glove box. For doublewide models, connect one extra power cord
for the centrally located duplex on the left side. 100-115V models are rated at 12
amps for each power cord. 230V models are rated at 12 amps for one power cord
and 6 amps for the other power cord to power the exterior vacuum pump outlet.
The maximum circuit load for the interior electrical duplex is 10 amps. The
exterior vacuum pump receptacle is rated at 8 amps for 100-115V models and 4.5
amps for 230V models. On auto pressure control and combination models, a foot
switch for pressure control is supplied and is connected (3 position connector) to
the back of the glove box as marked. See Figure 3-2 for all electrical connections.
See Figures 1-1 and 1-3 for foot switch.
