1.3.4. Three Position Enabling Device
Description
Operational Using a Three-Position Enabling device requires the use of an Operational Mode
Mode Switch switch.
The illustration below shows an Operational Mode switch.
UR16e PolyScope X
The robot arm is equipped with an enabling device in the form of the 3PE Teach
Pendant.
The Control Box supports the following enabling device configurations:
• 3PE Teach Pendant
• External Three-Position Enabling device
• External Three-Position device and 3PE Teach Pendant

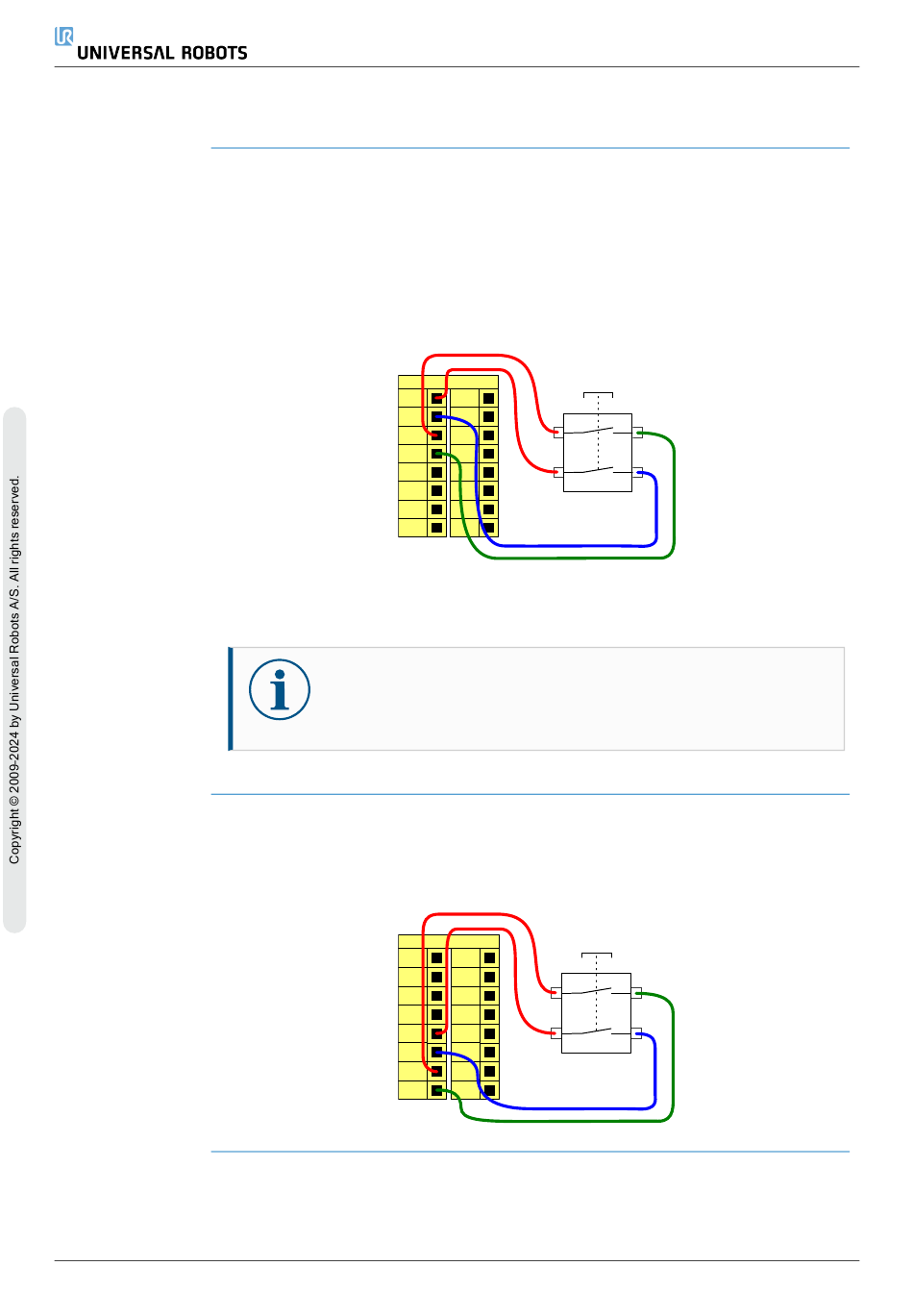

The illustration below shows how to connect a Three-Position Enabling device.
24V
24V
24V
24V
Note: The two input channels for the Three-Position Enabling Device input have a
disagreement tolerance of 1 second.
NOTICE
The UR robot safety system does not support multiple external
Three-Position Enabling Devices.
24V
24V
24V
24V
Configurable Inputs
3-Position Switch
24V
CI0 CI4
24V
CI1 CI5
24V
CI2 CI6
24V
CI3 CI7
Configurable Inputs
Operational mode Switch
24V
CI0 CI4
24V
CI1 CI5
24V
CI2 CI6
24V
CI3 CI7
