Neuron-Spectrum-61, 62, 63, 64, 65 (Technical Manual)
Trigger input/output and Neuron-Spectrum.NET software
The external stimulators connected to the trigger input must be used in the following
order:
1. Connect the external stimulator to the trigger input using a cable.
2. Switch on the external stimulator power supply.
3. Run the Neuron-Spectrum.NET software. Open the EEG acquisition styles win-
dow. Select the Stimulator setup page and check the Stimulation from trig-in
check box (Fig. 57).

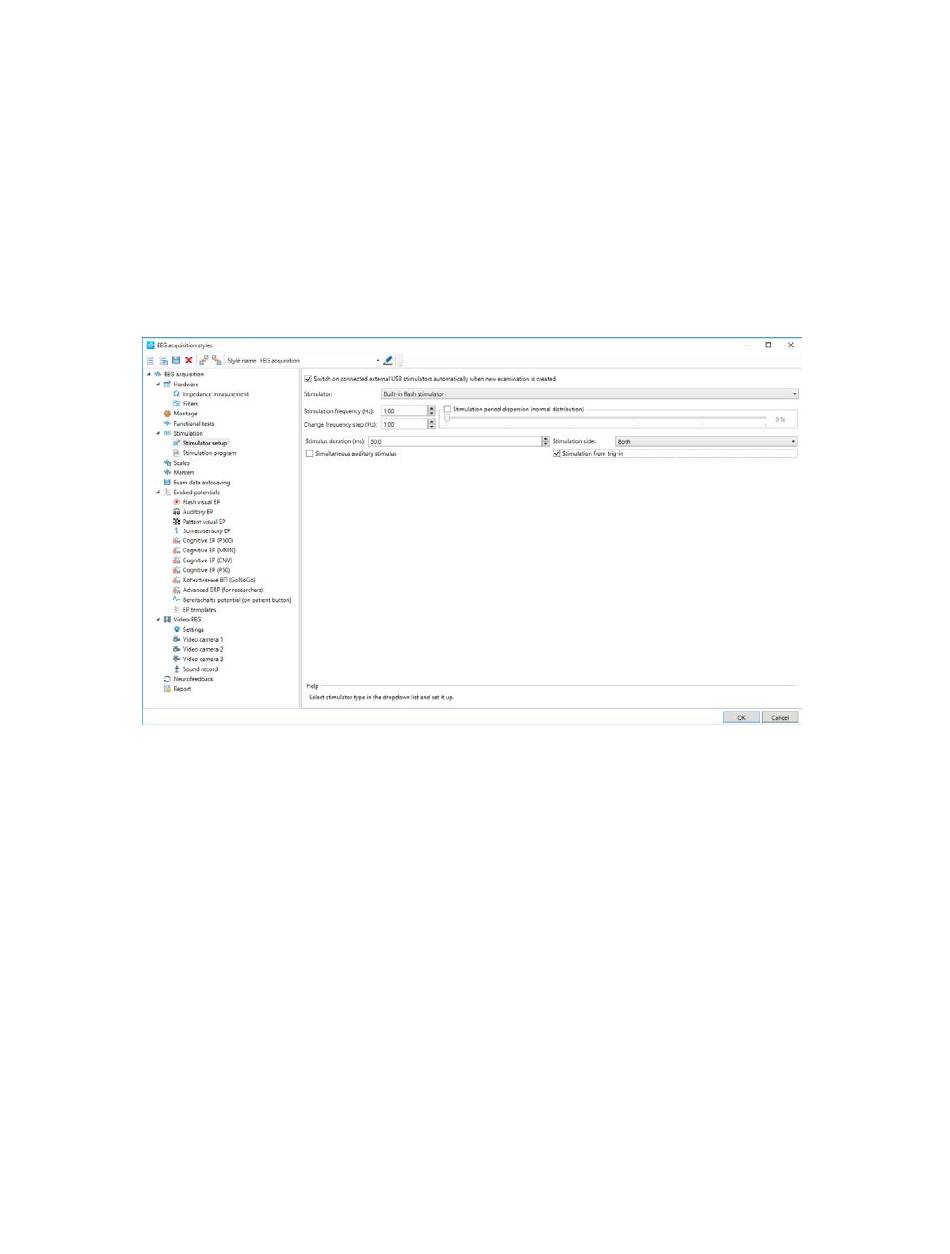

Fig. 57. Adjusting settings for external stimulator
4. Adjust the same stimulation settings as in the external stimulator, as these partic-
ular values are saved together with the trace and taken into analysis.
In other aspects the signal acquisition does not differ from the one described in
the corresponding chapters of this manual.
The external stimulators connected to the trigger output must be used in the following
order:
1. Connect the external stimulator to the trigger output using a cable.
2. Switch on the external stimulator power supply.
3. Run the Neuron-Spectrum.NET software. Open the EEG acquisition styles win-
dow. Select the Stimulator setup page and uncheck the Stimulation from trig-in
check box.
