Neuron-Spectrum-61, 62, 63, 64, 65 (Technical Manual)
The impedance indicator displays the quality of electrode placement (electrode im-
pedance) in the impedance measurement mode (Table 5).
Table 5. Assignment of impedance indicators
Indicator color
Green
Yellow
Red
Note:
1)
Default values that can be changed by users in the Neuron-Spectrum.NET software.
The touch-proof connectors are described in Table 6.
Table 6. Functions of touch-proof connectors
Connector
"FP2...O1", "A1/M1",
"A2/M2"
"CHIN R", "CHIN C",
"CHIN L"
"EOG R", "EOG L"
"±1"..."±8"
"X1"..."X11"
"GND"
"Ref"

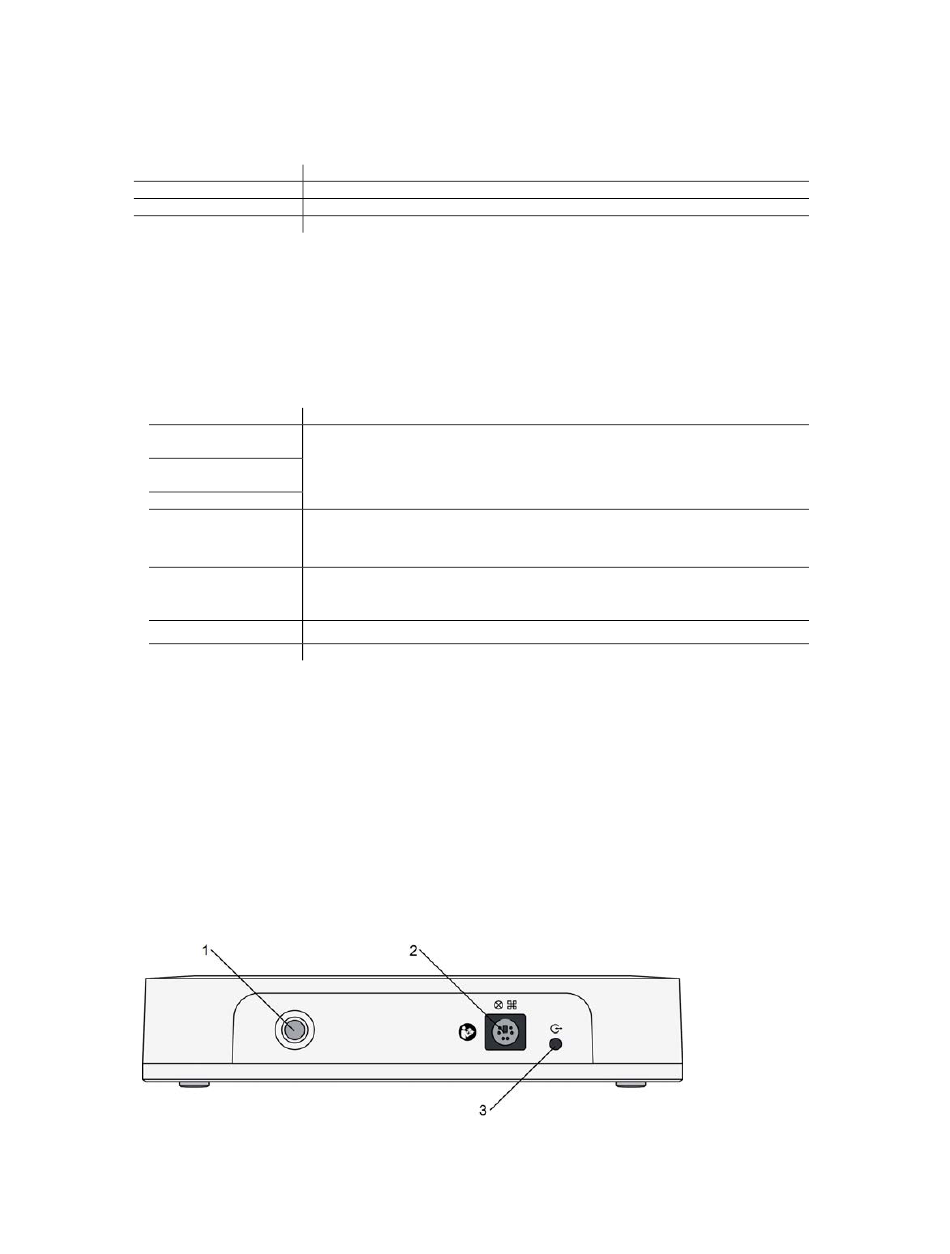

On the top side panel of the electronic unit (Fig. 7) there are the following sockets and
connectors:
1. USB cable for connection to USB port of PC, USB hub or USB/LAN hub.
2. Connector for PhS-1 LED photic stimulator or adapter for standard pattern stimu-
lator or TU-1 trigger unit.
3. Trigger socket (trig-in/trig-out) to attach equipment of third-party manufacturers
(see Annex 3): directly or via TU-1 trigger unit.
Fig. 7. Top side panel of electronic unit
26
Electrode impedance level
Electrode impedance <25 kOhm
Electrode impedance >25 kOhm and <40 kOhm
Electrode impedance >40 kOhm
Connector for recording electrodes.
Channel operating mode: referential.
Connector for recording electrode or DC-sensor.
Operating mode: differential or direct current (DC) signal recording.
The operating mode is selected for each channel separately.
Connector for recording electrode or DC-sensor.
Operating mode: direct current (DC) acquisition or referential.
The operating mode is switched for all channels simultaneously.
Connector for ground electrode
Connector for selected reference electrode.
1)
Function
