1.3.2. Auditory Stimulator Unit
The auditory stimulator unit is shown in Fig. 9.

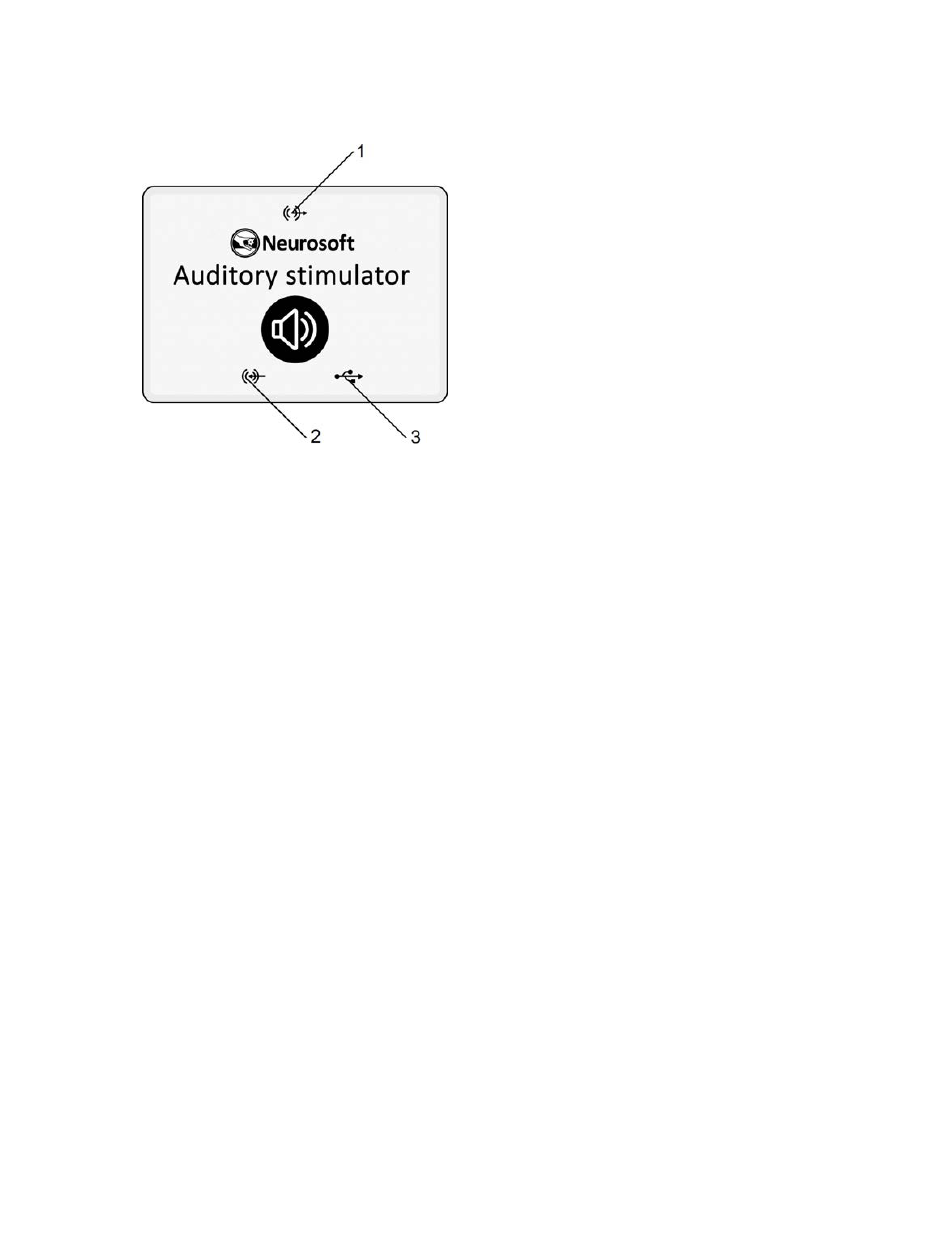

Fig. 9. Auditory stimulator unit
On the top side panel of the auditory stimulator unit there is the following connector:
1. Connector for computer headset.
On the bottom side panel of the auditory stimulator unit there are the following sock-
ets:
2. Socket to connect the auditory stimulator unit to PC audio card using stereo cable.
3. Socket to connect the auditory stimulator unit to USB port using USB cable
(A->B).
The auditory stimulator detects the precise moment of auditory stimulus appearance
in the patient's headphones. Any audio file on PC can be regarded as auditory stimu-
lus.
