5.3.3.2 Digital Output

Outputs can be set to either sink output or source output by selection.
The maximum drive current is 300mA per channel. If the load exceeds 300mA, a relay should be used
to drive it.
Set to sink output type

Connect DO_COM terminal to the minus side of the power supply.
Hardware Installation Manual: TM25S/TM30S series Hardware version: 5.02
TECHMAN ROBOT INC.
5F., No. 58-2, Huaya 2nd Rd., Guishan Dist., Taoyuan City, 333411 , Taiwan

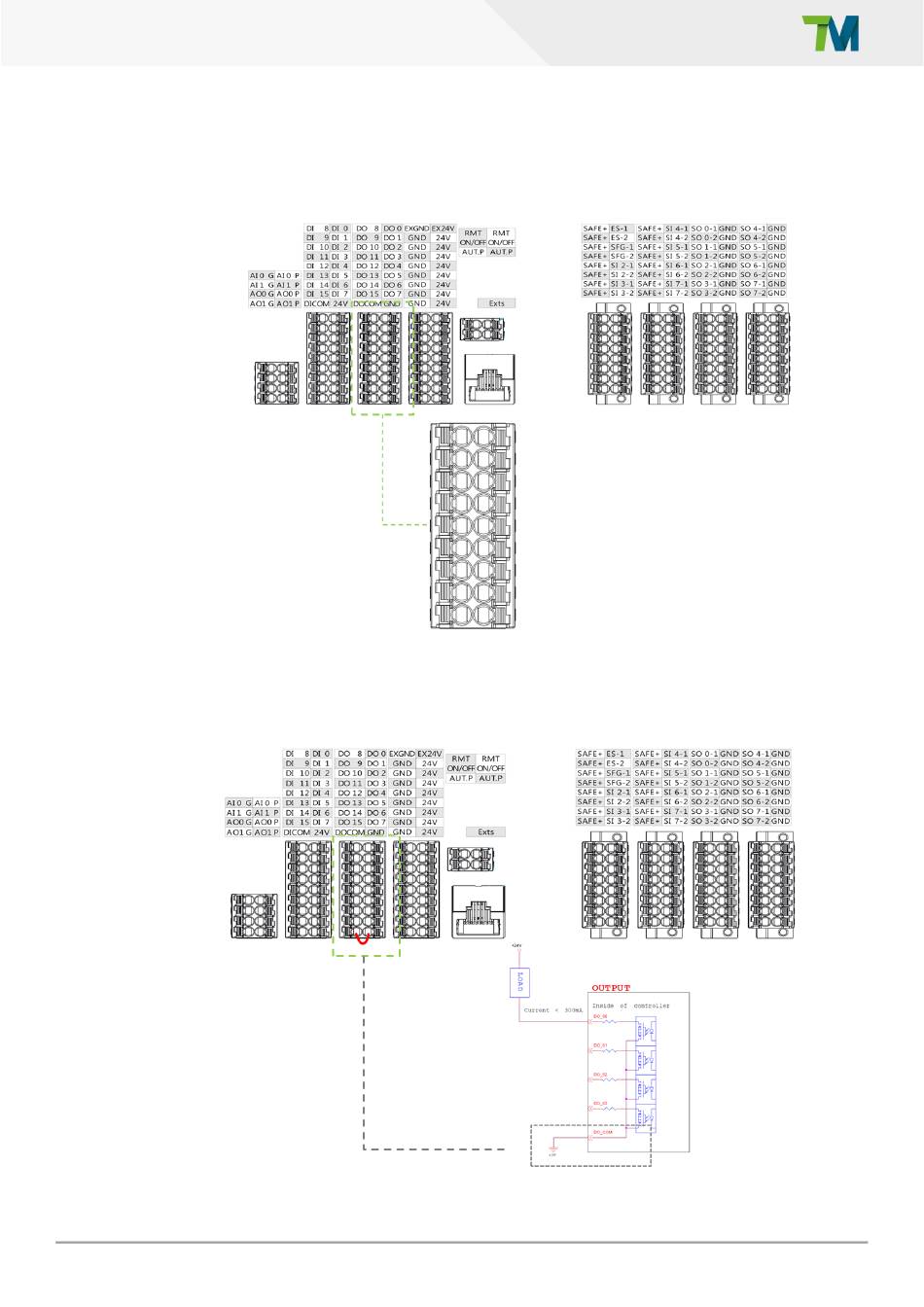

Figure 50: Digital Output

Figure 51: Set to Sink Output Type
