4.2.1.2 Robot Assembly Diagram
Shown below is an illustration of the robot components. To avoid safety risks, do not attempt to
disassemble any component on your own. Contact your local corporation support for any service
request.
Hardware Installation Manual: TM25S/TM30S series Hardware version: 5.02
TECHMAN ROBOT INC.
5F., No. 58-2, Huaya 2nd Rd., Guishan Dist., Taoyuan City, 333411 , Taiwan

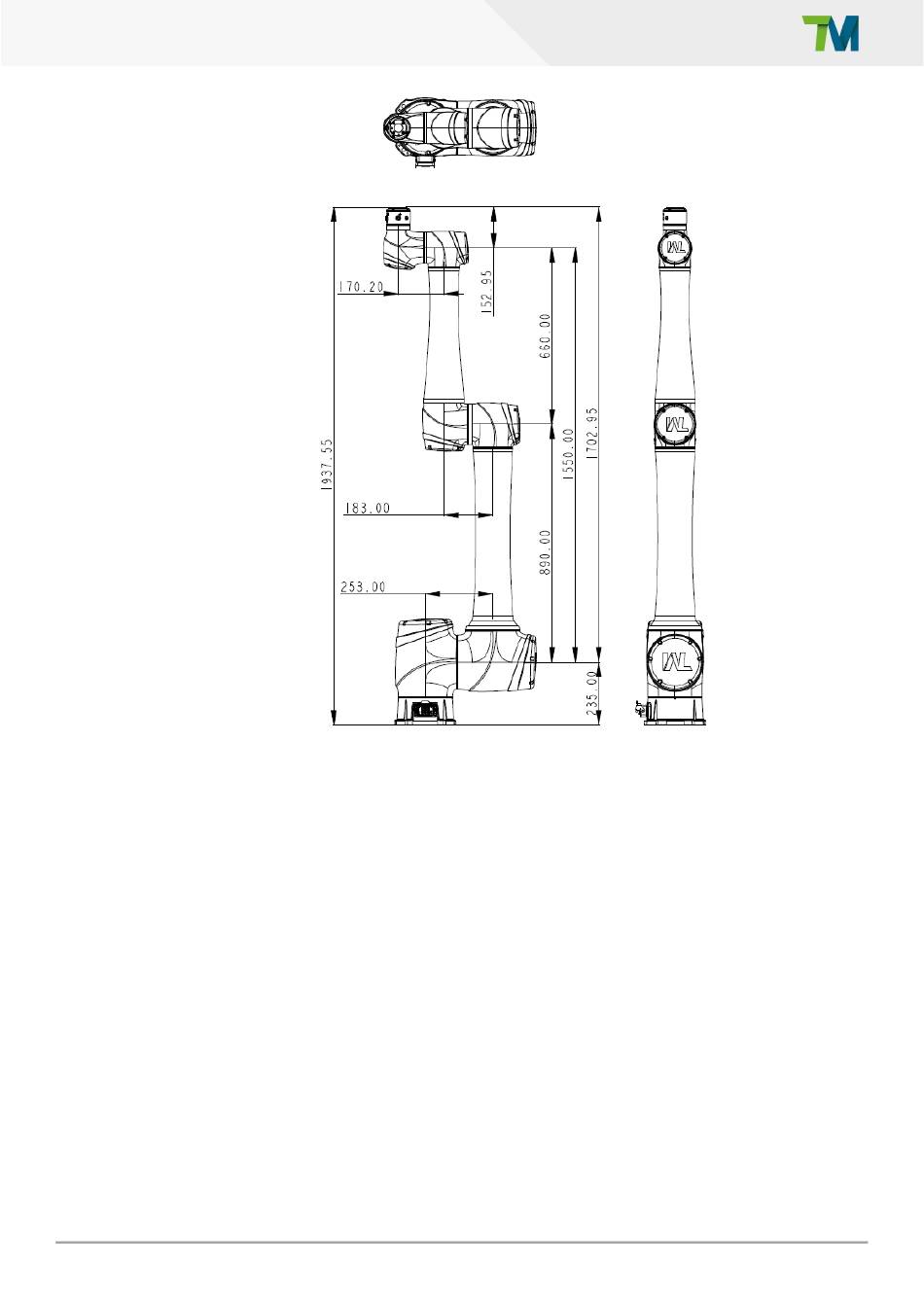

Figure 9: Dimension of TM30S-X
*All measures are in ㎜.
Document version: 1.00
24
