4.2.3.1 Robot Stick

The Robot Stick has 1 Power Button (combined with an indicator), 1 Emergency Stop button, 1 Reset
button, 1 Enabling Switch, 6 function buttons (Play, Pause, Stop, M/A, +, -), 3 light indicators and 1 set
of speed indicators. Their functions are defined as follow:
Hardware Installation Manual: TM25S/TM30S series Hardware version: 5.02
TECHMAN ROBOT INC.
5F., No. 58-2, Huaya 2nd Rd., Guishan Dist., Taoyuan City, 333411 , Taiwan

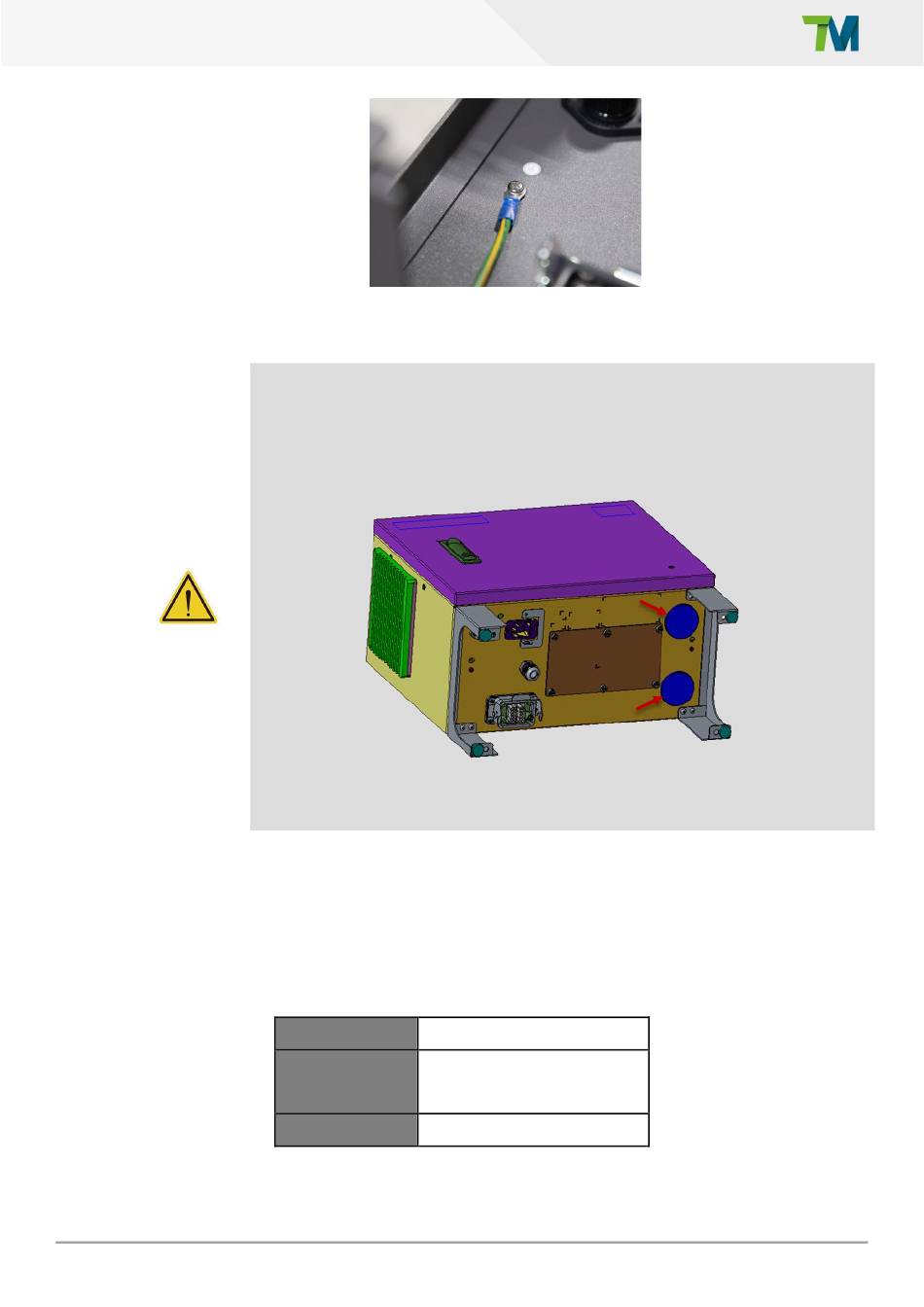

Figure 27: Securing the ground wire with control box

CAUTION:
 Before any cable is plugged into the Control Box, replace the waterproof rubber plugs
at the base of the box with compatible cable glands.
 Recommended cable gland: BG-48 (manufactured by KSS)

Figure 28: Waterproof Rubber Plugs of the Control Box

130.00×163.72×105.00 ㎜
Dimensions
360g without cable
Weight
480g with 1-meter cable
IP Classification IP54

Table 7: Specifications of the Robot Stick

Document version: 1.00 41
