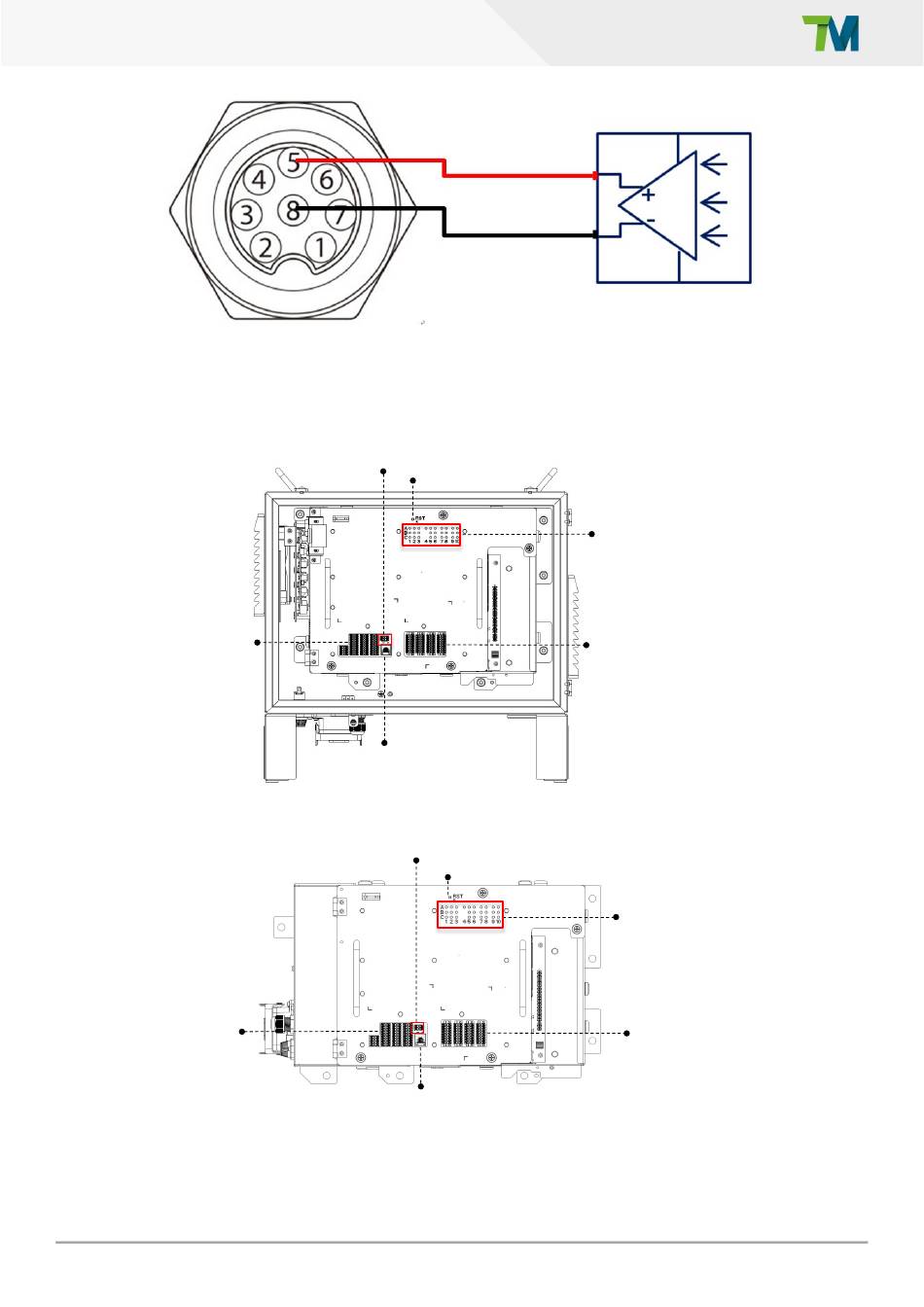

Figure 60: Connecting Tool End Analog Input

5.5 Control Box Interfaces

Power Remote ON/OFF
SSD Reset
Robot Status Display
General I/O Interface
Safety I/O Interface
EtherCat

Figure 61: Front View of the Control Box (AC)

Power Remote ON/OFF
SSD Reset
Robot Status Display
General I/O Interface
Safety I/O Interface
EtherCat

Figure 62: Front View of the Control Box (DC)
