Robot Stick Stand (an official accessory) be used to secure the Robot Stick. The Robot Stick
Stand should be fixed with screws. Always attach the Robot Stick when it is not in use. The
Robot Stick should be placed in a way such that the signal cables are routed to avoid damage
caused by pulling.
DANGER:
1.
2.
3.

4.2.3.2 TM Screen (Optional)

The Robot Stick can be assembled into the TM Screen to create the TM Teach Pendant. Due to this
design, the 6 function buttons of the Robot Stick (Play, Pause, Stop, M/A, +, -) will be hidden by the TM
Screen after the assembly, but the 6 buttons will be generated on the UI.
The installation of the TM Teach Pendant is described as follows:
Hardware Installation Manual: TM25S/TM30S series Hardware version: 5.02
TECHMAN ROBOT INC.
5F., No. 58-2, Huaya 2nd Rd., Guishan Dist., Taoyuan City, 333411 , Taiwan
The control box, cables, power signal cables, and Robot Stick cannot be used when any
of them is in contact with liquids. This may result in personal injury or death.
The control box comes with the IP54 rating, but it is not recommended to use the box in
dusty and humid environments. Pay extra attention to environments with conductive dust
(such as metal particles).
Be noted that the control box can only be placed in the standing posture to meet the IP54
rating.

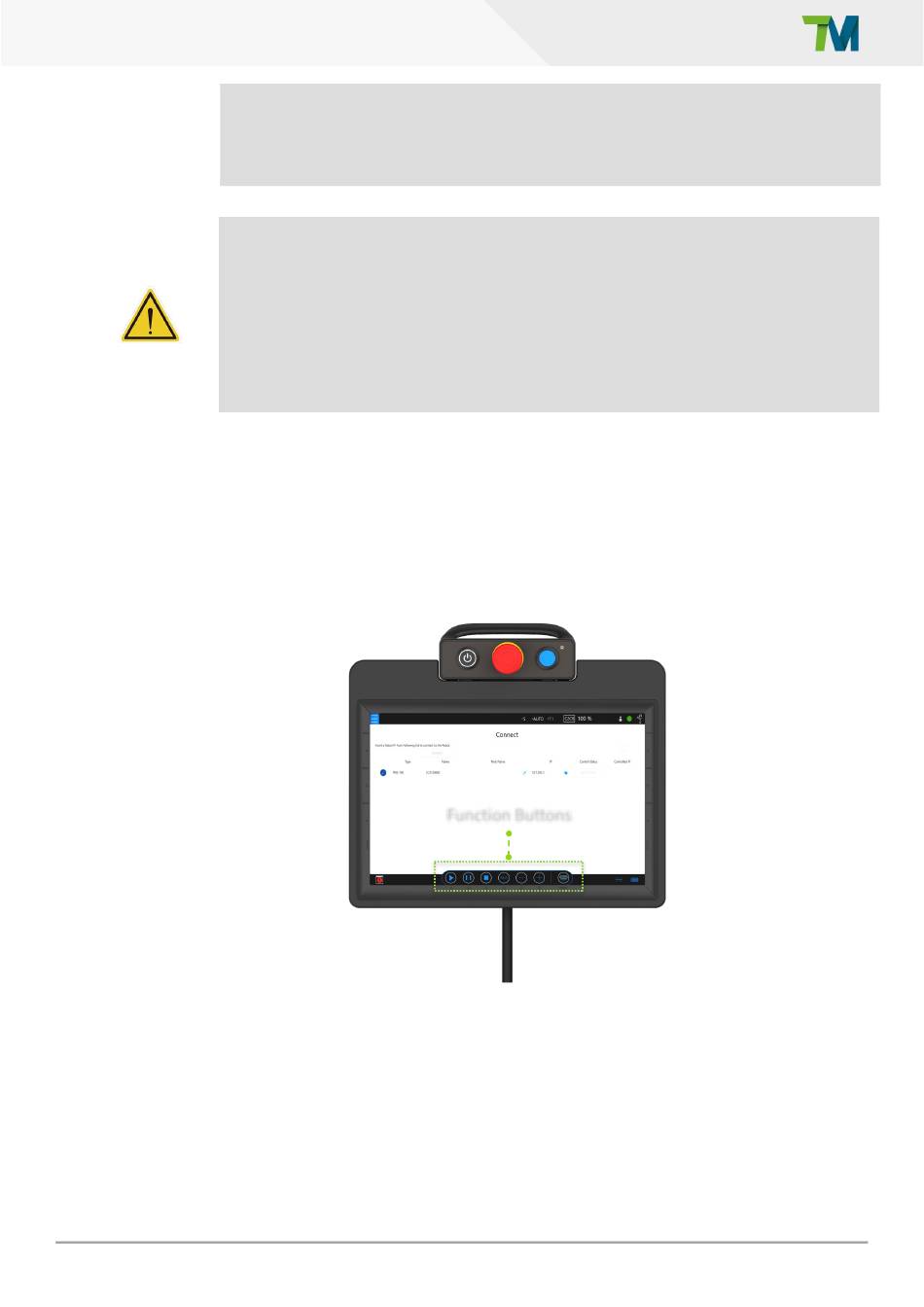

Figure 33: TM Teach Pendant (consisting of the TM Screen and Robot Stick)

Function Buttons
