Table 3: Recommended Power Supply Units For External Brake Release; Figure 3: External Brake Release Setup (Using The Robot Base) - Techman Robot TM25S Series Hardware Installation Manual

Distribution Box
Hardware Installation Manual: TM25S/TM30S series Hardware version: 5.02
TECHMAN ROBOT INC.
5F., No. 58-2, Huaya 2nd Rd., Guishan Dist., Taoyuan City, 333411 , Taiwan

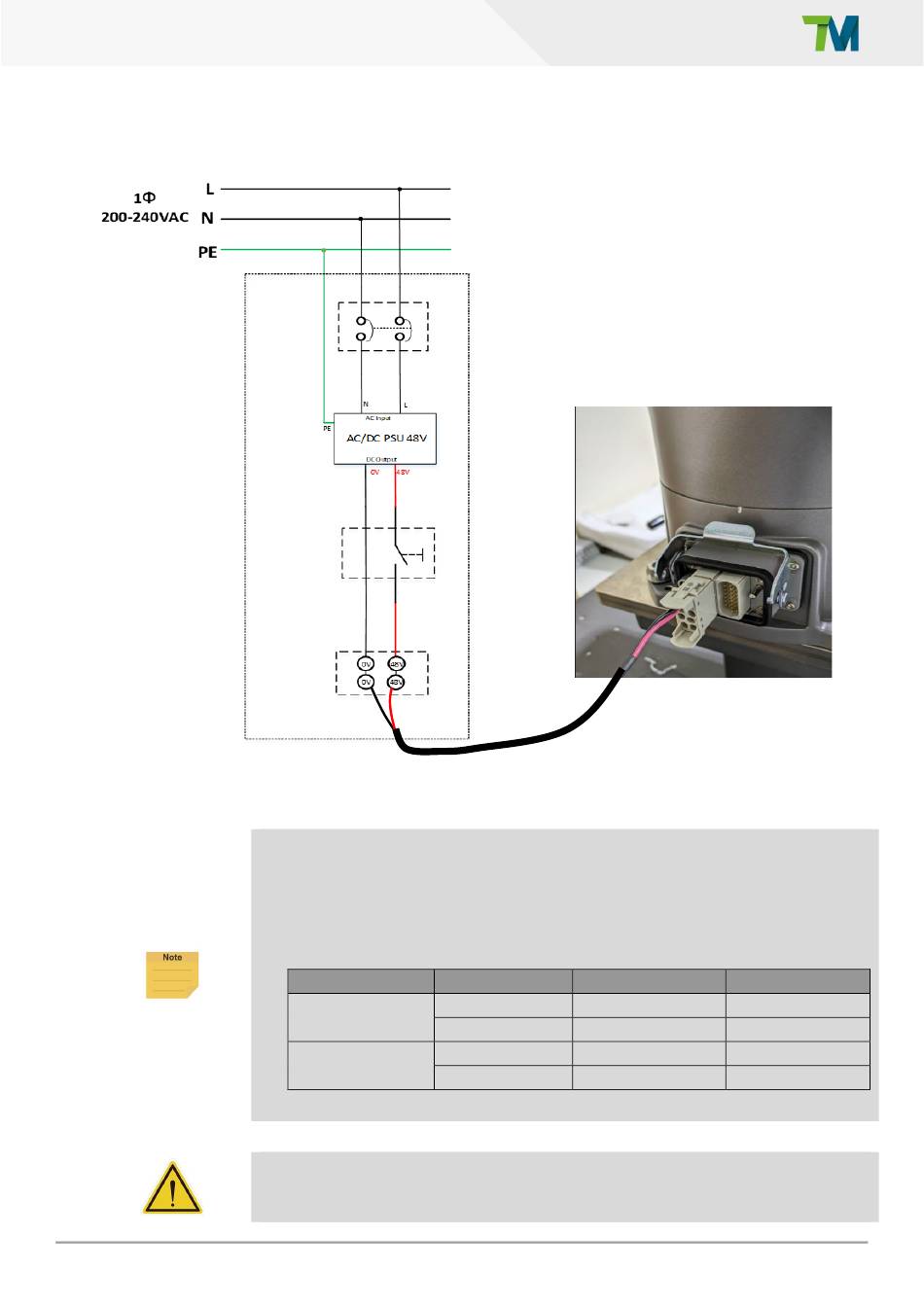

Figure 3: External brake release setup (using the robot base)

NOTE:
 While installing the robot, reserve a switch for an external power supply for force-
releasing the brakes.
 The joints' brake can only be externally released through a power supply of 48V DC
and 4A or above. Please use any of the recommended power units listed in Table 3:
Type
DIN Rail
Enclosed

Table 3: Recommended power supply units for external brake release

DANGER:
 There is no force compensation during joint movement without drive power, which
means more force is required to move each joint directly against the motor drive.
Note:
 Remove the robot connector
from the base before plugging
the external brake release
connector.
 The user should set up a
distribution box, power supply,
switch and terminal block. The
distribution box should be
installed in a fixed position.
Vendor Model
MeanWell MW_SDR-240-48
Delta DRL-48V240W1EN
OMRON S8FS-G30048C
MeanWell RSP-320-48
Document version: 1.00
Specs
240W/48V
240W/48V
300W/48V
320W/48V
