Peel-Off (Self-Strip)

EasyCoder PM4i Printer User's Guide (Fingerprint Version)

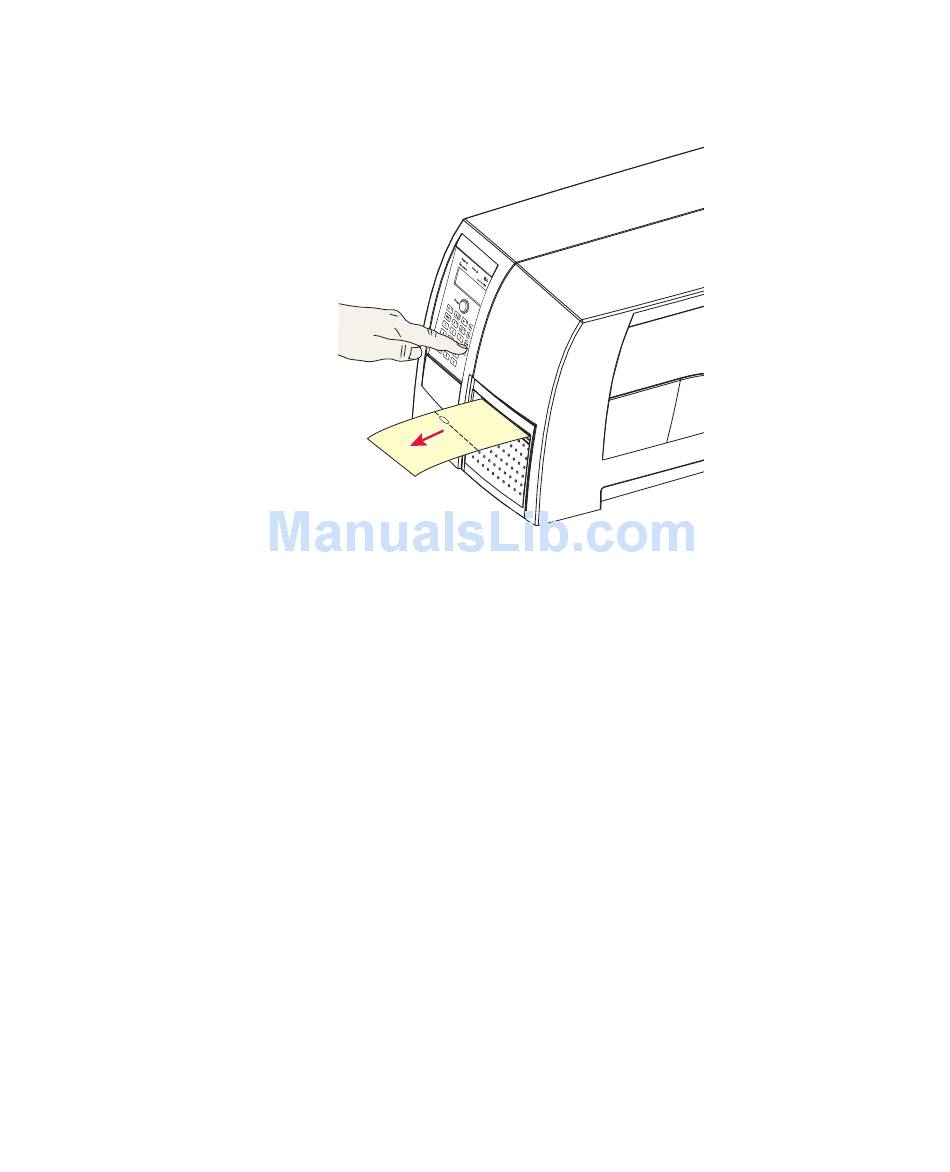

11 Press the Feed button to advance the media and adjust the
media feed. Tear off the media by pulling it downwards.
The EasyCoder PM4i can print on labels, tickets, tags, and
continuous stock in various forms. This section describes the case
when self-adhesive labels are separated from the liner
immediately after printing, which requires optional integral self-
strip unit with liner takeup. This is also known as "Self-strip"
operation.
Peel-off operation cannot be performed when an optional fanfold
guide fitted.
Use the Feed key when loading the same type of media. When
switching to a new type of media, or if the printer does not feed
out the media properly, simultaneously press the Shift and Feed
keys to perform a "testfeed."
Peel-off can only be used for:
• Self-adhesive labels with liner
Chapter 4 — Media Load
27
