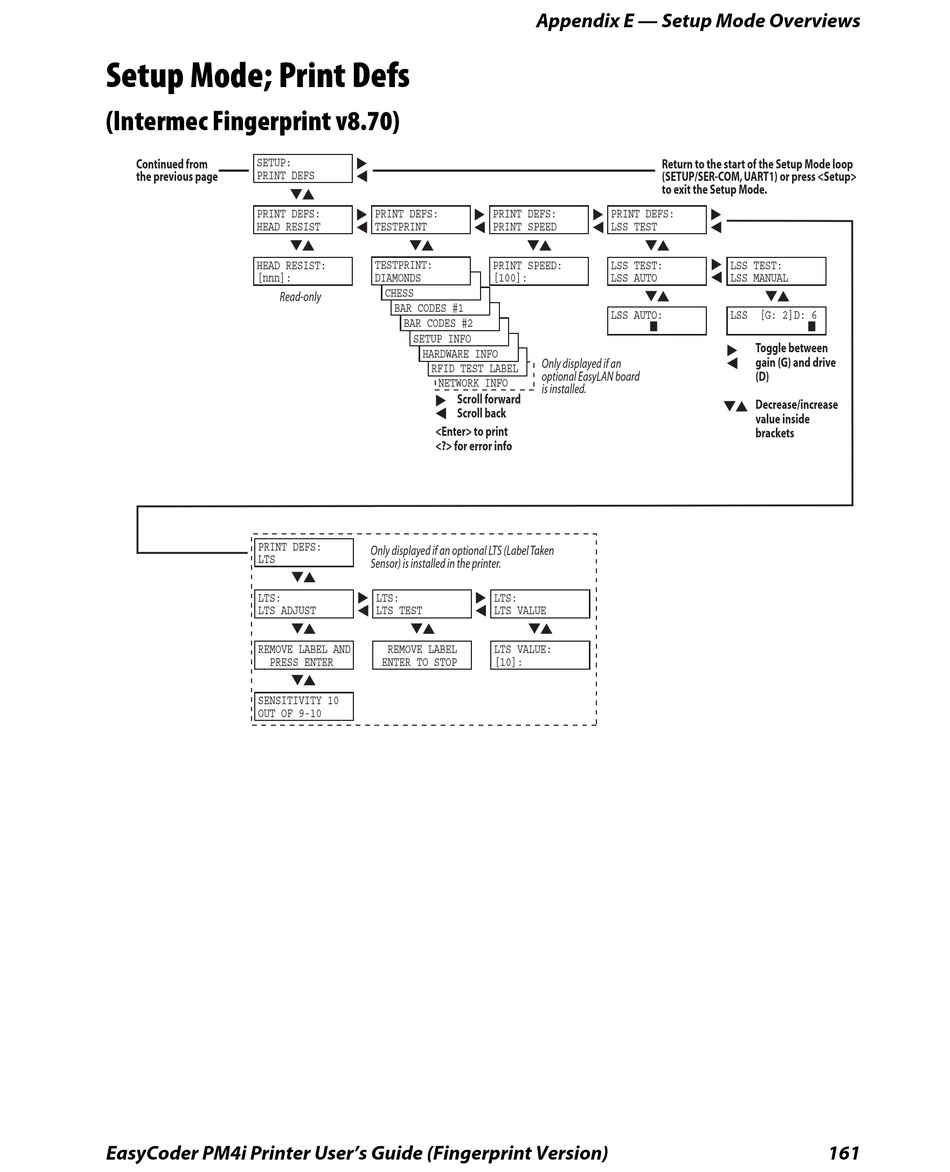

Setup Mode; Print Defs

(Intermec Fingerprint v8.70)

SETUP:
Continued from
PRINT DEFS
the previous page
PRINT DEFS:
HEAD RESIST
HEAD RESIST:
[nnn]:
Read-only
PRINT DEFS:
LTS
LTS:
LTS ADJUST
REMOVE LABEL AND
PRESS ENTER
SENSITIVITY 10
OUT OF 9-10
EasyCoder PM4i Printer User's Guide (Fingerprint Version)
Appendix E — Setup Mode Overviews
PRINT DEFS: PRINT DEFS:
TESTPRINT PRINT SPEED
TESTPRINT: PRINT SPEED:
DIAMONDS
[100]:
TESTPRINT:
CHESS
TESTPRINT:
BAR CODES #1
TESTPRINT:
BAR CODES #2
TESTPRINT:
SETUP INFO
TESTPRINT:
HARDWARE INFO
TESTPRINT:
Only displayed if an
RFID TEST LABEL
TESTPRINT:
optional EasyLAN board
NETWORK INFO
is installed.
Scroll forward
Scroll back
<Enter> to print
<?> for error info
Only displayed if an optional LTS (Label Taken
Sensor) is installed in the printer.
LTS: LTS:
LTS TEST LTS VALUE
REMOVE LABEL LTS VALUE:
ENTER TO STOP [10]:
Return to the start of the Setup Mode loop
(SETUP/SER-COM, UART1) or press <Setup>
to exit the Setup Mode.
PRINT DEFS:
LSS TEST
LSS TEST: LSS TEST:
LSS AUTO LSS MANUAL
LSS AUTO: LSS [G: 2]D: 6
Toggle between
gain (G) and drive
(D)
Decrease/increase
value inside
brackets
