Bar Code Wand Interface

142

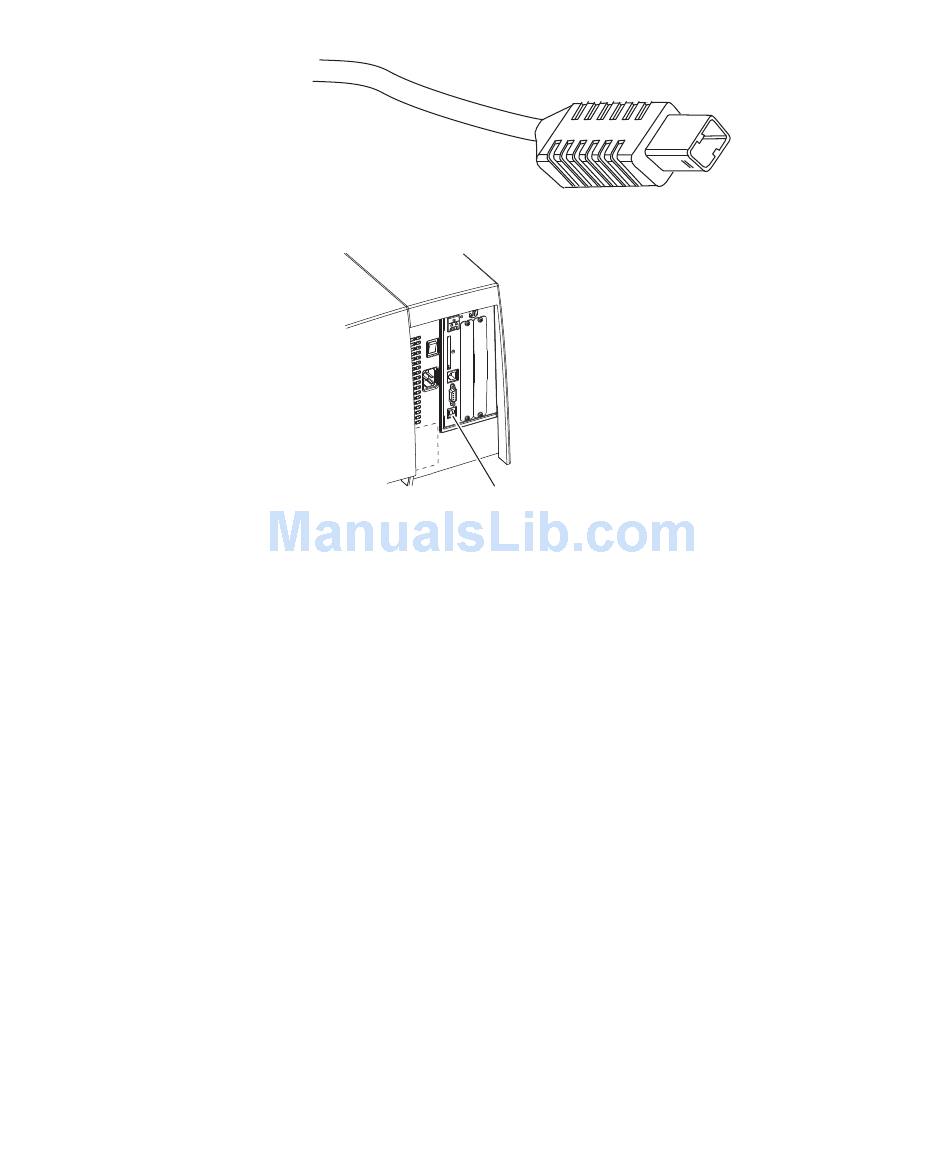

USB Class B connector. Connect to USB receptacle on the printer's rear plate
The printer has a socket on the CPU board for connecting a bar
code wand or scanner. The socket is accessible through a slot in
the printer's rear plate.
If a Code 128 bar code that contains the character FNC3 is read
via this port, the data will be treated as a setup string and will
change the printer's setup accordingly. A setup bar code may
contain a single parameter or a combination of up to 3 or 4 setup
parameters. Refer to the EasySet Bar Code Wand Setup manual for
more information on how to produce setup bar codes.
The printer will acknowledge that a bar code has been
successfully read by emitting a short beep signal.
If no FNC3 character is found in the bar code, the data will be
stored in a buffer which could be read by specifying the "wand:"
device. The buffer is small, so it is recommended to use short bar
code data (max. 16 characters) and read the buffer regularly to
avoid overflow.
EasyCoder PM4i Printer User's Guide (Fingerprint Version)
USB
("usb1:")
