Chapter 4 — Media Load

External Supply (Fanfold)

40
The EasyCoder PM4i can print on labels, tickets, tags, and
continuous stock in various forms. This section describes the case
when the media supply is placed behind the printer, usually in
the form of fanfolded tickets or tags. External supply can be used
with tear-off (straight-through) and cut-off printing.
Although it is possible to simply feed the media through the hole
in the rear part of the side door and directly to the print
mechanism, we strongly recommend using a printer fitted with a
special fanfold guide as illustrated below. Not only does it make
media loading much easier, but it also guides the media with
great accuracy. The fanfold guide can be adjusted for various
media widths down to 40 mm (1.57 in).
When using an external media supply, take care to protect the
media from dust, dirt or other foreign particles, that can impair
the printout quality or cause unnecessary wear to the printhead.
Depending on brand and quality, all direct thermal media are
more or less sensitive to heat, direct sunlight, moisture, oil,
plasticizers, fat, and other substances. Protect the media
accordingly.

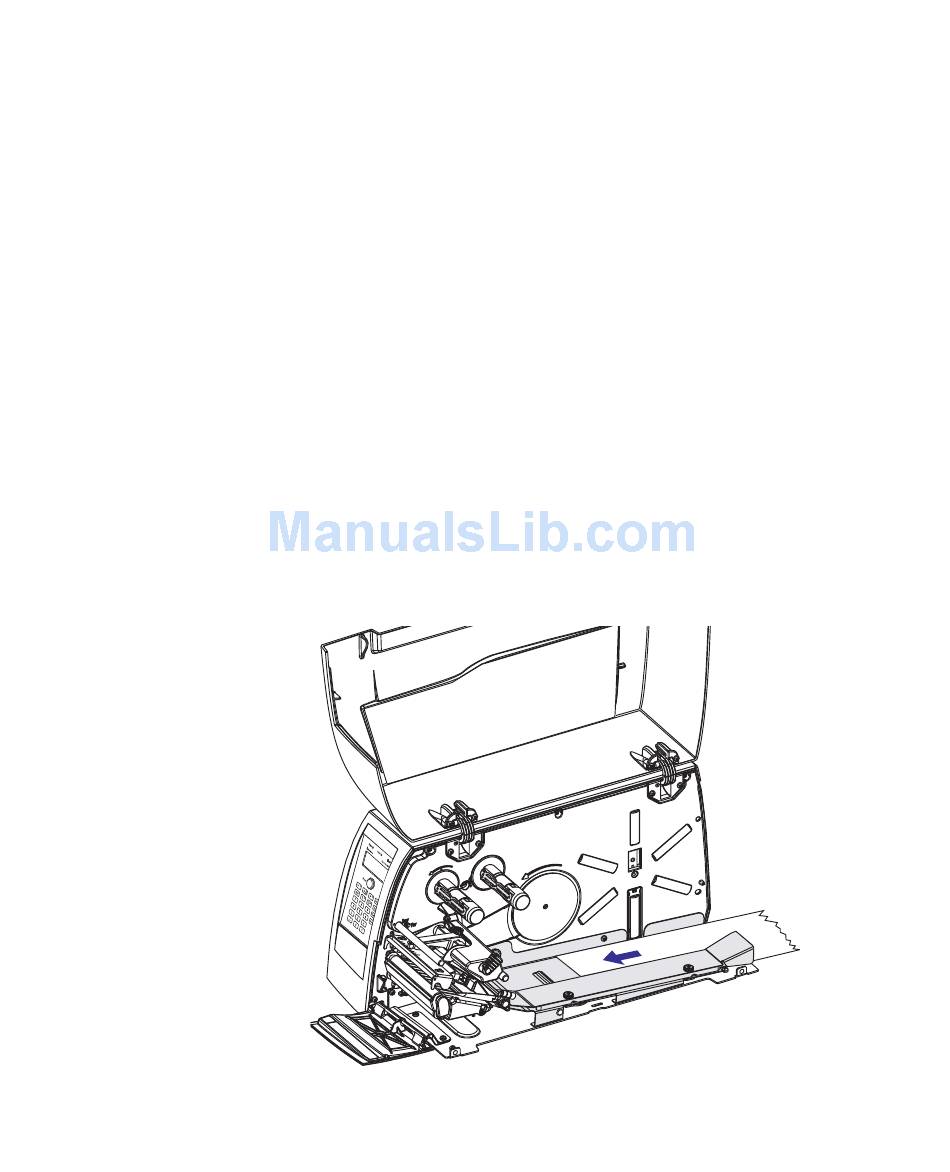

The media path when using a fanfold.
