1.1.3 system board components

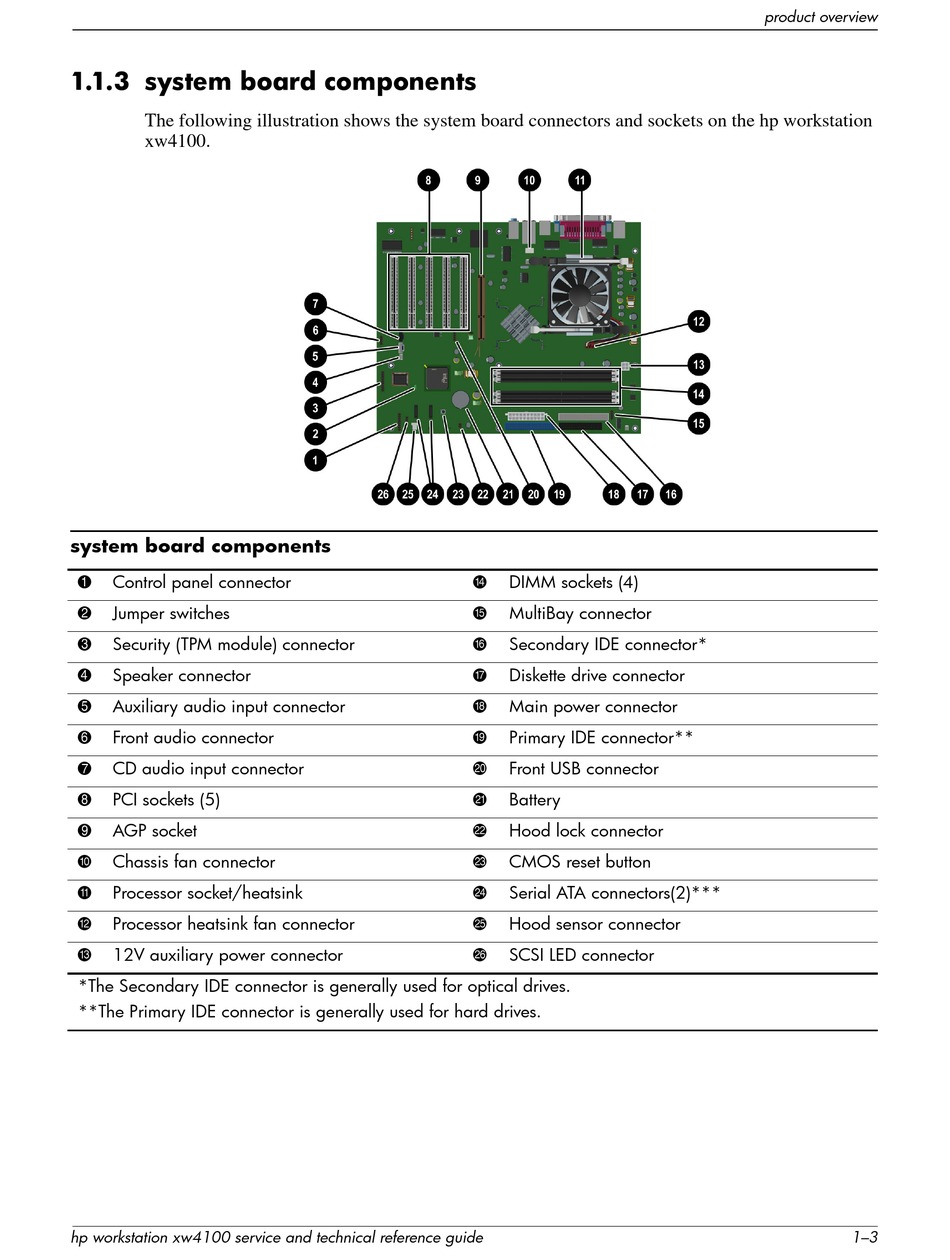

The following illustration shows the system board connectors and sockets on the hp workstation
xw4100.
system board components
Control panel connector
1
Jumper switches
2
Security (TPM module) connector
3
Speaker connector
4
Auxiliary audio input connector
5
Front audio connector
6
CD audio input connector
7
PCI sockets (5)
8
AGP socket
9
Chassis fan connector
-
Processor socket/heatsink
q
Processor heatsink fan connector
w
12V auxiliary power connector
e
*The Secondary IDE connector is generally used for optical drives.
**The Primary IDE connector is generally used for hard drives.
hp workstation xw4100 service and technical reference guide
DIMM sockets (4)
r
MultiBay connector
t
Secondary IDE connector*
y
Diskette drive connector
u
Main power connector
i
Primary IDE connector**
o
Front USB connector
p
Battery
a
Hood lock connector
s
CMOS reset button
d
Serial ATA connectors(2)***
f
Hood sensor connector
g
SCSI LED connector
h
product overview
1–3
