System board components

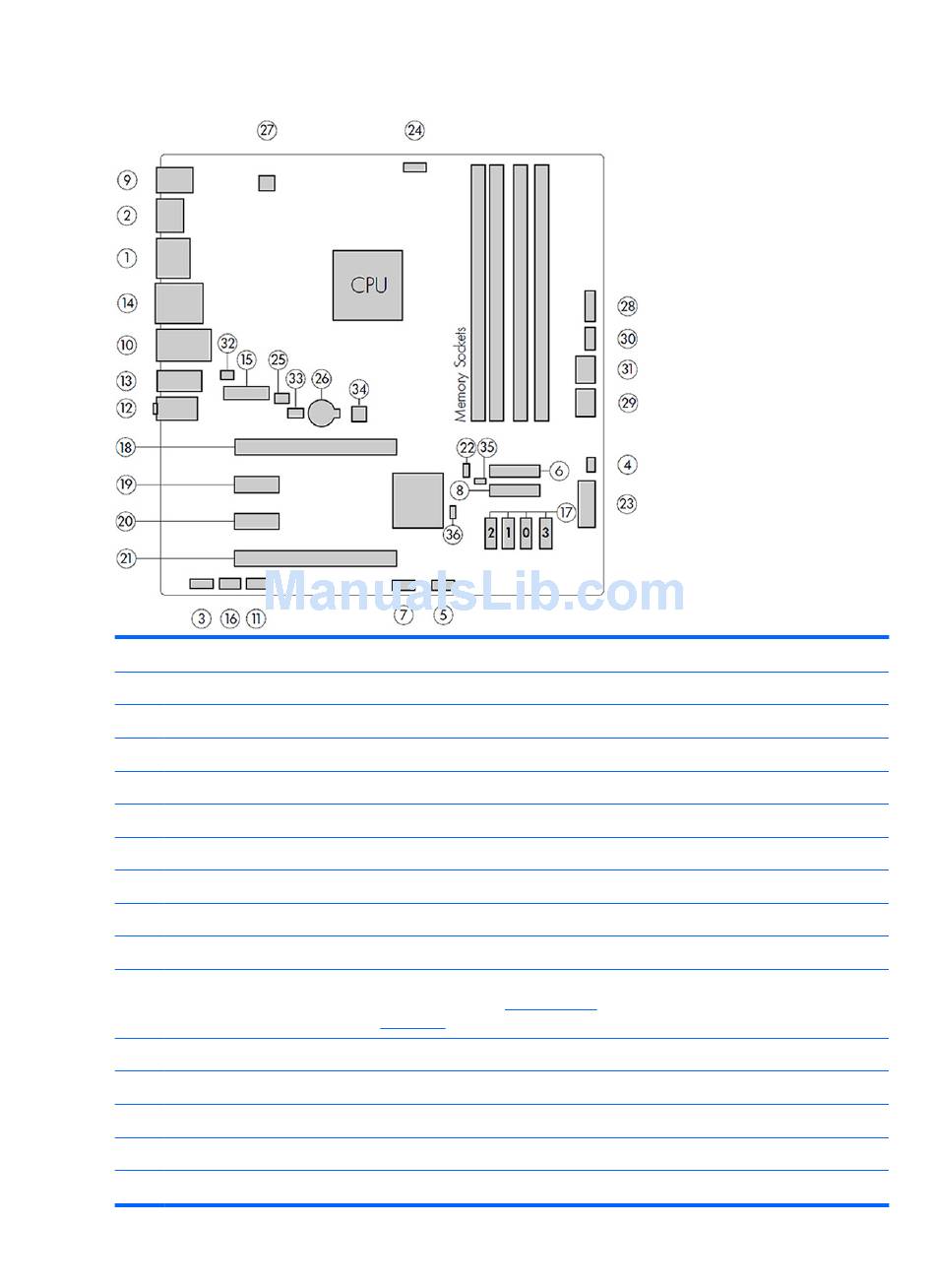

The following illustration and table identify the system board components for the SFF workstation.
1
Dual-Mode DisplayPort
2
DisplayPort
3
Front audio
4
Front speaker
5
Front USB 2.0
6
Front USB 3.0
7
Internal USB 2.0
8
Internal USB 3.0
9
Keyboard / mouse
10
Network / rear USB 3.0
11
Thunderbolt (option)
12
Rear audio
13
Rear USB 3.0
14
Serial
15
Serial (option)
I/O
16
17
18
19
20
21
22
NOTE:
slot information, see
on page 47
23
24
25
SATA
USB 3.1 (option)
SATA
AHCI 6Gb/s
PCI/PCIe
PCIe3 x16
PCIe3 x1
PCIe3 x1
PCIe3 x16 (4)
Z turbo drive LED (E19)
For related expansion card
Expansion slots
M.2
PCIe3 x4
Cooling
Processor fan
Rear fan
Power
26
Battery
27
Processor power
28
Front power button/LED
29
Main power
30
Power COMM
31
SATA power
Security
32
Chassis solenoid lock
33
Hood sensor
Service
34
Clear CMOS button
35
ME/AMT flash override
36
Password jumper
HP Z240 SFF Workstation components
5
