PneuAlpha2 Simple Application

Setup of the Hour Meter Function Block directly from the

1 ) Allocate the input pin to be used for the function block.

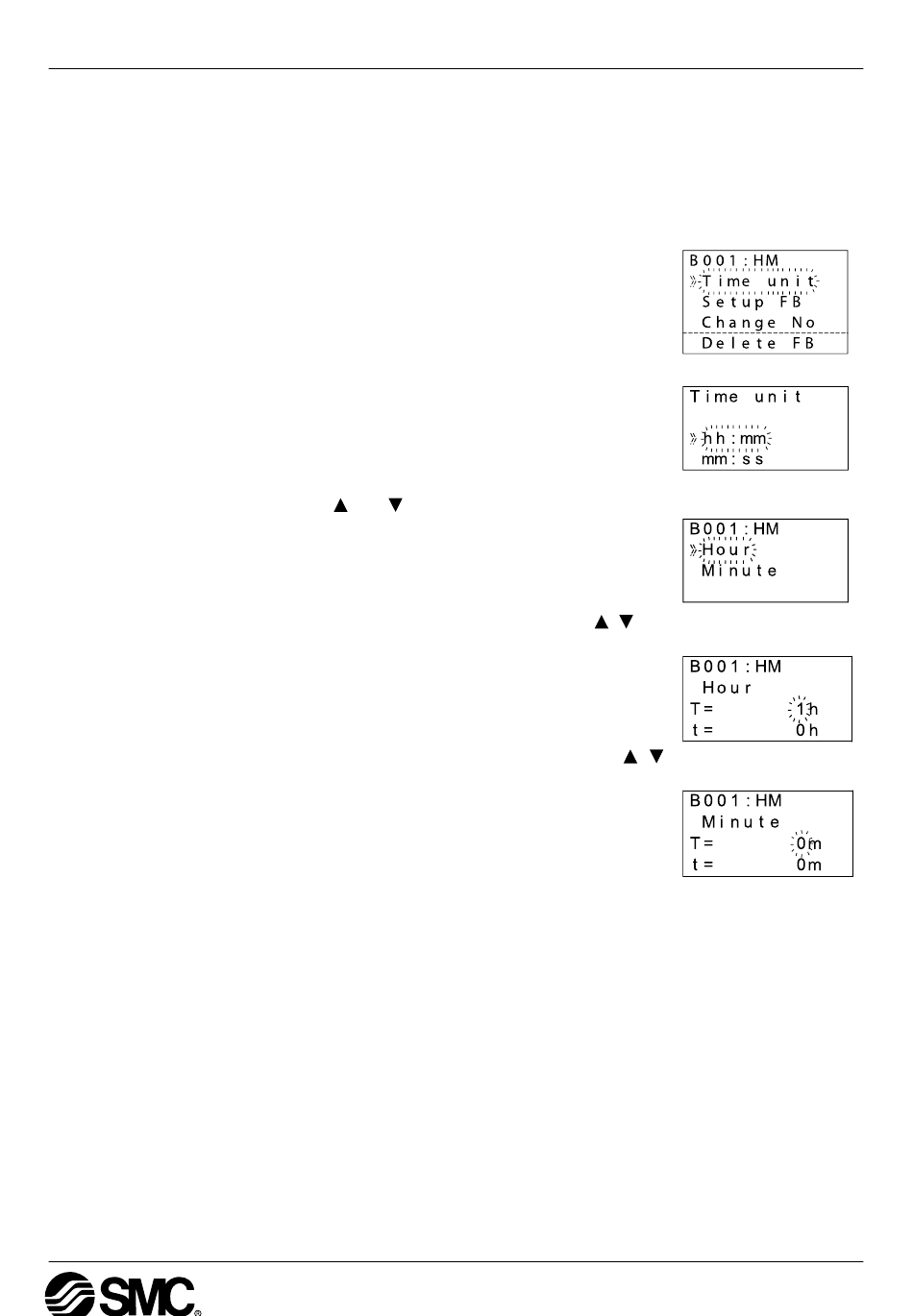

2 ) Press the "OK" key with the cursor in the function block. The function block edit screen is

displayed as shown.

3 ) Press the "OK" key to set the Time unit for the delayed output.

4 ) Press the "OK" key having selected the correct time unit and return to the function block

edit screen. Using the "

5 ) Press the "OK" key with Hour highlighted and using the " ,

hour time for the speciﬁed block.

6 ) Press the "OK" key with Minute highlighted and using the " ,

total minute time for the speciﬁed block.

and

" keys highlight the Setup FB and press the "OK" key.

Function Blocks 6

PneuAlpha2 Series Controller

, + and -" Keys enter the total

, + and -" Keys enter the

6 - 42
