PneuAlpha2 Simple Application

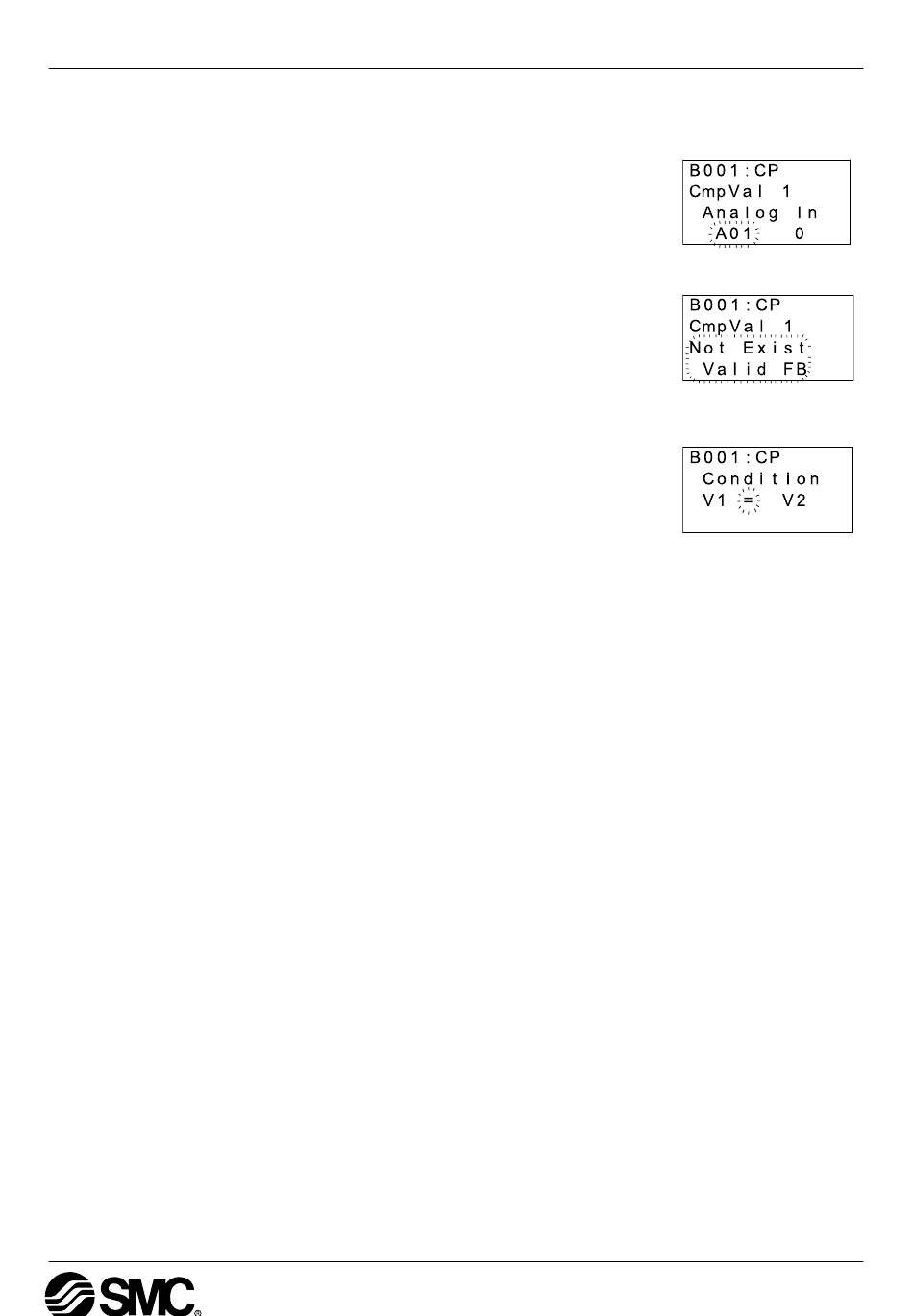

6 ) Or press the "ESC" key to return to the function block data input type menu, select the

Analog In selection and press the "OK" key

7 ) Or press the "ESC" key to return to the function block data input type menu, select the FB

Value selection and press the "OK" key.

8 ) Using either the "OK" key or the "ESC" key depending on the acceptance of the setting.

Press the "OK" key when the Condition is highlighted. Thus, selecting the correct compar-

ator from the range.

9 ) Having set the V1, condition and V2 simultaneously use the "ESC" key to return to the

function block edit screen.

Function Blocks 6
