PneuAlpha2 Simple Application
6.30

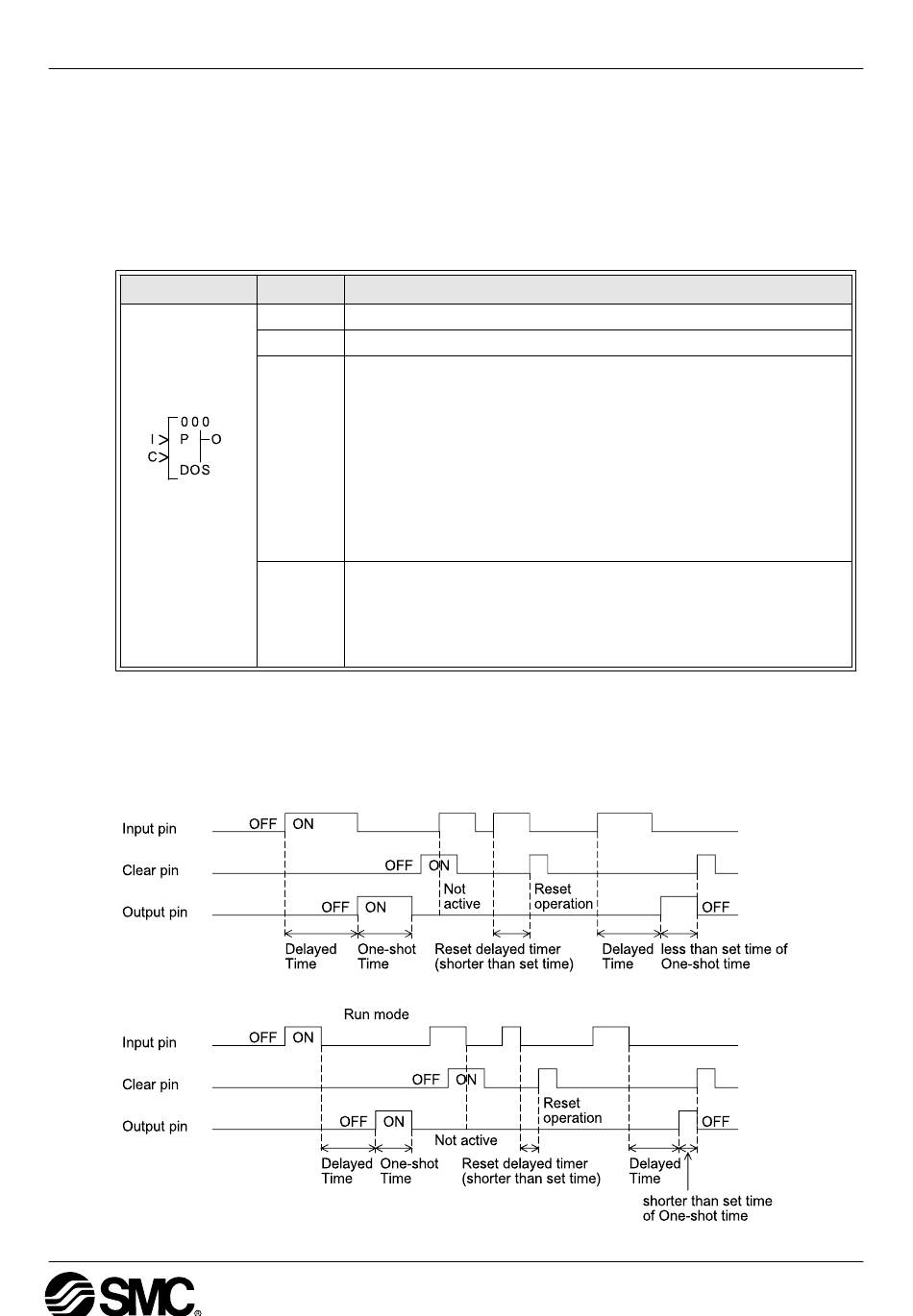

Delayed One Shot Block

This block is equivalent to a combination of the Delay and the One Shot function block. Set an
ON delay for the rising pulse of the Input signal or an OFF delay for the falling pulse. This FB
will process the ON delay time before turning the Output ON for the OneShot pulse time and/or
delay the Output resetting until the OFF delay time has processed.
Table 6.30: Delayed One Shot Function Block
Function
Note: The set time cannot be less than one scan time for the controller; otherwise, the Delayed
One Shot Function Block will not perform its assigned task for the time specified. Users can
monitor the scan time from the
user- program; therefore, caution is needed as and when time units are selected.
1 ) Delayed One-Shot (Delay starts when OFF to ON)
2 ) Delayed One-Shot (Delay starts when ON to OFF.
Set Item
I Input pin for the delayed one shot function block
C Clear pin for the delayed one shot function block
1) Delay Time
a) OFF to ON
b) ON to OFF
2) Delay Time range: 0 to 32767
FB
3) One Shot Time range: 0 to 32767
4) Time units: 10ms, 100ms or 1s (*Note)
5) When the Clear signal is set ON, the current Delay Time, current
One Shot Time will be cleared. The Output will reset OFF.
The following items are available for another function block:
1) Word Output
a) Delay
Output
b) Current Delay
c) One Shot
d) Current One Shot
α
PneuAlpha2 Series Controller. Scan time is dependent on the
Description
Function Blocks 6
6 - 72
