Lets Make a Program 7
PneuAlpha2 Simple Application
7.4

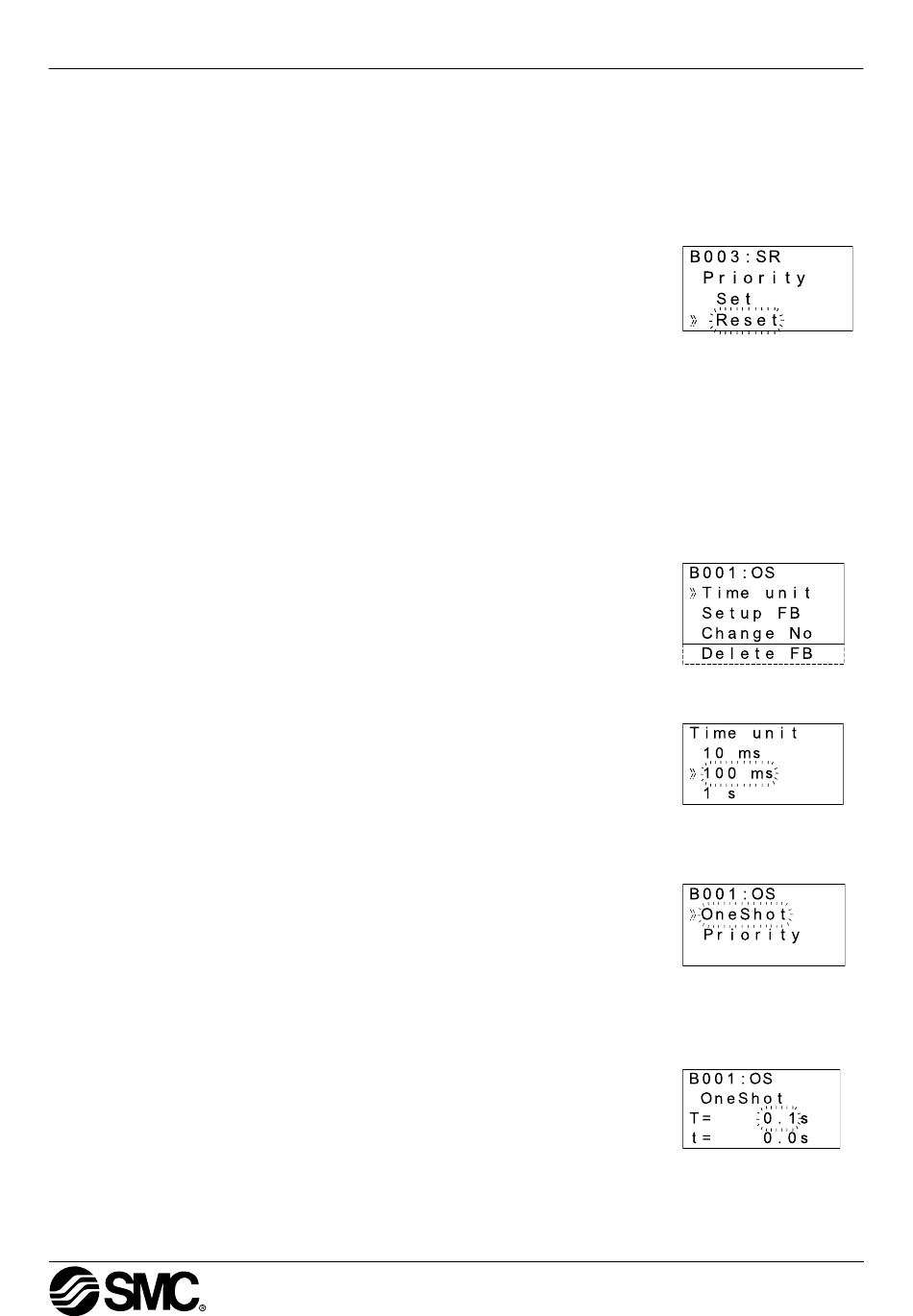

Set up the Function Block Parameters (Section 4.5.1)

The options for the Function Blocks now need to be Set.
Move left until the SR Function Block number (03) is flashing. Press the "OK" to enter the
FB Edit Menu and OK again to enter the Setup FB option. Choose the Reset option and
enter the data into program memory with the "OK" button.
This is the only option in the SR Function Block. Use the "ESC" key to return to the Func-
tion Block Diagram board.
The OR Block, like all the Logic Blocks, does not have any parameters that can or need to
be set.
Proceed to the One Shot Function Block. Use either the Jump command, trace the path
through the Set pin, or simply press the "+" key to scroll through the Function Blocks.
Enter the Setup FB option. (When the One Shot Function Block number (01) is flashing,
press the "OK" key twice).
The One Shot Function Block allows the for three different time increment settings: 10ms,
100ms or 1s.
Press the "OK" key and select the Setup FB option subsequently press the "OK" to enter
function block settings. There are two option screens to be set. Enter the OneShot option
using the "OK" button
The One Shot screen has two timers that can be set. The "T" timer is the Set Time for the
One Shot block Output signal. The t timer is the elapsed time or actual time the OneShot
has been ON. If a value is input for t, the first time the One Shot block is activated it will
begin timing from the input value.
7 - 5
