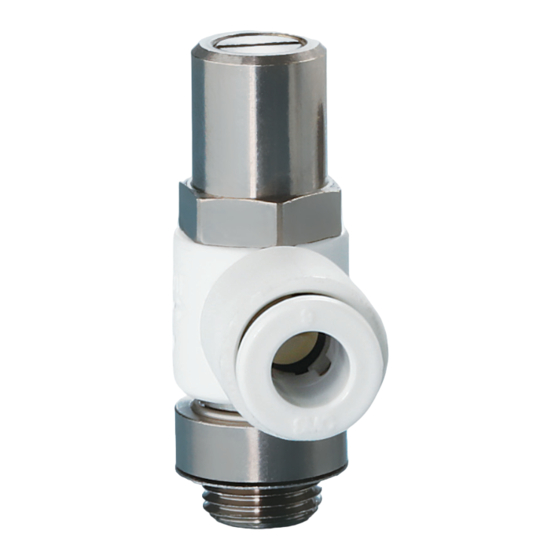

Flame Resistant
Flat Head Screwdriver Adjustable
Speed Controller with
One-touch Fitting
Flame resistant resin
Flat head screwdriver adjustable
Prevent accidental
manual operation with
adjustments made by
flat head screwdriver
Thread type: G thread
AS 2 1F-W2D
/ Elbow Type
Series
New
New
RoHS
CAT.EUS20-250A-UK
Advertisement
Related Manuals for SMC Networks AS 2 1F-W2D Series
Summary of Contents for SMC Networks AS 2 1F-W2D Series
- Page 1 Flame Resistant Flat Head Screwdriver Adjustable Speed Controller with One-touch Fitting / Elbow Type RoHS Flame resistant resin Flat head screwdriver adjustable Prevent accidental manual operation with adjustments made by flat head screwdriver Thread type: G thread AS 2 1F-W2D Series CAT.EUS20-250A-UK...
- Page 2 Flame Resistant Flat Head Screwdriver Adjustable Speed Controller with One-touch Fitting AS 2 1F-W2D Series Model Applicable tubing O.D. Elbow type Port size Ø 6 Ø 8 Ø 10 Ø 12 AS22 1F-G01- W2D G1/8 AS22 1F-G02- W2D G1/4 AS32 1F-G03- W2D G3/8 AS42 1F-G04- W2D G1/2...
- Page 3 Flame Resistant AS 2 1F-W2D Series Flat Head Screwdriver Adjustable Speed Controller with One-touch Fitting Needle Valve/Flow Rate Characteristics Construction AS2201F-G01, AS2211F-G01 AS2201F-G02, AS2211F-G02 Inlet pressure: 0.5 MPa Inlet pressure: 0.5 MPa Number of needle rotations Number of needle rotations AS3201F, AS3211F AS4201F, AS4211F Inlet pressure: 0.5 MPa...
-
Page 4: Related Equipment
AS 2 1F-W2D Series Related Equipment Flame Resistant (Equivalent to UL-94 Standard V-0) Spatter Cover (Applicable tubing: FR double layer/TRB, TRBU FR three layer/TRTU) [mm] Model Applicable tubing O.D. Ø KR-06C-X1807 33.3 19.2 KR-08C-X1807 10.5 34.5 19.3 KR-10C-X1807 12.5 37.2 20.2 KR-12C-X1807 14.5... -
Page 5: Safety Instructions
These safety instructions are intended to prevent hazardous situations and/or equipment Safety Instructions damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC) , and other safety regulations. - Page 6 SMC Corporation (Europe) Austria +43 (0)2262622800 www.smc.at offi ce@smc.at Lithuania +370 5 2308118 www.smclt.lt info@smclt.lt Belgium +32 (0)33551464 www.smc.be info@smc.be Netherlands +31 (0)205318888 www.smc.nl info@smc.nl Bulgaria +359 (0)2807670 www.smc.bg offi ce@smc.bg Norway +47 67129020 www.smc-norge.no post@smc-norge.no Croatia +385 (0)13707288 www.smc.hr offi...
