SMC Networks ASP Series Quick Start Manual

Pilot check valve and speed con-
troller are combined.
Realizes momentary intermediate
stoppage of a cylinder and able to
adjust speed control of it.
Work
piece
Example of drop prevention circuit
Tubing mount direction is 360° free.
Electroless nickel plated is provided
as standard.
Symbol
Made to Order
Lubricant: Vaseline

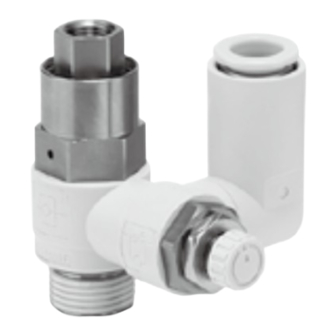

Speed Controller with Pilot Check Valve
with One-touch Fitting
Series
Model
Model
ASP330F-01
ASP430F-02
ASP530F-03
ASP630F-04
ASP430F-F02
ASP530F-F03
ASP630F-F04
ASP330F-N01
ASP430F-N02
ASP530F-N03
ASP630F-N04
Note) Brass parts are all electroless nickel plated.
Specifications
Fluid
Proof pressure
Max. operating pressure
Min. operating pressure
Pilot check valve operating pressure
Ambient and fluid temperature
Applicable tubing material
Note) Use caution regarding the max. operating pressure when soft nylon or polyurethane tubing is used.
(Refer to pages 411 and 412 for details.)
Flow Rate and Sonic Conductance
Tubing O.D.
Controlled
flow
Free flow
Critical
pressure
ratio
Note) Flow rate values are measured at 0.5 MPa and 20°C.
X12
ASP
Port size Pilot port
ø6
R 1/8 M5 x 0.8
R 1/4 Rc 1/8
R 3/8 Rc 1/8
R 1/2 Rc 1/4
R 1/4 G 1/8
R 3/8 G 1/8
R 1/2 G 1/4
NPT 1/8 10-32 UNF
NPT 1/4 NPT 1/8
NPT 3/8 NPT 1/8
NPT 1/2 NPT 1/4
More than 50% the operating pressure (Over 0.1 MPa)
Model ASP330F ASP430F
Metric size
ø6, ø8 ø6
ø1/4"
—
Inch size
ø5/16"
Flow rate
180
330
(L/min(ANR))
Sonic conductance
0.58 1.04
dm /(s⋅bar)
3
Controlled flow 0.15
Free flow 0.25
Applicable tubing O.D.
Metric size Inch size
ø8 ø10 ø12 ø1/4" ø 5/16" ø3/8"
Air
1.5 MPa
1 MPa
0.1 MPa
–5 to 60°C (No freezing)
Nylon, Soft nylon, Polyurethane
ASP530F
ø8 ø8 ø10
ø1/4"
ø5/16"
ø3/8"
ø5/16"
350 600 750
2.32
1.08 1.86
0.15 0.15
0.25 0.25
RoHS
AS
TMH
ASD
AS
ø1/2"
AS-FE
KE
AS-FG
AS-FP
AS-FM
AS-D
AS-T
ASP ASP
ASN
AQ
ASV
AK
VCHC
ASS
ASR
ASQ
ASP630F
ø10 ø12
ø3/8"
—
ø1/2"
1100 1190
3.4 3.68
0.15
0.25
617
