PneuAlpha2 Simple Application

4.8.2

Forcing Outputs ON/OFF

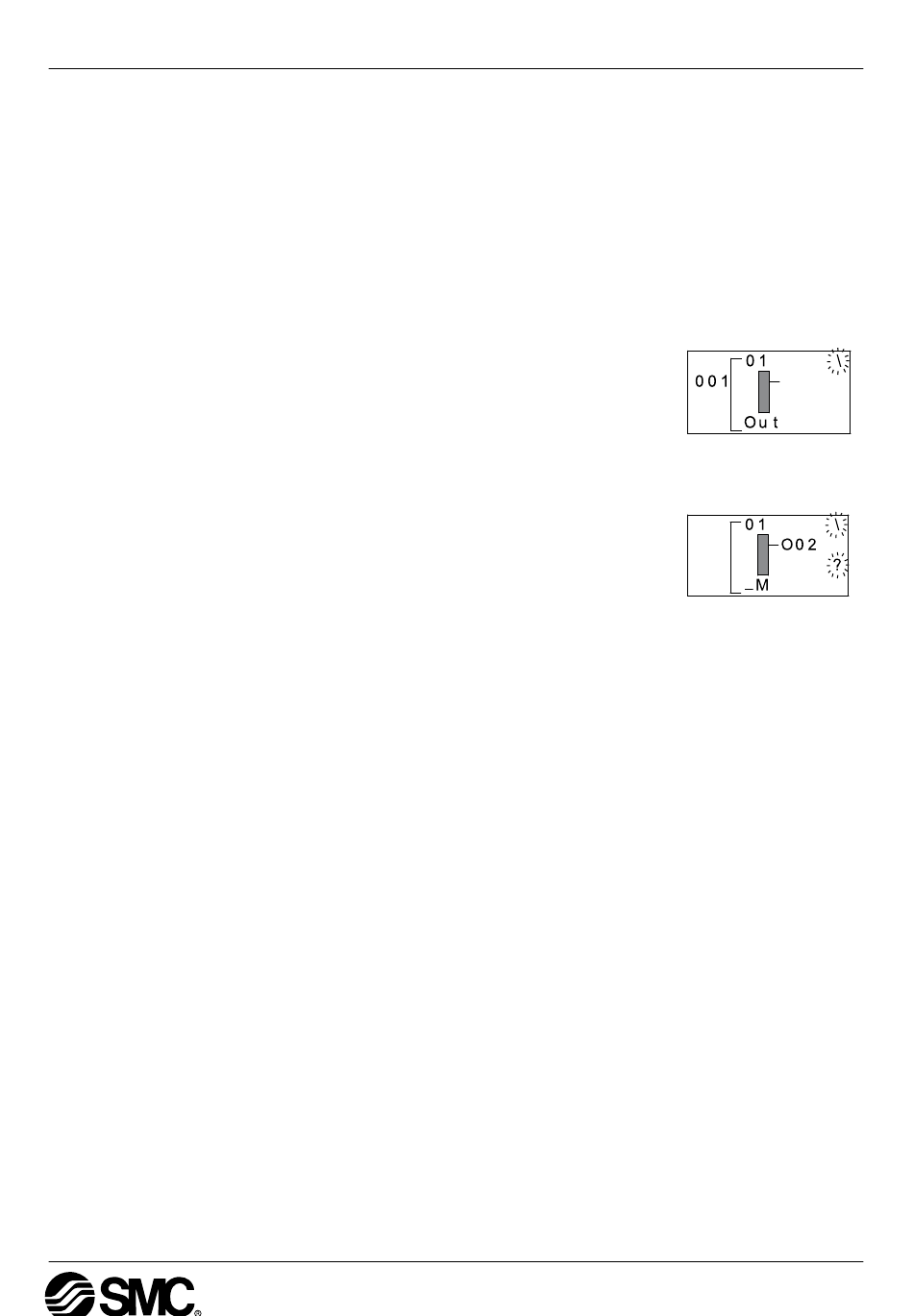

Outputs can be forced ON/OFF if they do not have a direct conﬂict with the program. To force

an Output On, proceed to the position where the Output name and number are ﬂashing and

press the "OK" key. A solid rectangle will appear underneath the block number to signify that

the block is ON.

A solid rectangle will appear underneath the block number to signify that the block is ON. Input

pins will have a smaller solid block next to their arrow to show that they are activated. In the

block at right, the Delay output pins are ON, along with the input and output pins for the system

Output O01.

An example of a block that cannot be forced follows.

Ex. Output O01 is connected to System Bit M01. M01 is constantly ON, therefore Output O01

is constantly ON and cannot be forced OFF.

4.8.3

The user cannot Add or Delete Function Blocks while in the Monitor mode.

Direct Programming 4

4 - 6
