α
PneuAlpha2 Simple Application
7.

Lets Make a Program

Lets create a sample program from beginning to end. Power up the
press any key to go the TopMenu.
7.1

Option Settings

Before starting to program, we can set any desired options from the following list.
Refer to Chapter 3 for option settings
• Language
• Real Time Clock Set
• Others...: Password, Dispass, Summertime Clock, Menu Key and Serial Communica-
tion
For the program below, none of the above options need be set. Use the ProgClear to erase
the current memory contents with "OK". To confirm the memory erase, press "OK" again.
7.2

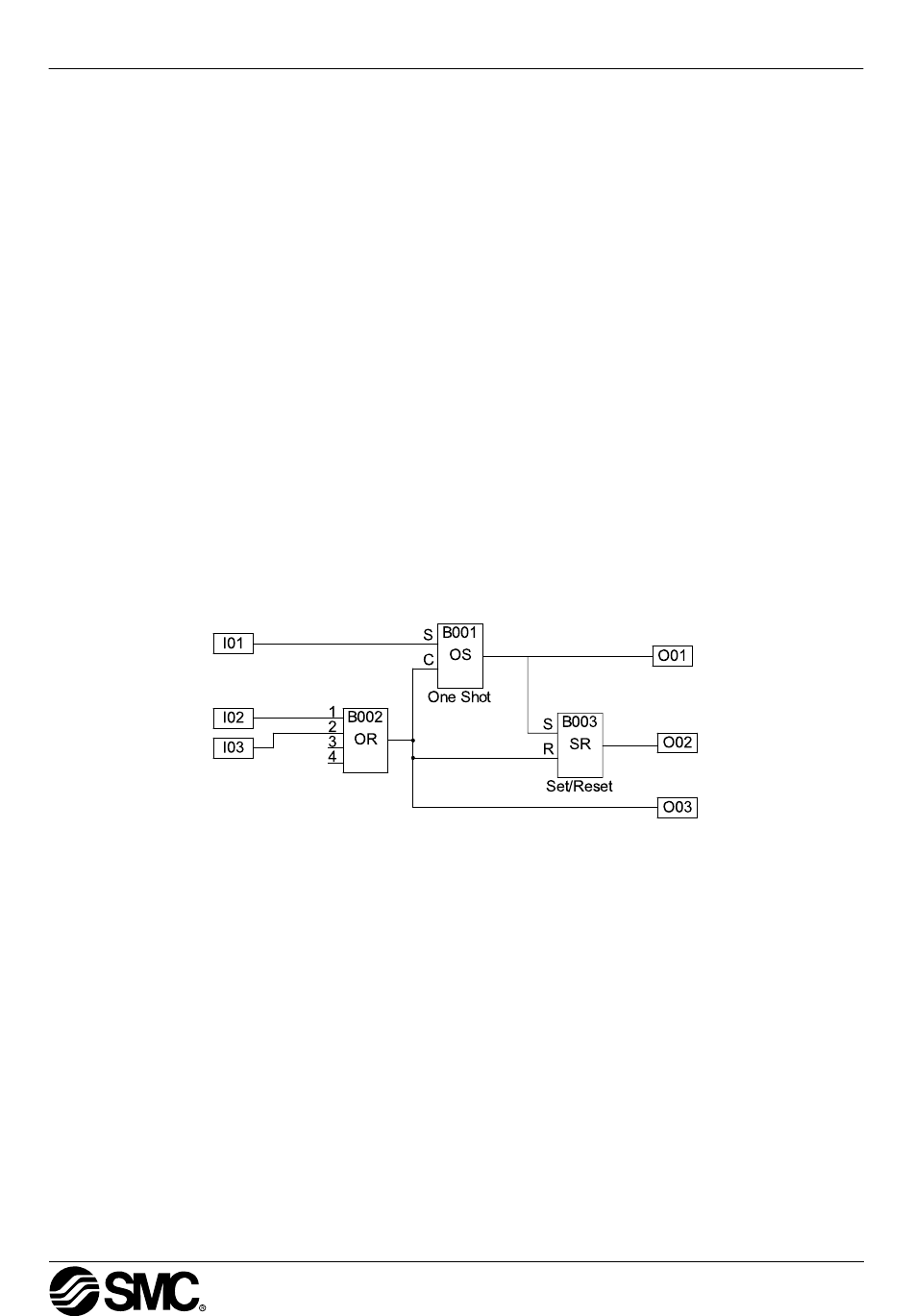

The Function Block Diagram

The system Inputs I01, I02, and I03 are shown on the left of the diagram and the system
Outputs O01, O02, and O03 are shown on the right. The function blocks are numbered in
the order that they are added to the program.
The input pins are shown on the left side of the FB and the output pins are shown on the
right side of the blocks. Note that each input pin can receive only one signal but the output
pins can provide signals to multiple sources.
