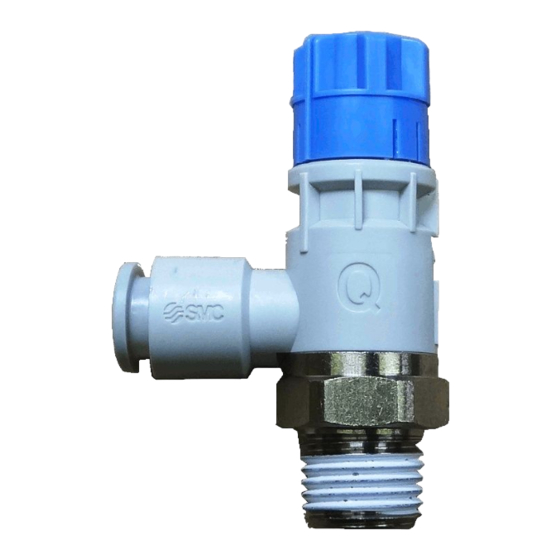

- Page 1 Doc.no.AS*-OMT0060-A PRODUCT NAME Air Saving Speed Controller with Pressure Regulation / Rapid Supply Function MODEL/ Series/ Product Number AS*2R Series AS*2Q Series...
-
Page 2: Table Of Contents
Contents 1. Safety Instructions 2～3 2. Specific Product Precautions 4～7 3. Application 4. Specifications 5. How to Operate 6. Troubleshooting 7. Construction 9～10 - 1 -... -
Page 3: Safety Instructions
Air Saving Speed Controller / with Pressure Regulation / with Rapid Supply Function Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC) , and other safety regulations. - Page 4 Air Saving Speed Controller / with Pressure Regulation / with Rapid Supply Function Safety Instructions Caution We develop, design, and manufacture our products to be used for automatic control equipment, and provide them for peaceful use in manufacturing industries. Use in non-manufacturing industries is not covered. Products we manufacture and sell cannot be used for the purpose of transactions or certification specified in the Measurement Act.
- Page 5 (3) Screw tightening and tightening with proper 2. Precautions tightening torque Tighten the screws to the appropriate torque for Design / Selection mounting the product. Warning (4) Do not use tools such as pliers to rotate the handle. 1. Confirm the specifications. If the knob is excessively rotated, it may cause Do not operate at pressures or temperatures damage.
- Page 6 Mounting Mounting Caution (1) There is a stopper for full close/open turn. Therefore excessive torque applied to the handle may cause damage. Table below shows the maximum allowable torque of the handle. Guideline for Guideline for Handle Table 2 fully opened fully closed position position...
- Page 7 Connecting threads with sealant Precautions for One-Touch Tube Fitting Mounting/ Piping Caution Caution (1) Tighten the screw to the appropriate torque shown in the table below. (1) Tube attachment/detachment for One-touch As a guideline, it should be tightened by 2 to 3 fittings rotations with a tool after tightening it manually.
- Page 8 Air Supply Operating environment Warning Warning (1) Do not use in an environment where (1) Type of fluids corrosive gases, chemicals, sea water, water Use compressed air as the fluid used. or steam are present. (2) When there is a large amount of For materials of the flow control equipment, refer condensate to their construction drawings.
-
Page 9: Application
3. Application This product is designed to control the speed of a pneumatic actuator. 4. Specifications Table 4 AS*2R with pressure AS*2Q with rapid supply Item regulation function Fluid Proof pressure 1.05 MPa Max. operating pressure 0.7 MPa Min. operating pressure 0.3 MPa Set pressure for pressure reduction function 0.2 +/- 0.05 MPa... -
Page 10: Construction
7. Construction AS*2R R thread / NPT thread type G thread type Table 5 Components No. Name Material Remark Body A Body B Brass Electroless nickel plating Handle Needle End cover Brass Electroless nickel plating Spring Steel wire U-seal HNBR O-ring Needle O-ring Y seal... - Page 11 AS*2Q R thread / NPT thread type G thread type Table 6 Components Name Material Remark Body A Body B Brass Electroless nickel plating Handle Needle End cover Brass Electroless nickel plating Spring Steel wire U-seal HNBR O-ring Needle O-ring Y seal Seal for fitting Cassette...
- Page 12 Revision history A: Delete SMC address. ”Safety Instruction” changed. Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 https://www.smcworld.com Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer. © SMC Corporation All Rights Reserved - 11 -...
